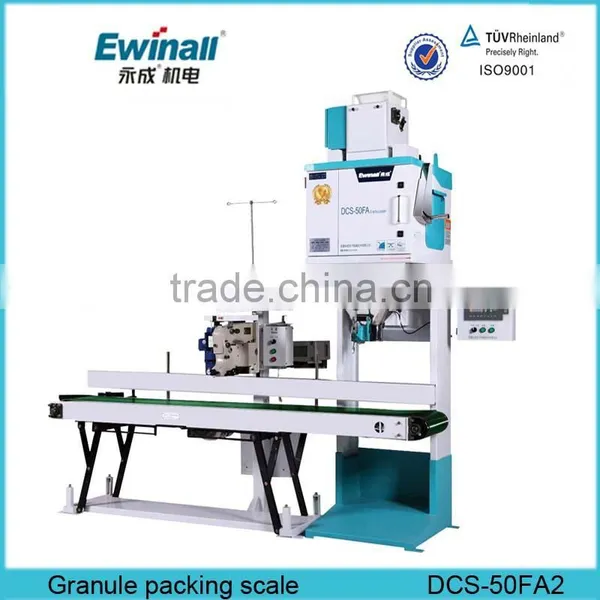

Rice Filling Weighing Bagging Machine

Rice Filling Weighing Bagging Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Chemical, Food, Medical, Food
Packaging Material:
Plastic, Other, Plastic, woven bag,PPbag,PEbag
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Chemical, Food, Medical, Food
Packaging Material Plastic, Other, Plastic, woven bag,PPbag,PEbag
Automatic Grade Other, Semi-Automatic, Semi-Automatic
Driven Type Other, Electric, Electric
Voltage 4N-AC380V 50Hz
Power 1.1KW
Place of Origin Anhui, China
Brand Name Ewinall
Model Number DCS-50FA2
Dimension(L*W*H) 2797*963*2559
Certification ISO9001:2008



Product Information



1. The usage

The rice filling weighing bagging machine is suitable for the quantitative packing of granule,such as rice,bean,grain.

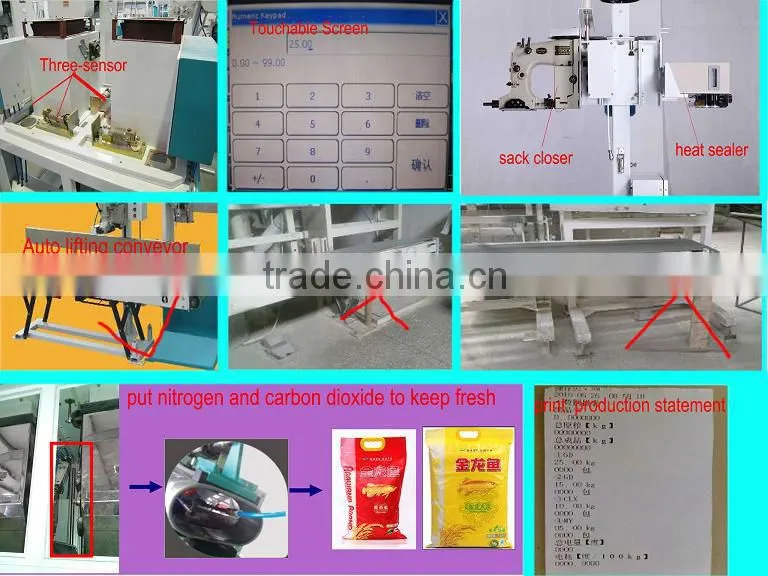

2.Product Feature

  • Touch screen
  • Auto lifting conveyor
  • PLC+weighing controller
  • Pass ISO9001:2008 and TUV
  • Auto sewing and thread cutting
  • Easy installation and operation
  • Three load cell structure to keep more stable
  • All the parts contact with material are stainless steel
  • Can reserve 232/485 interface,good for management
  • Selectable sealing types:sewing machine or heat sealer
  • Can fill with nitrogen or carbon dioxide to have vacuum packing

rice filling weighing bagging machine





3.Technical Parameters



Model

DCS-50FA2

Weigh Range(kg)

5-50

Division value(g)

2

Weighing error

0.1%F.S

Weighing speed(bag/h)

<660

Working environment(power supply)

Relative humidity (RH) 90%,4N-AC380V 50Hz

Power consumption

Air consumption

1.1KW 0.4-0.5Mpa compressed air 0.7m³/h

Dimension(mm)

Length×Width×Height

2797×963×2559





The packing result



Certificate

rice filling weighing bagging machine

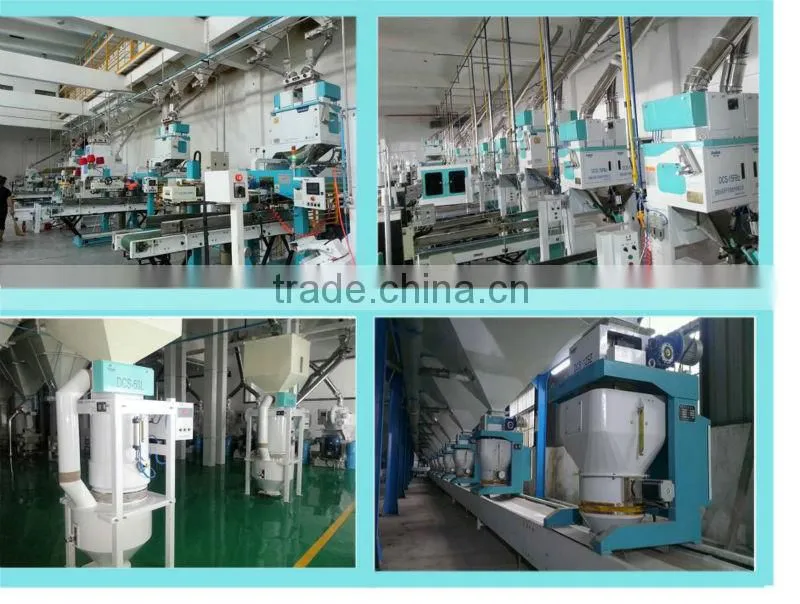

Customer case

 About the company

 Our company is the supplier of COFCO,Yihai Kerry and so on.We have specilied in packing machine for over 10 years.We are a leader in this industry in domestic market.
