Product Details
Place of Origin: | Tianjin, China | Brand Name: | TAIYITO | Model Number: | TDX6820 |
Usage: | Position Sensor | Output: | Digital Sensor |
Packaging Details
pp bag + box + carton for PIR Sensor
Product Description
Specifications

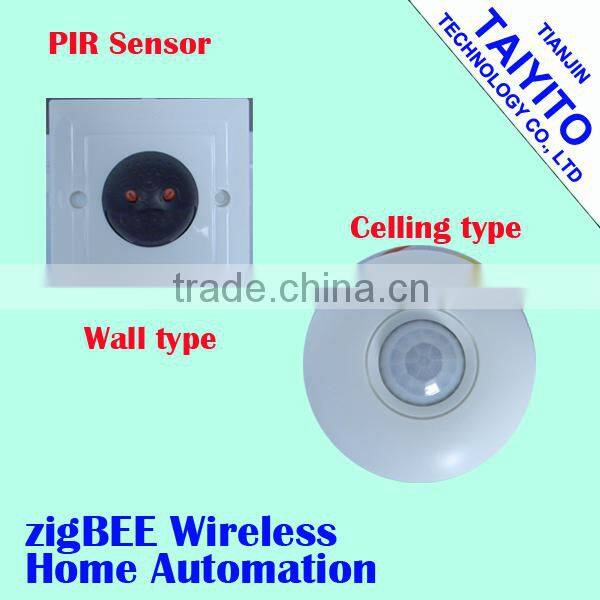

PIR Sensor PIR motion sensor1. light /lamp sensor (celling type or wall type)
2. CE Certificate
3.MOQ: 1 set
4.Taiyito
PIR Sensor PIR motion sensor
1> The PIR motion sensor is one celling sensor.
2> it contains thermoelectric infrared ray position detector.
3> When the sensor was within the scope of activities, it immediately turns on the lights.
4> When the people leave the sensor range or keep stationary, the timer begin to work and delay to the 5> 6> scheduled time, and then the sensor turn off the lights.
7> If there is somebody moving at the scheduled time, in the event of energizing, the sensor will re-time and 8> delay to the scheduled time, then turn off the lights.
Specifications of PIR Sensor PIR motion sensor
Working Voltage | AC220V |
Load Power | ≤500VA |
Load Type | various lamps or appliances |
Induction Angle | ≤100° coning angle |
Light-controlled Adjustment | 0.1~2K Lux. |
Delay Time | 10~300 seconds, it can be ordered by user |
Product Size | Φ90×35mm |
Weight | 100g |
Package Size: | 88*88*52mm/pc |
Usage of PIR Sensor PIR motion sensor
This product is a self-contained. DO NOT COVER IN the PLC system or ZigBee system. The red line accesses the fire wire; the yellow line accesses the load; the white line, as a public zero line, accesses the zero line and the load zero line respectively. Prohibit short circuit of the lamp socket. When you install the switch, the controlled electric lights should not straight shot the switch sensor window. Avoid heat flow from the air conditioning or heating on the interference of the switching. Usually installed on the roof or the wall.
** Warranty & After Sale:
> 1 years warranty
> Products should be sent back in their original condition by buyer due to technical problems.
> Defective products should be returned in 7 days from the date of cargo receipt.
> All shipping costs of return are borne by buyer
> Kindly please contact us ASAP when meet problem on products.
