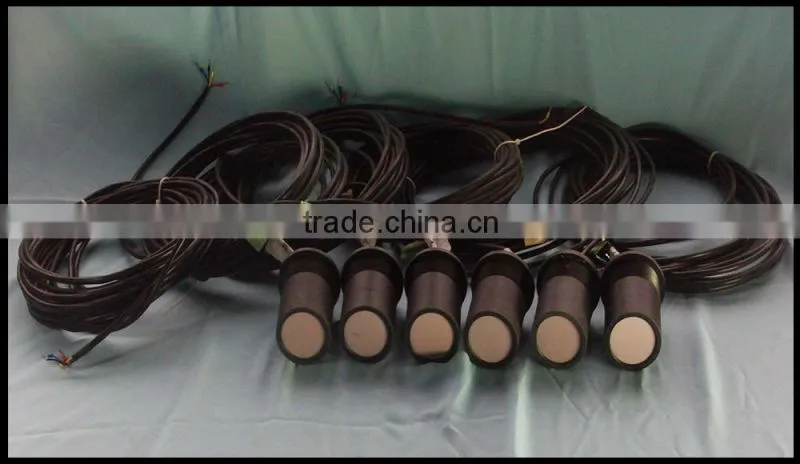

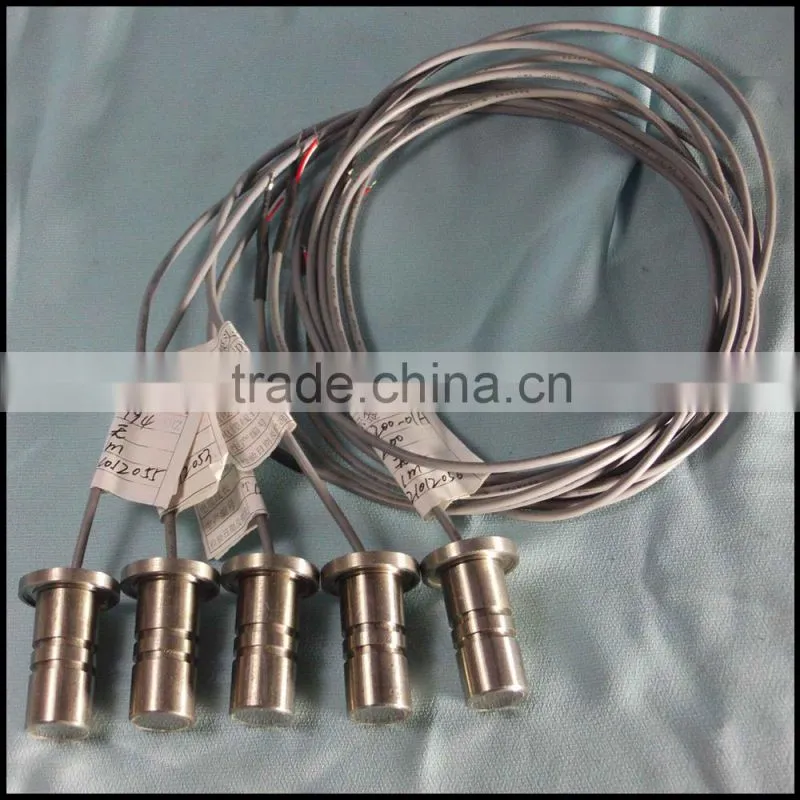

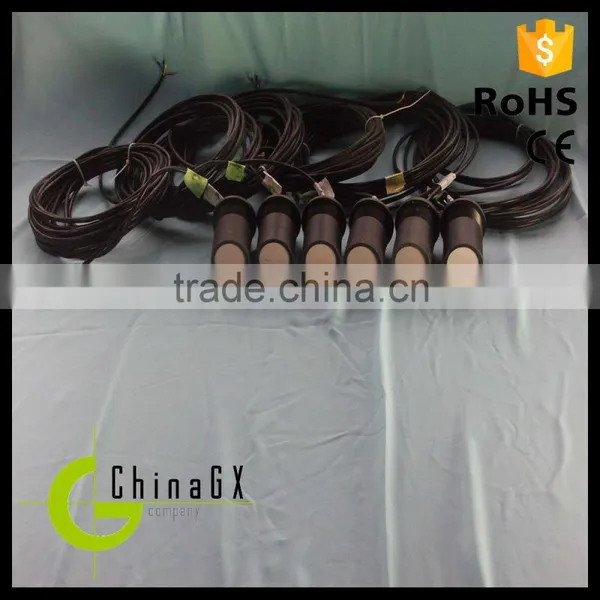

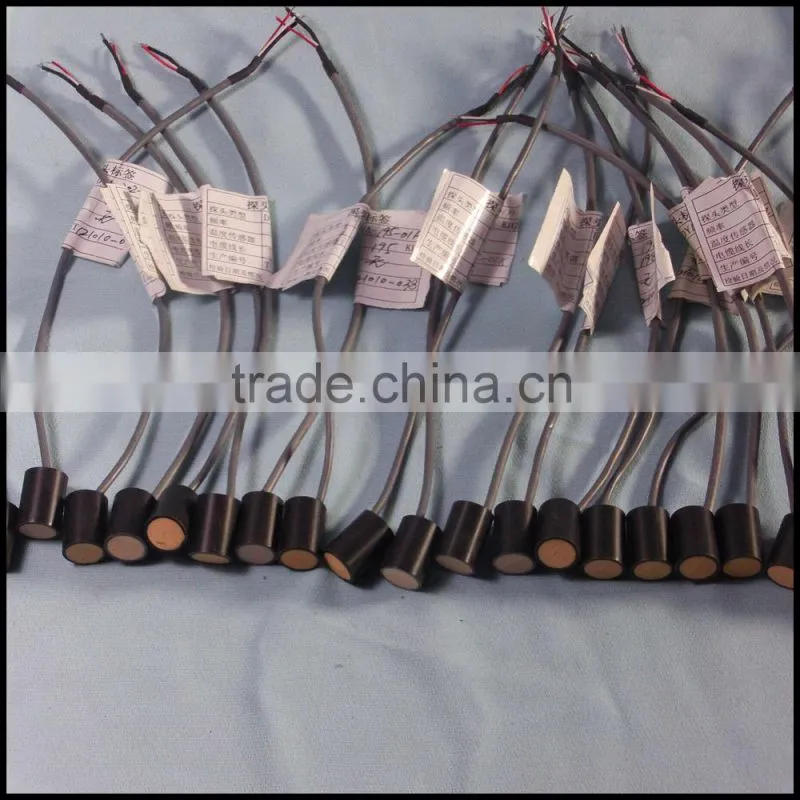

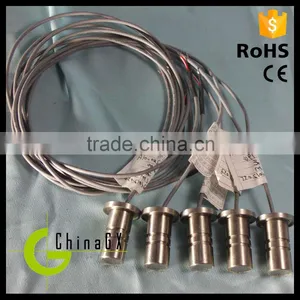

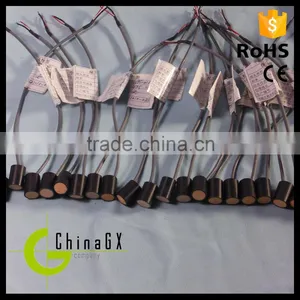

GX-A200 Series 1.5m Range Ultrasonic Piezo Transducer
Description of GX-A200 Series 1.5m range ultrasonic piezo transducer
The ultrasonic transducer is a device that converts the signal of a different kind of energy into a device that requires an ultrasonic or signal or energy. Or, conversely, the ultrasonic signal or energy converted into another form of signal or energy device, widely used in industry, agriculture, transportation, life, medical and military affairs.
The ultrasonic transducer of our company is mainly divided into gas and liquid ultrasonic transducer with a wide range of measurements, applying to weak acid and base, strong acid and strong base, explosion and other environment.
Specifications of GX-A200 Series 1.5m range ultrasonic piezo transducer
Parameter |
GX-A200-015G |
GX-A200-015E |
GX-A200-015W |
Unit |
Frequency |
200±7.5 |
200±7.5 |
200±7.5 |
KHz |
Range |
0.1~1.5 |
0.1~1.5 |
0.1~1.5 |
m |
Min impedance |
360±20% |
360±20% |
1200±20% |
Ω |
Capacitance |
650 |
500 |
470 |
PF |
Driving voltage |
800 |
800 |
800 |
Vpp |
Distance |
0.3 |
0.6 |
0.3 |
m |
Echo amplitude |
27 |
40 |
35 |
mV |
Peak voltage |
<1000 |
<1000 |
<1000 |
VPP |
Working temp. |
-40~80 |
-40~80 |
-40~80 |
°C |
Pressure |
≤3 | 0.3 |
16 | 1.6 |
16 | 1.6 |
Kg|MPa |
Half-power angle @-3dB |
7°±2 |
7°±2 |
11°±2 |
° |
Sharpness angle |
17°±4 |
18°±4 |
23°±4 |
° |
Material |
POM |
TI |
Copper |
|
Application |
Gas meter, Flow meter, Wind speed indicator |
|
||
Protection Grade |
IP68 |
|
||
Dimensions |
14 |
Customizable |
14×10 |
mm |
Weight |
8±5%(25cm) |
20±5% |
14±5%(20cm) |
g |
Connection description |
Integrated interface: Red -> "+", Yellow -> "-", Black -> shielded wire. Default without temperature sensor. |
|||

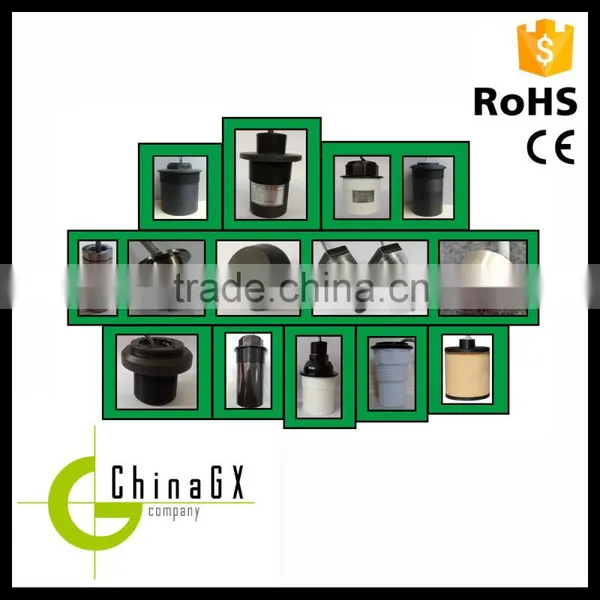

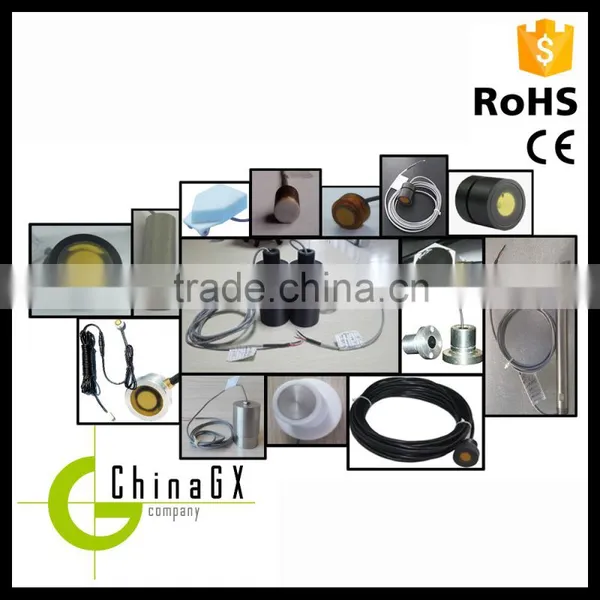

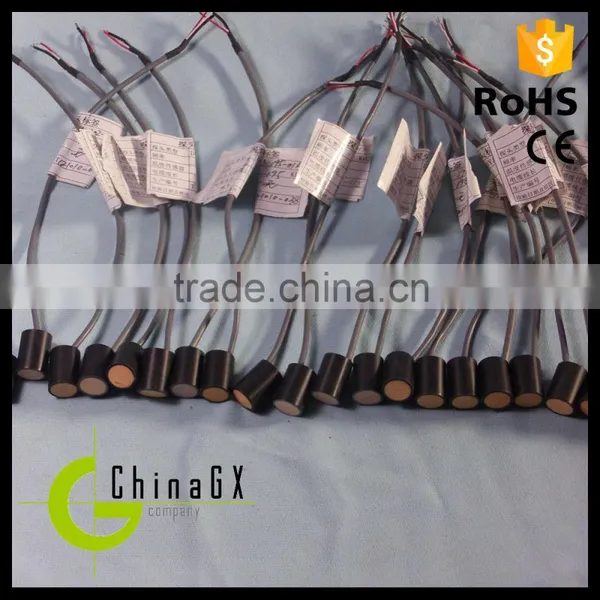

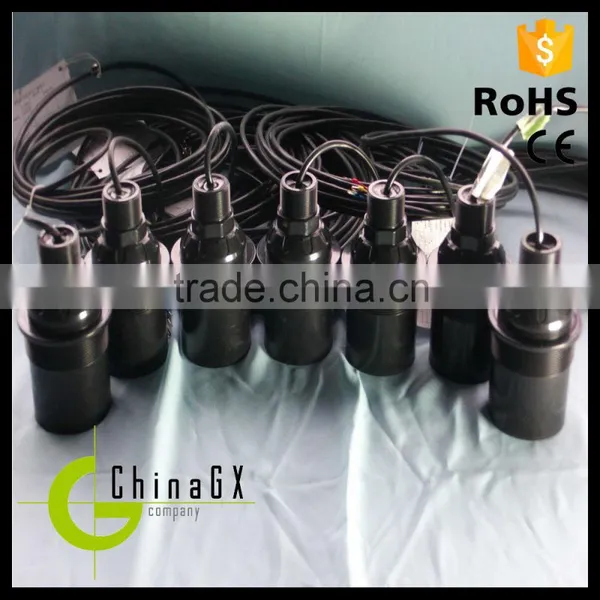

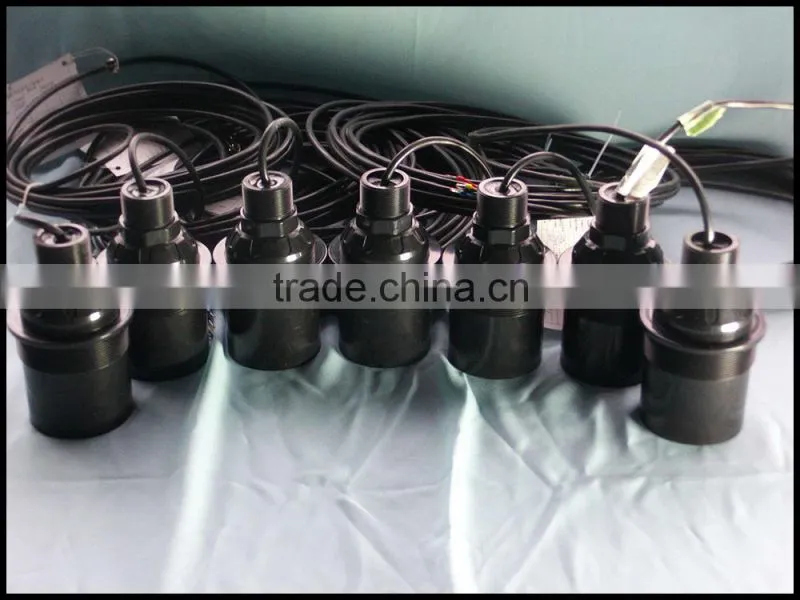

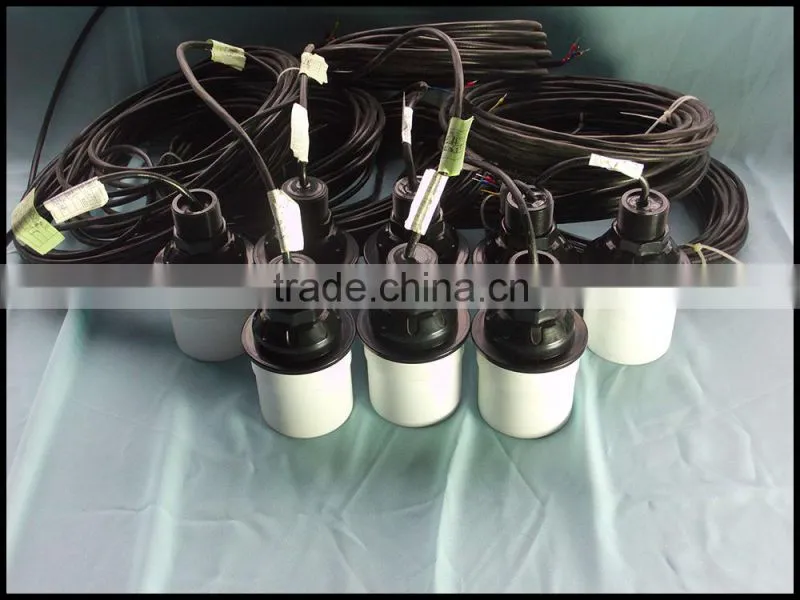

Our product of ultrasonic piezo transducer
GUANGXING pressure and level Instruments has been certified with ISO 9001 (2008)achieved GB/T19001-2008/ISQ9001:2008, GJB 9001B-2009, CE and RoHS, intrinsic safety explosion-proof and isolated safety explosion-proof certification. we developed a lot of sensor products, such as a pressure sensor / transducer / sensor, level transmitter / ultrasonic level meter / ultrasonic flow meter, etc. Our products are widely applied in the fields of chemical industry, petroleum, pharmacy, electricity, municipal works, environmental protection, food and paper-making.
We have the key technology and development center of advanced sensors, and we cooperation with Northwestern Polytechnical University, Xi'an Jiao Tong University and other colleges and universities. Product quality is the life of enterprise, customer demand is our existence!
Our Services
Sensor can be customized by your special request, We can supply technical consulting service for your user.
The quality principle: Quality is the best sales
Payment: We accept T/T, PayPal, Western Union, MoneyGram , Escrow
Shipping:
1. All parts will be shipped out within 1 - 3 working days after confirm the payment
2. DHL / FEDEX / UPS / EMS / TNT / China Post /Aramex
3. We are not responsible for force majeure accidents, delays or other issues, like the shipping service.
After-sales service
We can offer good technical support and good warranty for you after service as professional manufacturer.
Warranty: One year
During the warranty, if the goods after delivery are damaged with error caused only by itself quality problem, the goods can be returned for free repair and maintenance. however, if the goods is damaged with error caused by user’ s man-made and force majeure factor, we will be not responsible for free repair and maintenance.
