Help CenterF7-F9 V Shape Medium Filter
Related Products
-
V- Cell Filter (Rigid Filter)US$ 38.09 - 47.62MOQ: 50 Pieces -
W-bank Compact HEPA FilterUS$ 38.09 - 47.62MOQ: 50 Pieces
-
W-bank Compact Filter HEPA FilterUS$ 38.09 - 47.62MOQ: 50 Pieces
-
Large Holding Capacity PP Media V Bank Hepa FiltersUS$ 38.09 - 47.62MOQ: 50 Pieces
-
V Shape High Capacity Air FilterUS$ 52.39 - 95.23MOQ: 50 Pieces
Specifications
F7-F9 V shape medium filter1 Efficiency:F8-H13
2.Large airlow
3.Frame: plastic
4. Media:PP/fiberglass

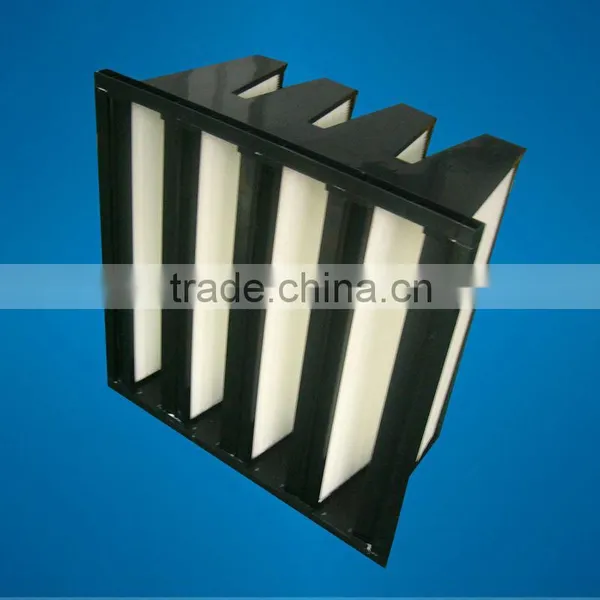

F7-F9 V shape medium filter
- Application: This type of air filter is used in the large air flow systems of medical, foodstuff, hosptial, dust proof room etc, the filter can be used as the end filtering for HEPA systems or front-end filtering for the UH systems.
- filter material: super-fine polypropylene fiber or glass fiber
- outer frame: plastic , galvanization-steel plate
- saralation: hot melt glue
- seal glue: polyurethane
Common applications:
It is applied to large air flow ventilation system, filtration system of Pharmaceutical, food, hospitals, clean room, and so on.
It can be used as terminal-filtration of medium and high efficiency filtration system or pre-filtration of super-efficient filtration system
Features:
It is a kind of deep loading high efficiency filter, suitable for permanent or impermanent airflow system
It's constructed to V-type by multiple mini-pleat media, installed in galvanized box or ABS plastic box
Compared with the common filters, it ideally enlarges the filter area, ensuring low media damage and low energy consumption to save cost in the present installation system
SIZE AND SPECIFICATION:
Model |
Dimensions(mm) WxHxD |
Rated air flow (m³/h) |
Initial resistance (Pa) |
Efficiency (EN1822) |
Frame |
Media |
ZSZV-3300 |
592x592x292 |
3300 |
≤120 (Media: PP)) ≤220 (Media:fiberglass) |
F7-H13 |
Plastic/ galvanized sheet |
PP or Fiberglass |
ZSZV-1600 |
592x292x292 |
1600 |
||||
ZSZV-3000 |
592x490x292 |
3000 |
||||
ZSZV-1600-2 |
592x287x292 |
1600 |
||||
ZSZV-800 |
287x287x292 |
800 |
||||
ZSGV-3600 |
610x610x292 |
3600 |
||||
ZSGV-1800 |
610x305x292 |
1800 |
Offering special requirment for the filters as per our client's
