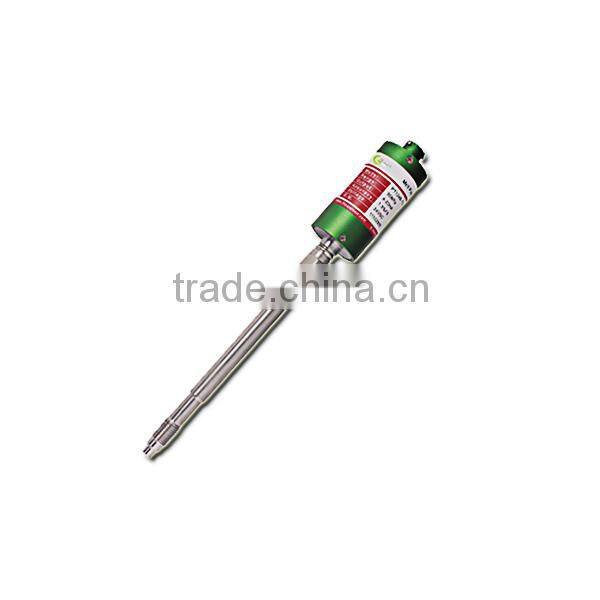

Sanitary rigid stem 2.00mV/V melt pressure transducers transmitter
Description of melt pressure transducers
GX MPTD-5000 series Melt Pressure Transducer(rigid stem & sanitary)can measure the pressure and temperature in one point, which can be widely used in Medicine & Food process equipment. The model 5000T is with thermocouple. Zero & span can be adjustable; with amplified signal can be connected with PLC. It has the advantages of high precision and reliable, good quality, internal 80% calibration.
Features of melt pressure
- Simple installation
- High-standard quality
- Stainless steel welding
- 80% internal calibration
- Excellent stability and repeatability
- Adopt environmental and non-toxic material

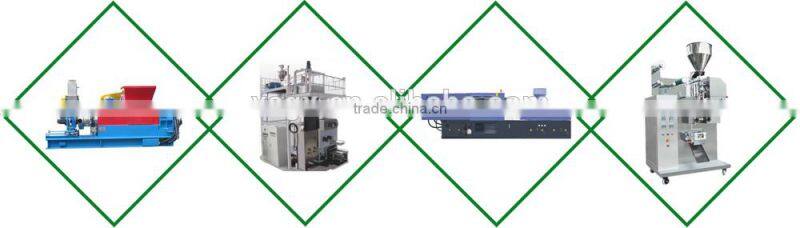

Applications of melt pressure transmitter
- Chemical fiber Equipment
- Other pressure measure and control
- Medicine & Food process equipment, etc
- Plastic and Rubber manufacturing equipment
Specifications of melt pressure transducers transmitter
Parameter | |
Range |
0…3.5MPa to 0…150MPa |
Output |
3.33mV/V, 2.00mV/V |
Accuracy |
±1.0%FS, ±1.5%FS |
Power supply |
10VDC (6~12) VDC |
Repeatability |
±0.2%FS |
Bridge resistance |
350 ohms±10% |
Overload pressure |
1.5×FSO |
Internal calibration |
80%±1.0% |
Insulation Resistance |
200MΩ @ 100Vdc |
Max. Diaphragm Temp |
200°C |
Membrane material |
15-5PH coated stainless steel |
Electric connector |
5PIN, 6PIN |
Process connector |
1/2”-20UNF, M14×1.5, M18×1.5 (Customer design) |
Dimension of melt pressure transducers

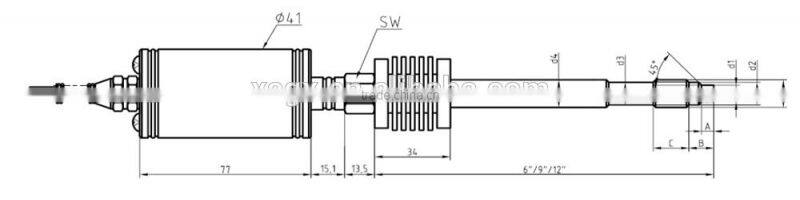

MPTD-5000

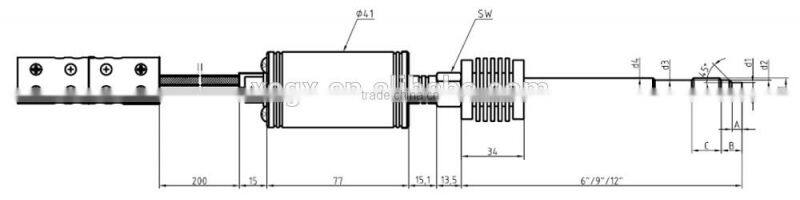

MPTD-5000T
Our Services
Sensor can be customized by your special request, We can supply technical consulting service for your user.
The quality principle: Quality is the best sales
Payment: We accept T/T, PayPal, Western Union, MoneyGram , Escrow
Shipping:
1. All parts will be shipped out within 1 - 3 working days after confirm the payment
2. DHL / FEDEX / UPS / EMS / TNT / China Post /Aramex
3. We are not responsible for force majeure accidents, delays or other issues, like the shipping service.
After-sales service
We can offer good technical support and good warranty for you after service as professional manufacturer.
Warranty: One year
During the warranty, if the goods after delivery are damaged with error caused only by itself quality problem, the goods can be returned for free repair and maintenance. however, if the goods is damaged with error caused by user’ s man-made and force majeure factor, we will be not responsible for free repair and maintenance.
GUANGXING pressure, level and flow Instruments has been certified with ISO 9001 (2008)achieved GB/T19001-2008/ISQ9001:2008, GJB 9001B-2009, CE and RoHS, intrinsic safety explosion-proof and isolated safety explosion-proof certification. we developed a lot of sensor products, such as a pressure sensor / transducer / sensor, level transmitter / ultrasonic level meter / ultrasonic flow meter, etc. Our products are widely applied in the fields of chemical industry, petroleum, pharmacy, electricity, municipal works, environmental protection, food and paper-making.
We have the key technology and development center of advanced sensors, and we cooperation with Northwestern Polytechnical University, Xi'an Jiao Tong University and other colleges and universities. Product quality is the life of enterprise, customer demand is our existence!
