Specifications
95% Extended Surface washable bag Filter for AC1) High dust-contain capacity
2) Class:F5,F6,F7,F8
3) Media: synthetic fiber

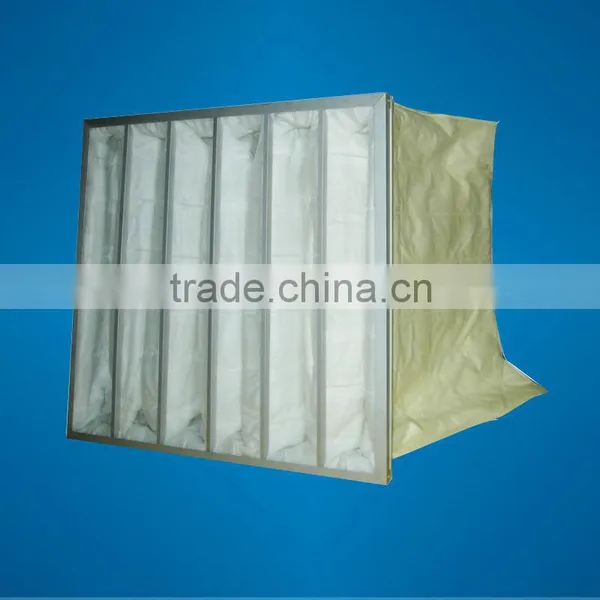

95% Extended Surface washable bag Filter for AC
Washable bag filters are filters used in HVAC applications to remove dust from ambient air. They are commonly used as final filters in commercial applications or as prefilters for HEPA filters in hospitals in the Pharmaceutical Industry.
Washable bag filters were historically produced from glass fiber media, however in recent a years a shift to synthetic media took place.
Glass fiber media is prone to bacterial growth and shedding. On the other hand it has the advantage of increased filtration efficiency over time.
Synthetic media filters are usually electrostatically charged to increase efficiency.
Washable bag filters come with a pocket number of 3-12 depending on the frame size. Frame material can be Metal of Plastic. The most common frame sizes (in mm) are: 595x595,595x490,595x287,287x287mm
Features:
| Product type | 95% Extended Surface washable bag Filter for AC |
| Media | Synthetic fiber(3-layer) / Mircro glass fiber |
| Frame | Galvanized /Aluminum /ABS plastic |
| Class | F5-F9 (EN799) |
| Average Efficiency | 45%; 65%; 85%; 95%; |
| Media color | White, Orange(Green), Pink, Yellow |
| Initial pressure drop | 50-120 pa (0.2-0.48 WG) |
| Final pressure drop | 200-500 pa(0.8-2 WG) |
| Operating temperature | 80 ºC |
Humidity resistance: |
100% |
Application: Washable bag filter is widely used as a secondary filter for central air conditioning or air handling unit.
For use in areas that require a high degree of air cleanliness including hospitals, schools, industrial facilities and office complexes. Pocket filters excel in both dust holding capacity and filter efficiency. Greater dust holding capacity means longer service life and lower operating costs
Standard size and specification:
Model |
Outside dimensions(mm) (WxHxD) |
Rated air flow(m3/h) |
Initial resistance (Pa) |
Efficiency (class) |
Pockets |
Material |
|||
Dust-spot |
EN799 |
Frame |
Media |
||||||
ZS-F5 |
495x295x500 (20”x12”x20”) |
1000 |
50Pa |
40-50% |
F5 (White / Yellow) |
5 |
Aluminum /Galvanized Sheet/ plastic |
Non-woven fabric (synthetic fiber) |
|
495x495x500 (20”x20”x20”) |
1800 |
5 |
|||||||
595x295x500 (24”x12”x20”) |
1300 |
6 |
|||||||
595x595x500 (24"x24"x20") |
2600 |
6 |
|||||||
ZS-F6 |
495x295x500 (20”x12”x20”) |
1000 |
55Pa |
60-70% |
F6 (Orange /Green) |
5 |
|||
495x495x500 (20”x20”x20”) |
1800 |
5 |
|||||||
595x295x500 (24”x12”x20”) |
1300 |
6 |
|||||||
595x595x500 (24"x24"x20") |
2600 |
6 |
|||||||
ZS-F7 |
495x295x500 (20”x12”x20”) |
1000 |
110Pa |
75-85% |
F7(Pinky) |
5 |
|||
495x495x500 (20”x20”x20”) |
1800 |
5 |
|||||||
595x295x500 (24”x12”x20”) |
1300 |
6 |
|||||||
595x595x500 (24"x24"x20") |
2600 |
6 |
|||||||
ZS-F8 |
495x495x500 (20”x20”x20”) |
1800 |
120Pa |
90-95% |
F8(Yellow) |
5 |
|||
595x295x500 (24”x12”x20”) |
1300 |
6 |
|||||||
595x595x500 (24"x24"x20") |
2600 |
6 |
|||||||
