Specifications
1. Superior Quality at Reasonable Price ;
2.One year warranty;
3.we are factory manufacture;
Waete Tire /Cold Tire Retreading Machine/Production LIne/Certificated with ISO,CE,SGS
1.Raw material:Wast tire,waste rubber and waste plastic,etc.
2.Final products:steel wire,fule oil,carbon black, and sync gas,etc.
Steel wires:12%-15% from tires,to be sold or reprocessed.
Flue oil: Widely used in industries such as steel and iron factories, ceramics
or chemical industries or hotels, restaurants etc. as fuel oil, or used
for heavy oil generators to get electricity.
Carbon black: Crude carbon black can be used for construction bricks, or widely
used as industrial carbon black N774, N660, N330 or color carbon
after deep-process.

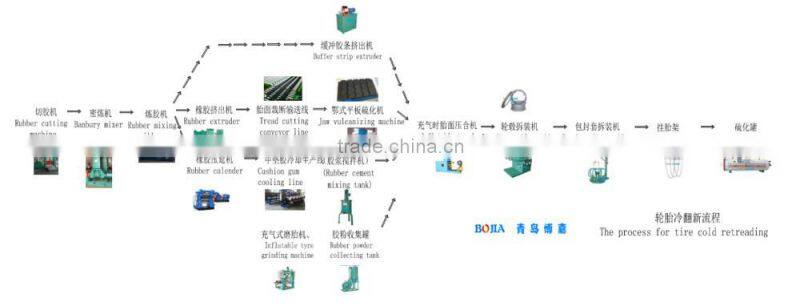

Tire retreading process diagram
Tire retreading process necessary equipment and the main parameter

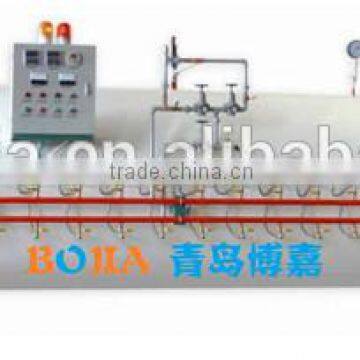

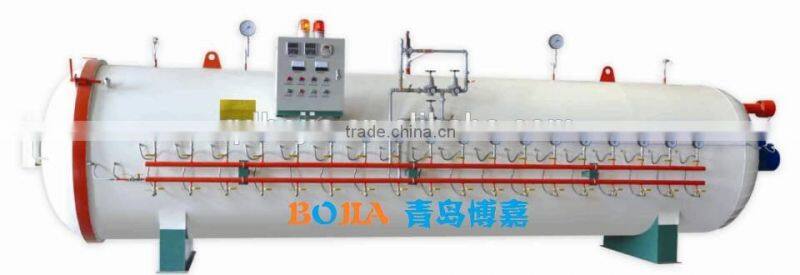

1. Vulcanizing tank
Name |
Size(Diameter*length) |
Quantity of tire |
Vulcanizing tank |
1.5x1.5M |
eight tire |
Function |
Tyre preheating for vulcanization with wind cooling cycle motor |
|
Power |
35kw |
|
Heating way |
Electricity heating, guiding oil heating, steam heating |
|
Main parts |
Low voltage electrical control system:Zhengtai |
|

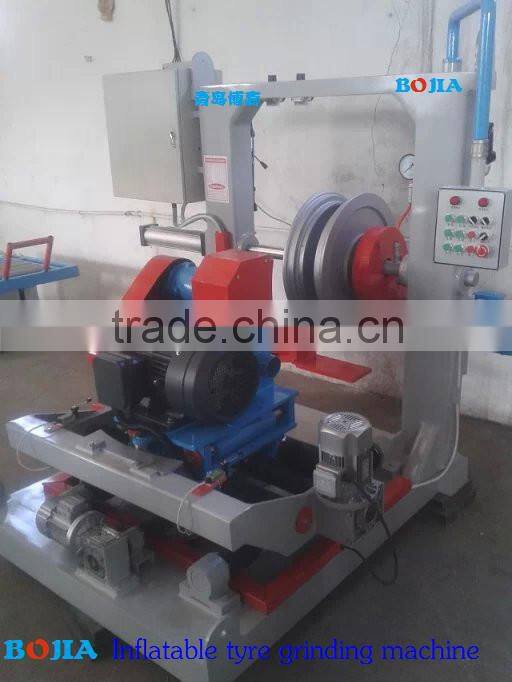

2.Influtable tire grinding machine FXM-C
Name |
Inflatable tyre grinding machine |
Model |
FXM-C |
Specifications |
15",16",20",22.5" |
Outside size |
1.6x1.8x2.1M |
Weight |
1150KG |
Technical parameter |
(1) Grinding head motor power: 11KW |
(2) Rotation tyre matching power: 2.2kw | |
(3) Grinding head of left and right matching power: 0.55kw | |
(4) Grinding head of front and back matching power: 0.37kw | |
Function |
(1) For tyre rough surface radian grinding |
(2) Equipped with tyre shoulder side polishing and tyre explosion-proof function | |
|
Main component parts
|
Low voltage electrical control system: Siemens; Air cylinder: international brand Taiwan------ Airtac |

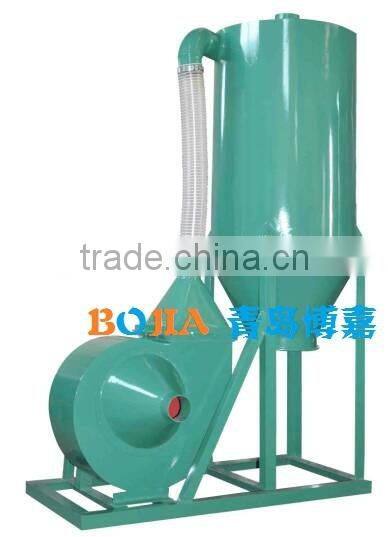

3.Rubber collecting machine
Name |
Rubber powder collecting tank |
Model |
FXM-B |
Outline dimension |
1.6x0.78x2.0M |
Weight |
220kg |
Technical parameter |
Ventilation motor: 3kw |
|
Function |
(1) For absorption of waste soo and smoke after grinding of tire grinding machine |
(2) Large capacity, smoke dust collection, convenient collection, energy-saving and health | |
|
Main component parts
|
Low voltage electrical control system: Siemens;
|

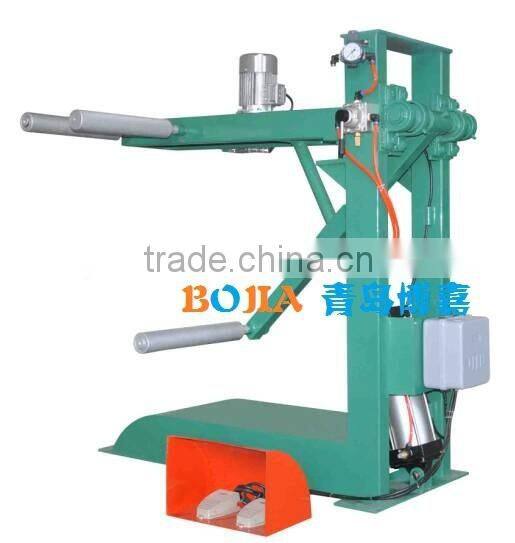

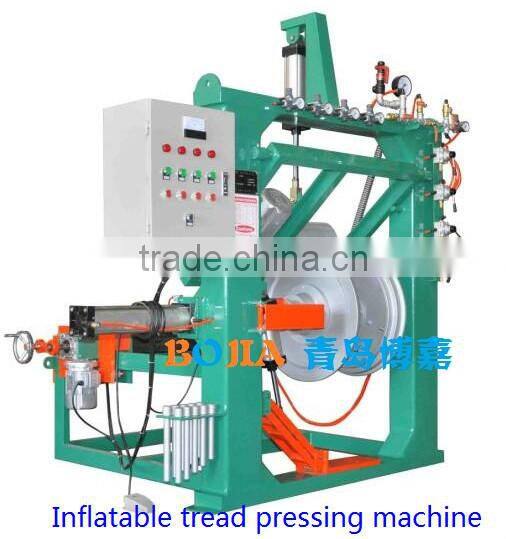

4.Inflatable tread pressing machine
Name |
Inflatable tread pressing machine |
Model |
FTT-B |
Specification |
15",16",20", 22.5" |
Weight |
850kg |
Technical parameter |
1)Press roller matching power: 0.55kw |
2)Press wheel matching power: 0.37kg | |
Function |
For carcass and tread pressing,with tire inflation explosion-proof function |
Main part |
Low voltage electrical control system:Zhengtai |

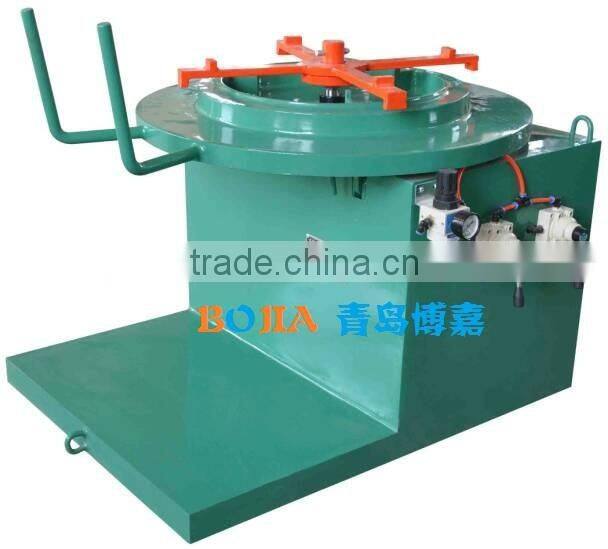

5.Rim disassembling machine
Name |
Rim disassembling machine |
Model |
LJC-A |
Specification |
15",16",20", 22.5" |
Outline dimension |
1.5x1.3x0.8M |
Weight |
100KG |
Function |
For disassembling of rim |
Main part |
Low voltage electrical control system:Zhengtai |

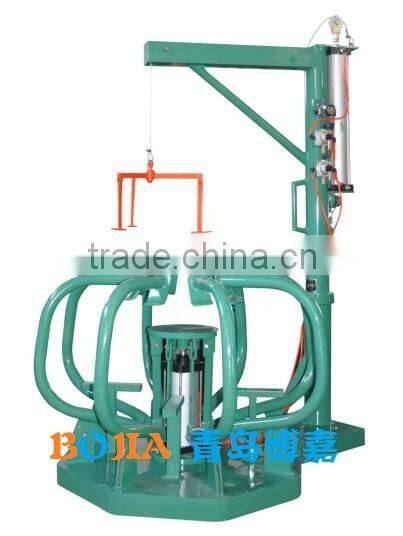

6.Envelope disassembling machine
Name |
Envelope disassembling machine |
Model |
LJJ-A |
Specification |
15",16",20",22.5" |
Outline size |
2.2x1.5x1.6M |
Weight |
350KG |
Function |
For envelope disassembling before and after tire vulcanizing., applicable to many kinds of tire. |
Main part |
Low voltage electrical control system:Zhengtai |

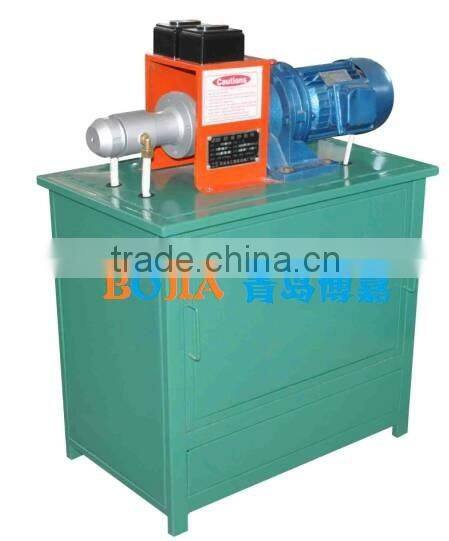

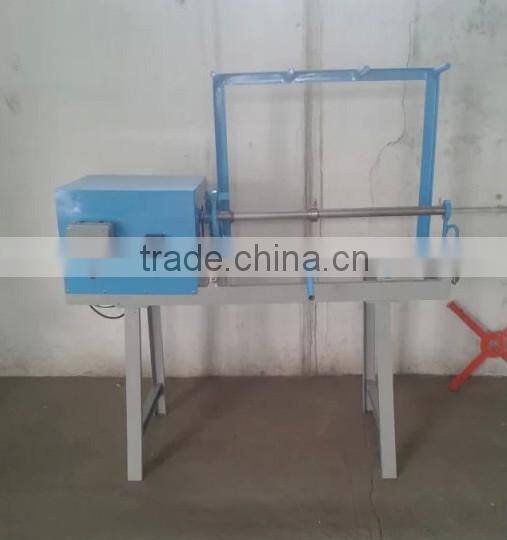

7.Buffer rubber strip extruder
name |
Buffer rubber strip extruder |
model |
LJJ-A |
specification |
20kg/h |
Outline dimension |
1.0x0.5x0.9M |
weight |
80KG |
Power |
1.5KW |
Function |
Necessary equipment for tire retreading process |
Main part |
Low voltage electrical control system:Zhengtai |

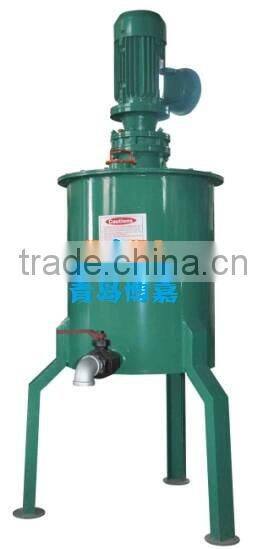

8.Rubber cement mixing machine
Name |
Rubber cement mixing tank |
Model |
XJB-B |
Specification |
100L |
Outline dimension |
0.8x0.85x1.5M |
Weight |
130kg |
Technical parameter |
Power : 1.5KW |
Function |
Used for manufacture of glue adhesion for carcass and tread with uniform character and equipped with explosion-proof motor which can prevent fire
|
Main part |
Low voltage electrical control system:Zhengtai |
9.Multi-function tire repairing machine
Name |
Multi-function tire repairing machine |
Model |
TXT-A |
Specification |
15",16",20",22.5" |
Outline dimension |
1.2x1.0x1.5M |
Weight |
100KG |
Technical parameter |
Motor: 0.18kw |
Function |
Suitable for tire light grinding and equipped with lifting function during rubberizing |
Main part |
Low voltage electrical control system:Zhengtai |

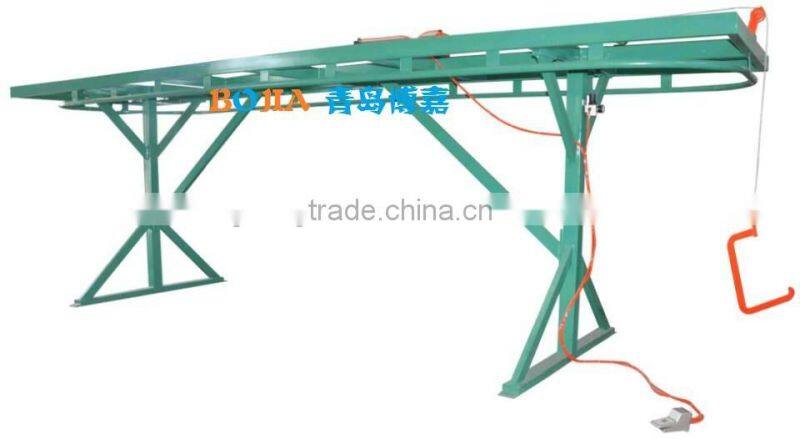

10.Circular guiding rail frame

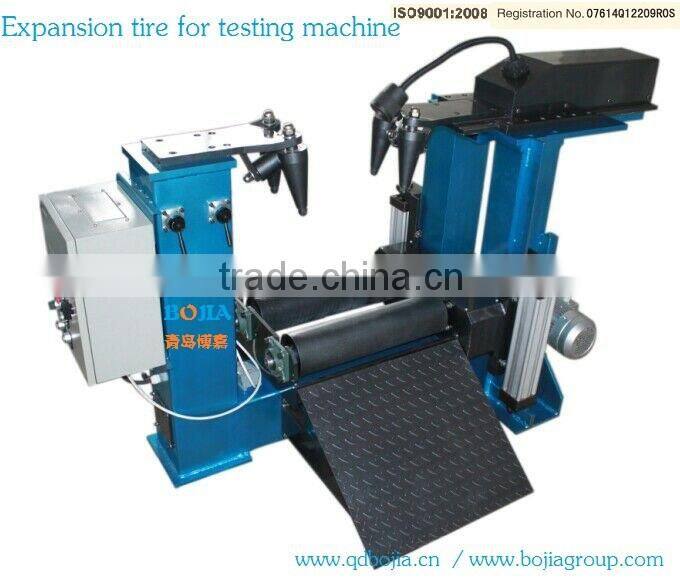

11.Tire expanding machine
Name |
Tire expanding machine |
Model |
BJ-KX-20 |
Specification |
Width of suitable tire tread section:100-350mm |
Outline dimension |
2x1.1x1.2M |
Weight |
220kg |
Technical parameter |
Power : 1.5KW |
|
Function |
Mainly used to test and repair the inner tire.The lifting of the workbench is controlled by the foot pedal switch.which is convenient to operate.
|
Main part |
Low voltage electrical control system:Zhengtai |
12.Tire trimming cutting machine
Name |
Tire trimming cutting machine |
Model |
BJ-QG |
Outline size |
1.15x0.6x1.2M |
Weight |
56kg |
Technical parameter |
Power : 1.1KW |
|
Function |
Mainly used for the cutting of medium pad adhesive during tire retreading.Movement of the motor is controlled by foot pedal switch,which is convenient and safe to operate.
|
Main part |
Low voltage electrical control system:Zhengtai |

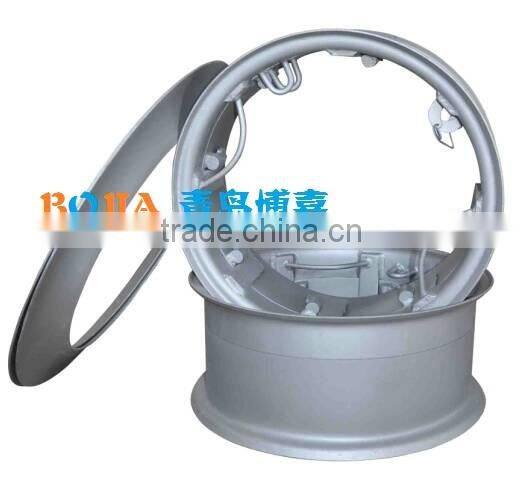

13.Vulcanizing steel ring
14.Vulcanizing inner tire
15.Package of envelope

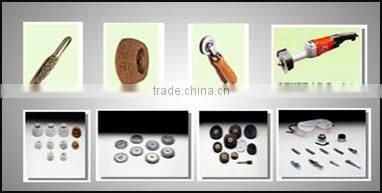

16.Repairing tools
function description
1.Repairing tools are using for tire hollow and wound repairing process.
2. Repairing tools are suitable for many kinds of wounds and can repair 300 tires.
3. Repairing tools can be customized according to the customer's demand.
If you have any questions,please contact me.
Telephone:185 6191 1597;
Skype:live:alice_3407
