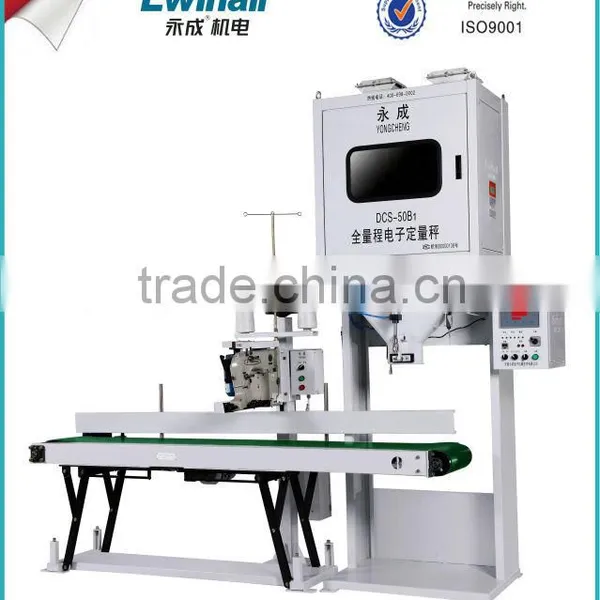

quantitative semi automatic feed package machines (DCS-50B1)

Specifications

PLC control
Auto lifting conveyor
Weighing range:1-50kg
Auto thread cutting with infrared sensor

Product Information



1. The usage

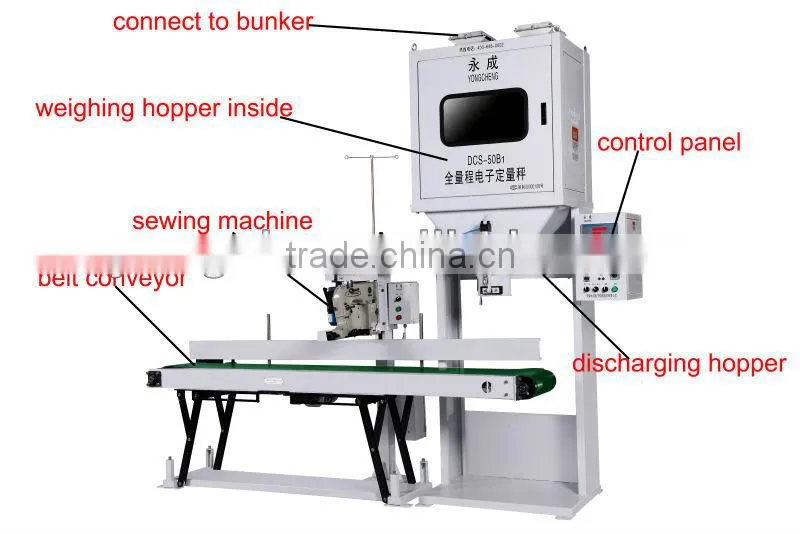

Quantitative semi automatic feed package machine (DCS-50B1) is suitable for the quantitative packing of granule,such as rice,bean,grain,chemical material.The machine has two weighing hopper inside.





2.Product Feature



• PLC control system
• Auto sewing
• Auto breaking cutting with infrared sensor
• Auto lifting conveyor
• Auto alarm
• Auto printing
• Easy installation

• The weighing range is 1-50kg

• The weighing error:0.1%F.S



3.Technical Parameters





Model	DCS-50B1
Weigh    Range(kg)	1—50
Division value(g)	2
Weighing error	0.1%F.S
Weighing speed(bag/h)	<900
Working environment(power   supply)	Relative humidity (RH) ≤90%,4N-AC380V   50Hz
Power consumption Air consumption	1.1KW 0.4-0.5Mpa   compressed air 0.7m³/h
Dimension(mm) Length×Width×Heigth	2911×849×2626



The packing results

Customer case

Deliver goods

About the company

Our company is the supplier of COFCO,Yihai Kerry and so on.We have specilied in packing machine for over 10 years,we are a leader in this industry in domestic market.
