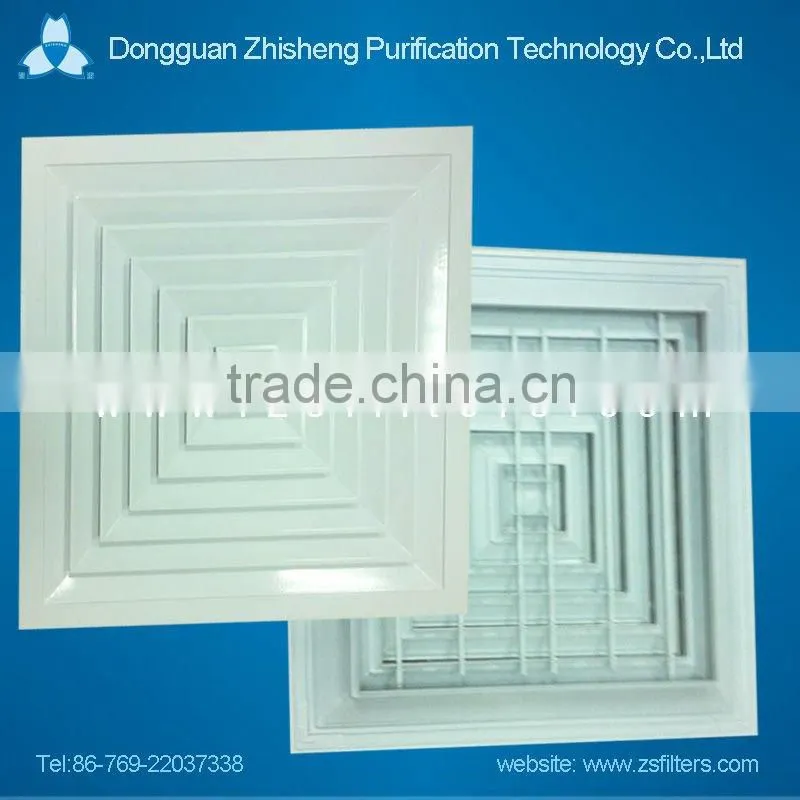

ZS-FS Aluminum Square ceiling air diffuser with damper

Specifications

Square ceiling diffuser with damper
1.Anodized/powder coated
2.Aluminum alloy

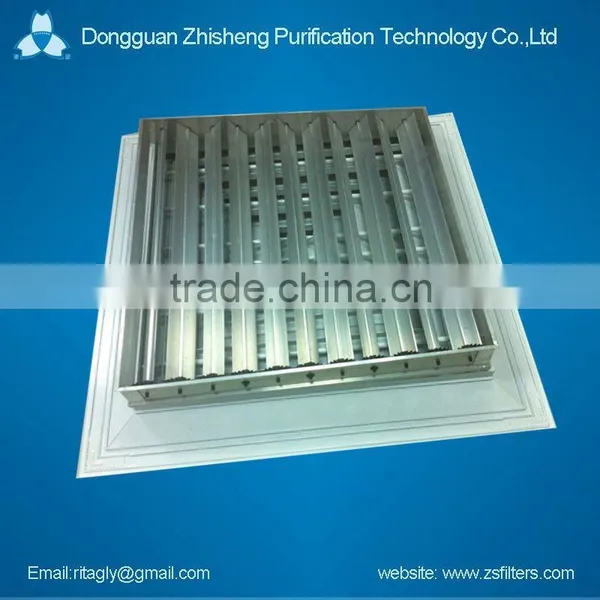

3.with damper
4.Size:24x24",20x20",18x18"

Square ceiling air diffuser

Square air diffuser

Square ceiling air conditioning diffuser



Construction:

Frame:High quality extruded aluminum alloy profile with 27.5mm width border

Core:High quality extruded aluminum ally profile

Material thickness:0.8mm,1.0mm ,1.2mm for option

Color: white can also follow customer’s requirement

Surface finish: powder coated/Anodized.

Size:Face size= neck size+145mm

                           Height:50mm

 24x24",20x20",18x18",16x16"

 Features:

1. Excllent appearance , fit for supply airflow

2. The multiplayer cone divided the air into many layers of swift puffs, quickly mixing the inlet air and interior together

3.Louvered type core is fixed to frame with aluminum pins loaded with steel springs.Core can be easily removable and interchangeable to allow for maximum flexibility in the installation, maintenance and damper adjustment.4. Dampers can be installed so as to adjust airflow

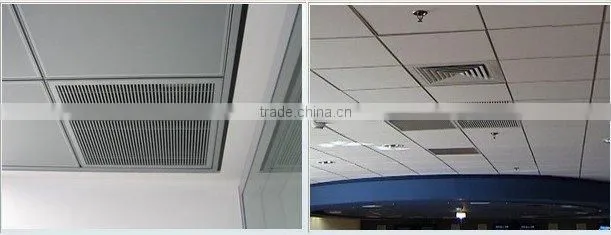

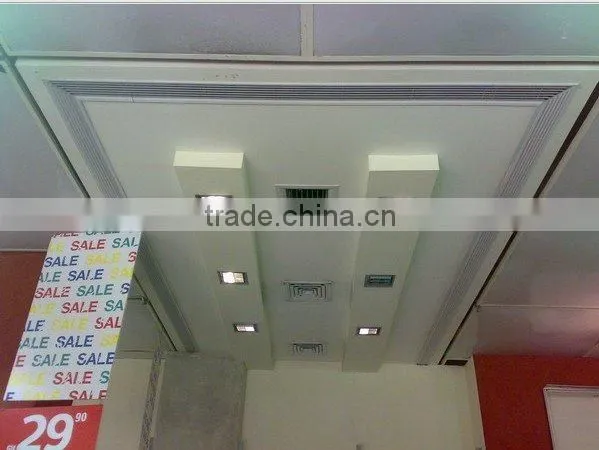

Usage:

It is used for supply and extract air applications for bathrooms kitchens and external walls of the buildings. It generally are widely used for air outlet of air conditioner.
