Oil chemical ultrasonic flow meter types
Description of flow meter

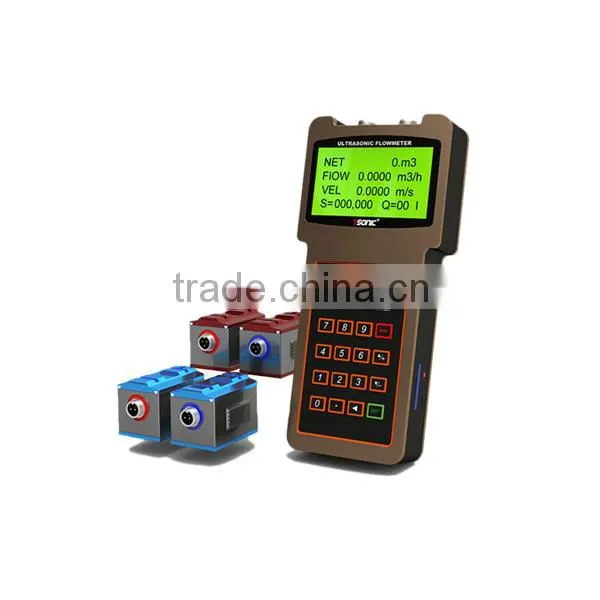

Handheld ultrasonic flow meter is ideal for flow surveys and closed pipe application where non-invasive measurement of liquids is required.
The advantages of high measurement accuracy, good consistency, battery power supply, easy operation and portability, make this meter the smallest and lightest flowmeter in domestic and a significant portable ultrasonic flow meter.
Features of oil flow meter
- High Accuracy measuring
Accuracy up to 1%
- Multi language menu
Can be customized in the UK, Italy, and other languages.
- Wide measuring range
Several types transducer for selection, measuring pipe size from DN15 to DN6000mm

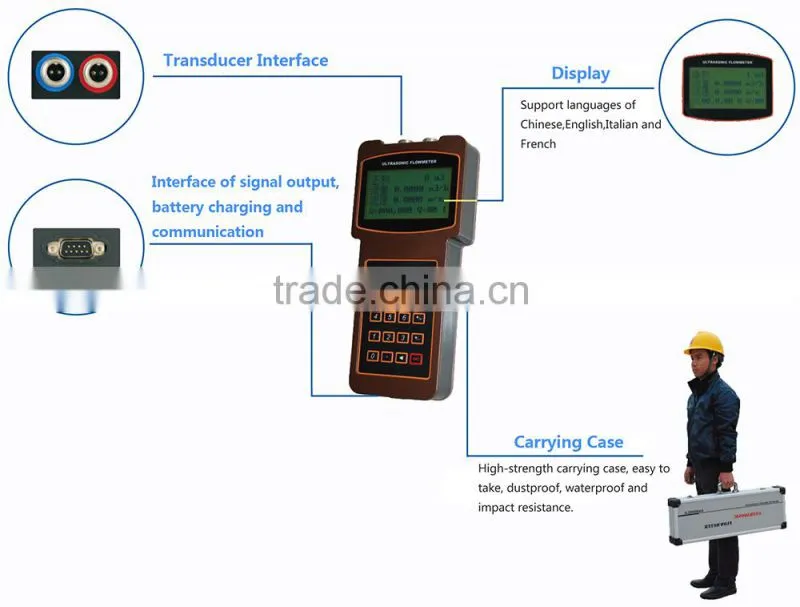

- Large LCD display
Can display the accumulated flow, instantaneous flow, flow rate, working state and so on.
Parameter of chemical flow meter
Category |
Performance |
|
Host parameters |
Principle |
Transit time measure, 4 bytes of IEEE754 floating point arithmetic |
Accuracy |
1 % |
|
Display |
320X240 pixel LCD, 4 x 8 or 4 x 16 Character matrix backlight LCD, support English, Italian, Chinese etc. |
|
Output |
1 channel pulse output OCT (pulse width is adjustable |
|
Data port |
1 channel isolated RS232 serial port. |
|
|
Pipe request |
Tube |
Steel, stainless steel, cast iron, copper, aluminum, FRP, PVC, etc. |
Pipe |
15~6000mm |
|
|
Installation |
If there is a bend, the sensor should be installed at a distance of 10D at least from the upstream bend, 5D at least from the downstream bend, and should be installed at a distance of 30D at least from the pumping hole. |
|
|
Medium |
Description |
Clean water, sea water, industry water. Corrosive acid liquid and alkaline liquid, alcohol, beer, etc. |
Temperature |
-30°C~160°C
|
|
Turbidity |
10000ppm not so much baubles |
|
Flow speed |
0 ~±10m/s |
|
|
Working ambient |
Temperature |
Host: -20~60°C Sensor:-30~160°C |
Humidity |
Host: 85%, Sensor: IP67 |
|
|
Electric source |
3 built-in 1.2V capacity rechargeable Ni-MH battery 2000mAH, each is full of electricity sustainable work more than 12 hours, the use of AC90 ~260V power adapter, can realize continuous measurement |
|
Power dissipation |
1.5W |
|
Shell material |
Inflaming retarding ABS |
|
Main engine weight |
390g |
|

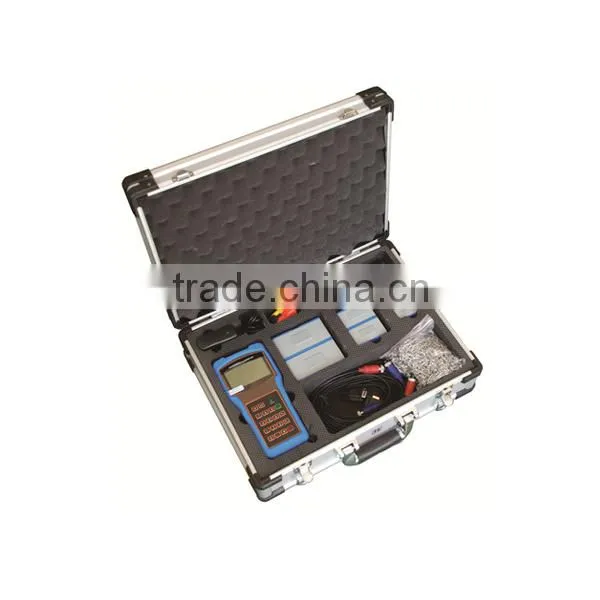

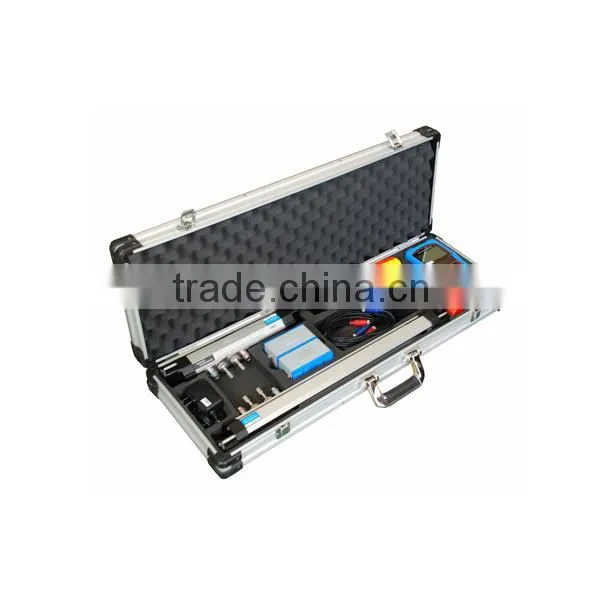

Parts

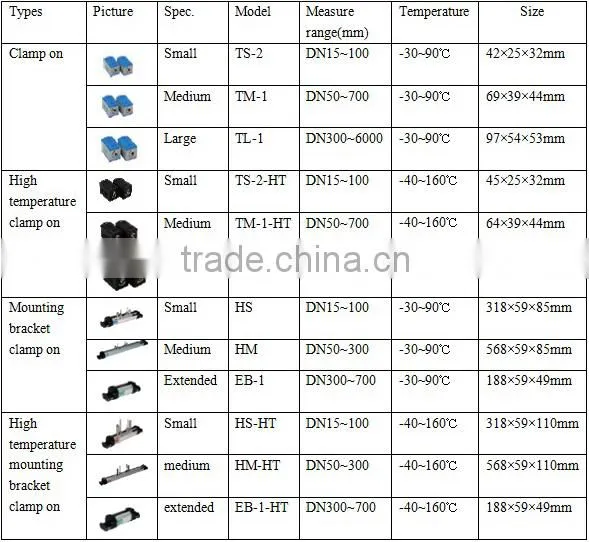

Optional Transducers
Our Services
Sensor can be customized by your special request, We can supply technical consulting service for your user.
The quality principle: Quality is the best sales
Payment: We accept T/T, PayPal, Western Union, MoneyGram , Escrow
Shipping:
1. All parts will be shipped out within 1 - 3 working days after confirm the payment
2. DHL / FEDEX / UPS / EMS / TNT / China Post /Aramex
3. We are not responsible for force majeure accidents, delays or other issues, like the shipping service.
After-sales service
We can offer good technical support and good warranty for you after service as professional manufacturer.
Warranty: One year
During the warranty, if the goods after delivery are damaged with error caused only by itself quality problem, the goods can be returned for free repair and maintenance. however, if the goods is damaged with error caused by user’ s man-made and force majeure factor, we will be not responsible for free repair and maintenance.
GUANGXING pressure, level and flow Instruments has been certified with ISO 9001 (2008)achieved GB/T19001-2008/ISQ9001:2008, GJB 9001B-2009, CE and RoHS, intrinsic safety explosion-proof and isolated safety explosion-proof certification. we developed a lot of sensor products, such as a pressure sensor / transducer / sensor, level transmitter / ultrasonic level meter / ultrasonic flow meter, etc. Our products are widely applied in the fields of chemical industry, petroleum, pharmacy, electricity, municipal works, environmental protection, food and paper-making.
We have the key technology and development center of advanced sensors, and we cooperation with Northwestern Polytechnical University, Xi'an Jiao Tong University and other colleges and universities. Product quality is the life of enterprise, customer demand is our existence!
