Used Tire Recycling Production Line with
ISO Certificate
1 separate the two strands of steel wire out
2 break the tire into about 50*50 blocks
3 cursh the blocks into rubber powder
4 separate the steel wire from the rubber powder and screen the certain mesh rubber powder
5 separate the fibre from the rubber powder according to the air suspension principle.
6 grind the rubber powder to more fine.

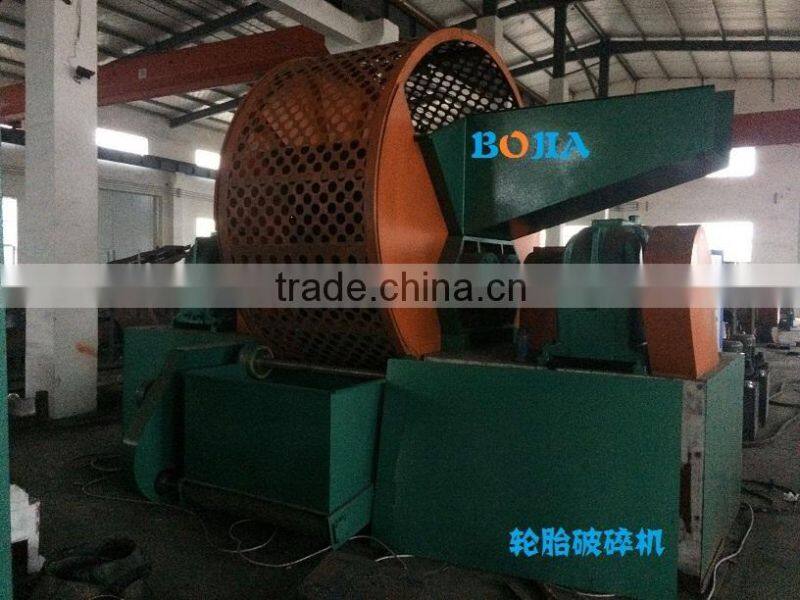

Tire break Machine
Rubber crush machine
Model No. | XKP-800 |
Front roller diameter(mm) | 560(smooth) |
Later roller diameter(mm) | 510(groove) |
Working length(mm) | 800 |
Front roller line speed(m/min) | 25.56 |
The rotational speed ratio | 1:1.30 |
Maximum roller spacing(mm) | 15 |
Motor power(kw) | 75 |
Dimensions(l*w*h)(mm) | 5070*2290*1980 |
Weight (kg) | 19000 |
Function | Broke the tire block into 5-10 mesh rubber powder |

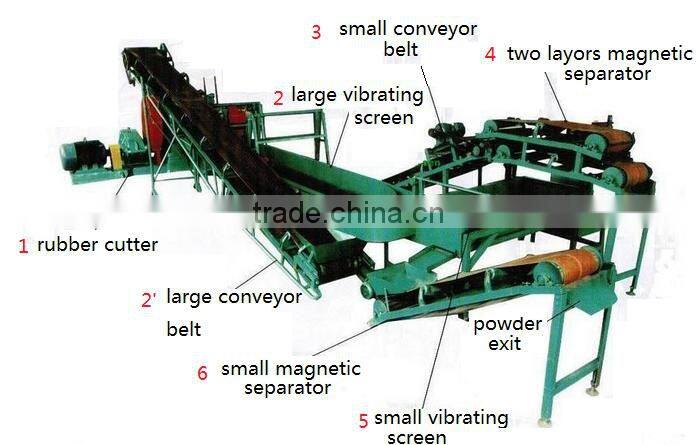

Separate production Line
This separate production line consists of vibrating screen, conveyer belt, magenatic separator to separate wire steel and large nylon fibre.

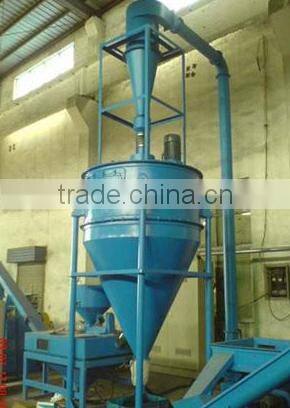

Fibre separator
separate small fibre from rubber powder according to air suspension principle.
Grinding machine
grind the rubber powder further to the certain mesh.
1 Free installation instruction
Customers will enjoy free installation instruction and training for different style. Installation pictures and video will be provided as your requirement freely.
2 24 hour service
You are welcomed to contact us whenever you have a doubt or a question. Our stong technician and engineer team will work out the solution to you within 24 hours.
3 One year warranty
Our company has passed the ISO quality management system certification
Qingdao Bojia Machinery Manufacturing Co., Ltd changed officially its name from a state-owned machinery company in October 2007, is one professional machinery manufacturer. Our company have one good and high quality design and manufacturing technology development group, often communicate with the customers and technology authority departments of rubber industry, constantly to improve and update our products which can meet the requirements of the customers; Our company guarantee to provide you excellent pre-market sale and after-sale service, timely technology information consulting, accessories and consumable parts supply etc, also can design and manufacture various non-standard products according to users’ requirements.
Our main products are: Conveying Belt Molding Machine Series; Batch Off Cooling Machine Series; Cushion Cloth Renovating Machine Series; Open Mixing Mill Series; Vulcanizing Press Series; Rubber Cutting Machine Series; Rubber Slitting Machine Series; Longitudinal Cutting Machine Series; Conveyer Belt Machine Series; Other Rubber Machines; Design and Manufacturing of Automatic Production Line.
Bojia Machinery Company always pursue "quality first, customer first" principle to offer high-quality products and excellent service, welcome new and old customers to visit my company.
1 Q: Are you a manufacturer or trade company.
A: We are rubber machine manufactruer with our own industry park.
2 Q: Can you design and manufacture non-stand machine?
A: Yes, We have our own design and product team. We have more than 10 years experience in this area.
3 Q: Are you near to Qingdao airport?
A: Yes, only 1.5 hours by car. If you arrive, we can drive to pick you.
60 minute to the Qingdao seaport
50 minutes to the Qingdao railway station.
