GXTFM-L Low Power Turbine Fuel Liquid Flow Meter

FOB Price

US$ 200 - 1,000 / Piece

1 Piece(Min. Order)

Port Tianjin or other
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanxi, China		Brand Name	GX Support OEM low power liquid flow meter
Model Number	GXTFM-L Low power turbine fuel liquid flow meter

Product Description

Low power turbine fuel liquid flow meter

Product Description

Description of low power turbine fuel liquid flow meter

Low power turbine fuel liquid flow meter is use of advanced low-power single-chip microprocessor technology developed turbine flow sensor and display totalizer integration of new smart meter, with a compact structure, intuitive readings clear, high reliability, without outside power interference, anti-lightning, obvious low cost advantage, it is widely used to measure the closed pipe and stainless steel 1Cr18Ni9Ti, 2Cr13 and corundum Al2O3, carbide not corrode, and no fibers, particles and other impurities, kinematic viscosity at operating temperature is less than 5 × 10-6m² / s of liquid, for kinematic viscosity more than 5 × 10-6m² / s of liquid, can be quantitative control, excessive alarm, etc., is an ideal flow metering and energy meter.

Measurement objects: oil, organic liquids, inorganic liquid, liquefied petroleum gas, natural gas, coal gas and cryogenic fluids.

Features

High accuracy, generally up to ±1%R, ±0.5%R, high accuracy up to 0.2%R
Good repeatability, short-term repeatability up to 0.05%~0.2%, in the trade settlement is the preferred choice of flow meter.
Output pulse frequency signal, no zero drift and strong anti-interference ability.
High frequency signal(3~4KHz) can be obtained, the signal resolution is strong.
Wide range, medium and large diameter up to 1:20, small caliber 1:10.
Can be customized, for example Low temperature type, Bi-Directional type, Mixed sand type and Underground type etc.
Can be made into an insert type, suitable for large diameter measurement, the pressure loss is small, the price is low, take it out with not cut off the liquid.

Applications

Liquefied petroleum gas, refined oil and light crude oil transport and gathering stations, the first and terminal station of large crude oil pipeline for trade settlement.
Widely used in petroleum, chemical, metallurgy, paper and other industries to measure the volume of liquid flow and total volume.

Specifications

Specifications of Low power turbine fuel liquid flow meter

Low power turbine fuel liquid flow meter does not have a display function, only the flow of remote signal output, signal flow can be divided into pulse signal and current signal, Especially suitable for the secondary display instruments, PLC, DCS and other control systems with the computer.

Parameter		Value
Power supply	External power	24VDC±15% (Ripply≤5%, power waste<0.5W)
Power supply	Internal power	3.6VDC lithium battery (working voltage 2.3V~3.6V,Sustainable work for more than 12 months)
Input signal frequency range		0~3000Hz
Pulse output	Load capacity	>1100Ω
	High/Low level amplitude	>22V / <0.8V
	Pulse width	1/2fin×1000(ms)
Current output	Load capacity	≤880Ω
	Two-wire	4-20mA
	Three-wire	4-20mA
Communication interface		RS485, Using MODBUS

Parameter

Parameter		Value	Unit
Diameter	Thread	4, 6, 10, 15, 20, 25, 32, 40, 50, 65, 80	mm
	Flange	15, 20, 25, 32, 40, 50, 65, 80, 100, 125,150, 200	mm
	Plug-in	150, 200, 250, 300, 350, 400, 500~1100	mm
Accuracy		±1, ±0.5, ±0.2(customized)	%R
Range ratio		1:10, 1:15, 1:20
Sensor material		304, 316(L) stainless steel etc.
Working environment	Medium temp.	-20~120	°C
	Ambient temp	-20~60	°C
	Relative humidity	5%~90%
	Atmospheric pressure	86~106	KPa
Signal output		Pulse,4~20mA
Comm interface		RS485,HART etc.
Power supply	External power	+24+15%,Ripple ≤±5%, Applying to 4~20mA,Pulse,RS485	VDC
Power supply	Internal power	1 group 3.0V10AH lithium battery, working voltage 2.0~3.0V
Signal line interface	Basic type	Houseman connector or own three-core cable
Signal line interface	Explosion proof type	Internal thread M20×1.5
Explosive-proof grade		ExiaIICT4 or ExdIIBT6
Protection level		IP65 or higher(customized)

According to customer demand, we can customize the corresponding parameters.

Other type

We have various type of turbine fuel diesel, oil, liquid flow meter products.

GXTFM-S Intelligent diesel turbine liquid flow meter

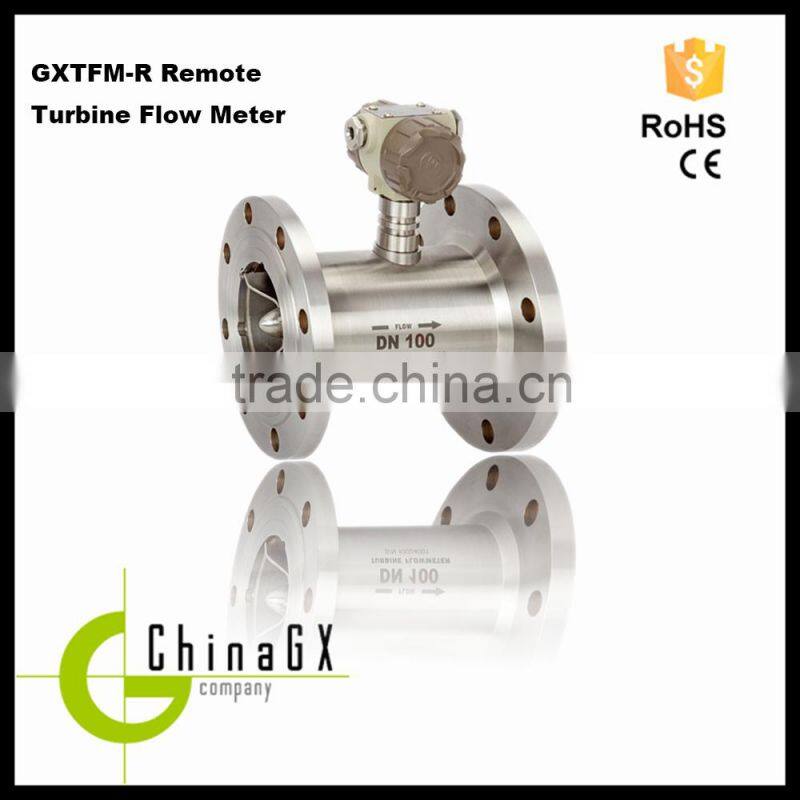

GXTFM-R Remote diesel turbine liquid flow meter

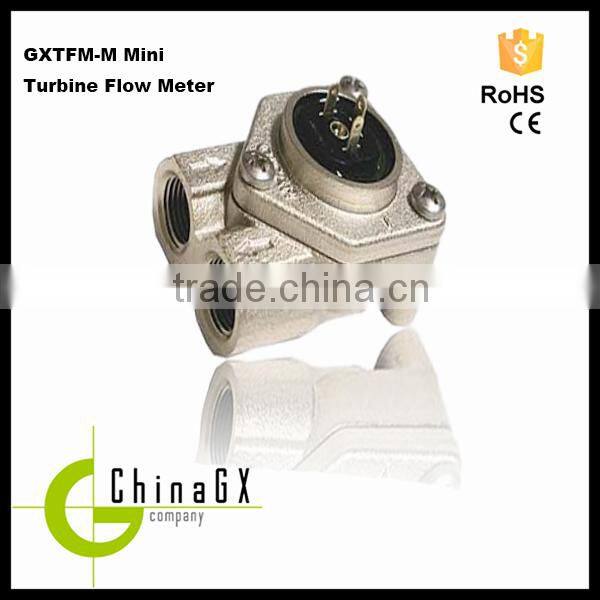

GXTFM-M Mini diesel turbine liquid flow meter

GXTFM-I Insertion diesel turbine liquid flow meter

Company Information

GUANGXING flow meters have been certified with ISO 9001 (2008)achieved GB/T19001-2008/ISQ9001:2008, GJB 9001B-2009, CE and RoHS, intrinsic safety explosion-proof and isolated safety explosion-proof certification. we developed a lot of sensor products, such as a pressure sensor / transducer / sensor, level transmitter / ultrasonic level meter / ultrasonic flow meter, etc. Our products are widely applied in the fields of chemical industry, petroleum, pharmacy, electricity, municipal works, environmental protection, food and paper-making.

We have the key technology and development center of advanced sensors, and we cooperation with Northwestern Polytechnical University, Xi'an Jiao Tong University and other colleges and universities. Product quality is the life of enterprise, customer demand is our existence!

Our Services

Sensor can be customized by your special request, We can supply technical consulting service for your user.
The quality principle: Quality is the best sales
Payment: We accept T/T, PayPal, Western Union, MoneyGram , Escrow
Shipping:
1. All parts will be shipped out within 1 - 3 working days after confirm the payment
2. DHL / FEDEX / UPS / EMS / TNT / China Post /Aramex
3. We are not responsible for force majeure accidents, delays or other issues, like the shipping service.
