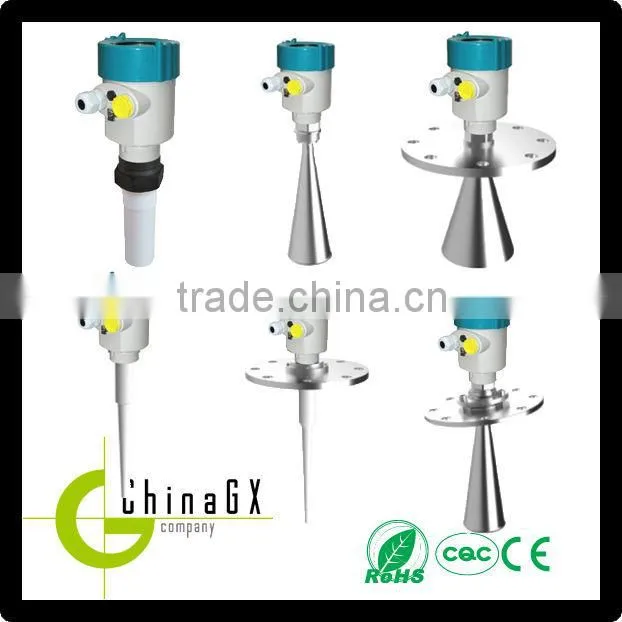

High frequency radar material level transmitter
GXRD Series Radar Level Transmitter is high-frequency level measuring instruments with the maximum measuring distance up to 70 meters. The antennais further optimized, and the new-type micro processor can perform high errate of signal analysis and processing,making the instrument available for complex measurement conditions, suchas reactors, solidsilos.
Feature
1. Small antenna size, easy to install; non-contact radar, no wear, no pollution.
2. Almost free from corrosion, foam impact; hardly affected by the change of the temperature, pressure and water vapor in the atmosphere.
3. Severe dust environment is not likely to affect the work of the high-frequency level meter.
4. Shorter wavelength can achieve better reflection for the inclined solid surface.
5. The small field angle and energy concentration, enhanced echo capabilities, and beneficial to avoid interference.
6. Minimized measuring blind spot can gain better result of small tank measurement.
7. High SNR, even in the case of fluctuations can result in better performance.
8. High frequency, the best choice to measure solids and low dielectric media.

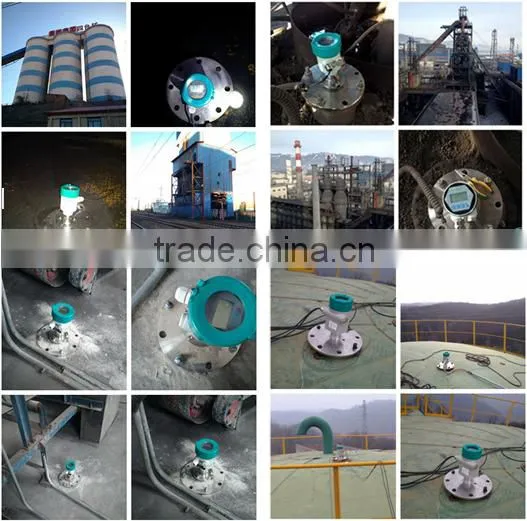

Application field
Parameter
1.GXRD101
| Application | Storage containers, process vessels or strong dust and crystallization,condensation occasion |
| Measuring range | 70 meter |
| Process connection | Screw thread, Flange(optional) |
| Medium Temperature | -40~250°C |
| Process pressure | Atmospheric |
| Accuracy | <0.1% |
| Frequency range | 26GHz |
| Anti-explosion/safety grade | Exia IIC T6 Ga /IP67 |
| Signal output | 4~20mA/HART(Two-wire/ Four)RS485/Mod bus |
3.GXRD102
| Application | All kinds of strong corrosive liquid, strong acid, strong base, Chemical liquid |
| Measuring range | 20meter |
| Process connection | Screw thread, Flange (optional) |
| Medium Temperature | -40~120°C |
| Process pressure | -0.1~0.3MPa |
| Accuracy | <0.1% |
| Frequency range | 26GHz |
| Anti-explosion/safety grade | Exia IIC T6 Ga /IP67 |
| Signal output | 4~20mA/HART(Two-wire/Four) RS485/Mod bus |
| Application | Solid particles, dust |
| Measuring range | 30 meter |
| Process connection | Screw thread, Flange(optional) |
| Medium Temperature | -40~250°C |
| Process pressure | Atmospheric |
| Accuracy | <0.1% |
| Frequency range | 26GHz |
| Anti-explosion/safety grade | Exia IIC T6 Ga /IP67 |
| Signal output | 4~20mA/HART(Two-wire/ Four) RS485/Mod bus |
4. GXRD202
| Application | Storage corrosive liquids, slurries and waste water tanks, acid tanks slurry tanks, solid particles, small oil tanks |
| Measuring range | 20 meter |
| Process connection | Flange |
| Medium Temperature | -40-150°C |
| Process pressure | -0.1-1.6Mpa |
| Repeatability | ± 2mm |
| Accuracy | <0.1% |
| Frequency range | 6.8GHz |
| Anti-explosion/safety | Exia IIC T6 Ga/IP67 |
| Signal output | 4~20mA/HART(Two-wire) |
5.GXRD302
| Application | Liquid, solidparticles |
| Measuring range | 6meter |
| Process connection | Screw thread, Flange(optional) |
| Medium Temperature | -40-250°C |
| Processpressure | -0.1-2MPa |
| Accuracy | <0.1% |
| Frequencyrange | 100MHZ-1.8GHZ |
| Anti-explosion/safetygrade | ExiaIICT6 Ga/IP67 |
| Signaloutput | 4~20mA/HART(Two-wire) |
6. GXRD205
| Application | variety of storage containers or process measurement environment, liquids, slurries and solids, such as: crude oil, light oil storage tanks, coal, pulverized coal positions, volatile liquid storage tanks, coke material level, slurrystorage tanks, solid particles |
| Measuring range | 35meter |
| Process connection/fitting | Screw thread, Flange(optional) |
| Process Temperature | -40-250°C |
| Process pressure | -0.1-2Mpa |
| Accuracy | < 0.1% |
| Frequency band | 6.8GHz |
| Anti-explosion/safety grade | Exia IIC T6 Ga/IP67 |
| Signal output | 4~20mA/HART(Two-wire) |
Other level sensor
We supply high quality LEVEL METER, please let us know your requirements, we will try best to provide most suitable solution for you. Please feel free to send us an inquiry, we will reply you within 24 hours.
