Make hole horizontal inclinometer sensors price in india

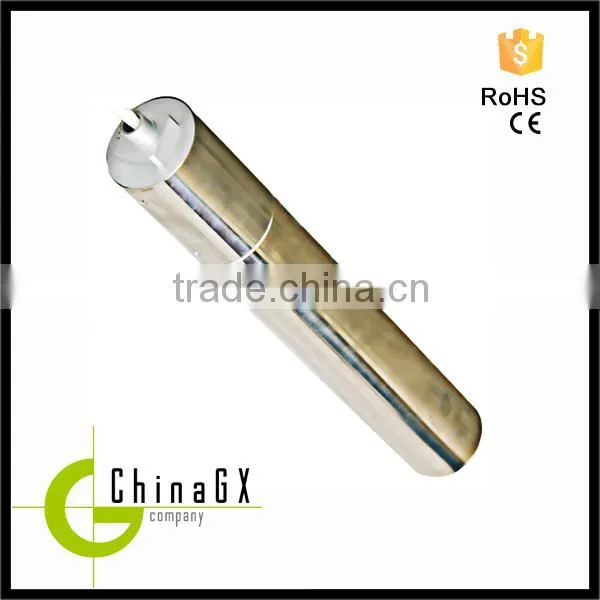

GXKD64A3 three-axis fiber optic gyroscope, fiber optic gyroscope and accelerometer as the main component, is the core component of the inclinometer to achieve the continuous inclinometer. It has high reliability, strong anti-poor environment, and high accuracy. This series of products successfully used in geological exploration, mining and oil inclinometer, dam measurement.
- Easy to carry and operate
- Suit for all kinds of holes or wells
- High accuracy and stable operation
- With strong anti-impact performance
This series of products are successfully used in geological exploration, mining and
petroleum survey, dam measurement etc.
Parameter table | |
Range |
±100(°)/S |
Bias stability (1σ) |
≤0.3(°)/h |
Scale factor repeatability |
≤150ppm |
Random walk coefficient |
0.03(°)/√h |
Working Temp. |
-40°C~+70°C |
Power supply |
±5V |
Dimension |
Φ64mm×450mm |
Weight |
≤1500g |
Output |
Pulse |
Note: the technical specifications in the table can be customized according to the requirements.
Our Services
Sensor can be customized by your special request, We can supply technical consulting service for your user.
The quality principle: Quality is the best sales
Payment: We accept T/T, PayPal, Western Union, MoneyGram , Escrow
Shipping:
1. All parts will be shipped out within 1 - 3 working days after confirm the payment
2. DHL / FEDEX / UPS / EMS / TNT / China Post /Aramex
3. We are not responsible for force majeure accidents, delays or other issues, like the shipping service.
After-sales service
We can offer good technical support and good warranty for you after service as professional manufacturer.
Warranty: One year
During the warranty, if the goods after delivery are damaged with error caused only by itself quality problem, the goods can be returned for free repair and maintenance. however, if the goods is damaged with error caused by user’ s man-made and force majeure factor, we will be not responsible for free repair and maintenance.
Xi'an Kacise Optronics Co., Ltd. was founded in 2000, is located in Xi'an, Shaanxi Province, China, is a professional engaged in instrumentation and sensors, R & D, production, sales as one of professional high-tech enterprises, we have our own production workshop and central laboratory. Factory building area is about 3000 square meters, with production of more than 30 employees, 8 engineer, 6 inspectors, 10 saleman, 5 for customer service, is this industry, we are one of the strong technology manufacturers with varieties specification.
When the company set up, we began to focus on the coordination of military supplies production, achieved GB/T19001-2008/ISQ9001:2008, GJB 9001B-2009 certification. When our company is running mature and stable, in 2008, we began to develop our business. Based on the production of military products quality control, we developed a lot of sensor products, such as a pressure sensor / transducer / sensor, level transmitter / ultrasonic level meter / ultrasonic flow meter, inertial navigation products, IMU, gyroscope, accelerometer etc.
