Help CenterYONGBANG YB-F5 BML 4 Stroke 5HP Outboard Engine Motor
Related Products
-
YONGBANG YB-F5 BMS 4 Stroke 5HP Wholesale Outboard MotorNegotiableMOQ: 1 Set -
YONGBANG Boat Engine YB-T30 BML 2-stroke 30HP Chinese Outboard MotorNegotiableMOQ: 1 Set
-
YONGBANG YB-T30 BML 2-stroke 30HP Sail Outboard Boat Engine Motor Long ShaftNegotiableMOQ: 1 Set
-
China Supplier YONGBANG Boat Engine YB-T30 BML 2-stroke 30HP Wholesale Outboard MotorNegotiableMOQ: 1 Set
-
YAMABISI YB-T30 BMS 2 Stroke 30hp Outboard Motor Made Boat Engine PriceNegotiableMOQ: 1 Set

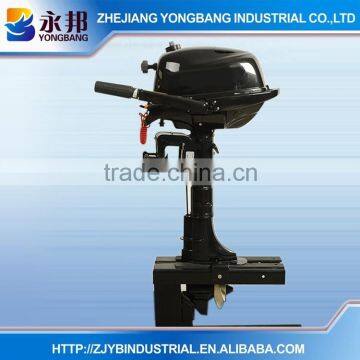

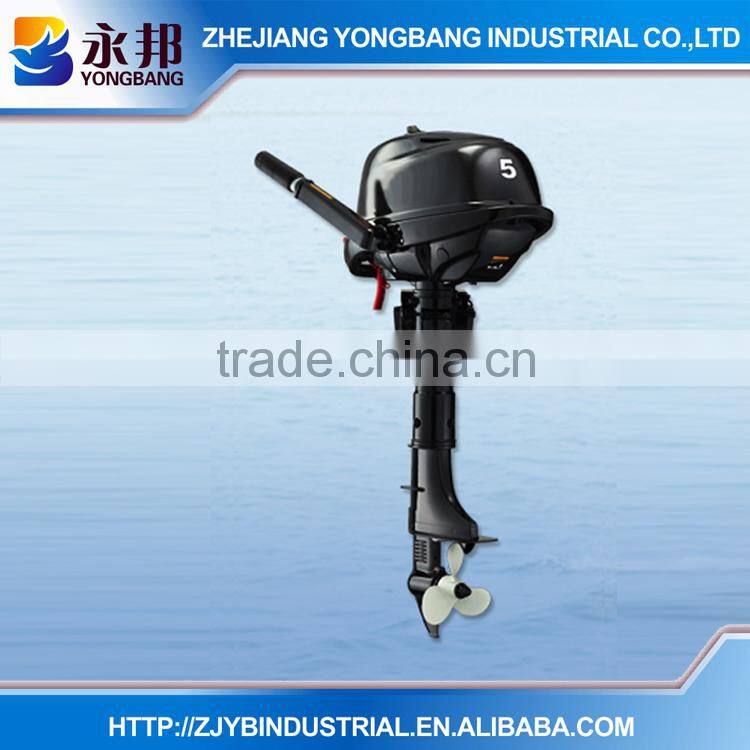

1.Pictures of Outboard Motor
2.Descriptions Of Outboard Motor
Item NO. |
measurement |
4-stroke |
YB-F5BM(S/L) | ||
|
|
|
Length |
mm(in.) |
717(28.2) |
Width |
mm(in.) |
361(14.2) |
Height |
mm(in.) |
S:1029(40.5) |
Transom height |
mm(in.) |
S:433(17.1) |
Net Weight |
|
S:23; L:24 |
Full throttle |
r/min |
4000~5000 |
Maximum output |
KW(HP)@r/min |
3.6(5)@4500 |
Idling speed |
r/min |
1250~1350 |
Cylinder quantity |
|
1 |
Displacement |
ml |
120 |
Bore×Stroke |
mm(in.) |
61×41(2.32×1.61) |
Control system |
|
Tiller |
Starting System |
|
Manual |
Gear positions |
|
|
Gear ratio |
|
2.08(27/13) |
Trim and tilt system |
|
Manual tilt |
Fuel tank volume |
L(litre) |
1.1 |
Engine fuel ratio |
|
/ |
Engine oil |
L(litre) |
0.5 |
Gear oil |
ml |
100 |
3.Features
Our company is professionally on producing OUTBOARD MOTORS and their SPARE PARTS.All the main spare parts are produced and then assembled into hole engine on our own production line, so we could do more to supply you goods of better quality with more competitive prices.
Till the end of 2009, we had invested over US $3, 000, 000 to develop outboard motors. In 2010 the available styles are 4-stroke 2.5HP, 4HP, 5HP, 9.9HP, 15HP motors. 2-stroke2.5HP 4HP, 5HP, 8HP,9.9HP, 15HP and 40HP motors.
In 2012, our 2-strokes 60HP motor will be developing and available due to the succesee of available motors. Keeping the first-class quality, provide professional sevice and meanwhile to continuously develop new products and improve quality, is our eternal aim and power. Every buyer’s satisfaction is our most pleasure and success.
4.Quality Control
1).Before the order can be confirmed finally,we would strictly check the material ,accessories of the sample step by step.
2).We salesman ,also as a order follower,would trace every phase of production from the beginning.
3).We have a QC team ,every product would be checked by them before packed.
4).We would try our best to help clients solve problems when they occurred.
5).Most of our products have passed TUV CE /GS ISO9001 certificate.
5.Inspection
6.Warehouse
1.Introduction
2.Our Company View
3.Factory View
4.Our Team
