Specifications
1. Superior Quality at Reasonable Price ;
2.One year warranty;
3.we are factory manufacture;

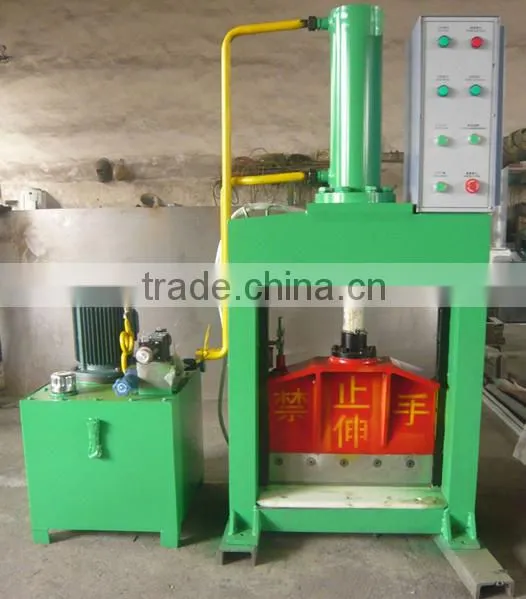

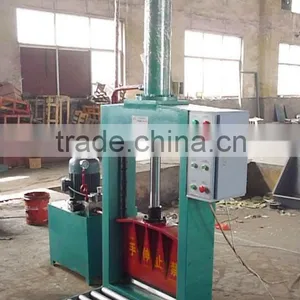

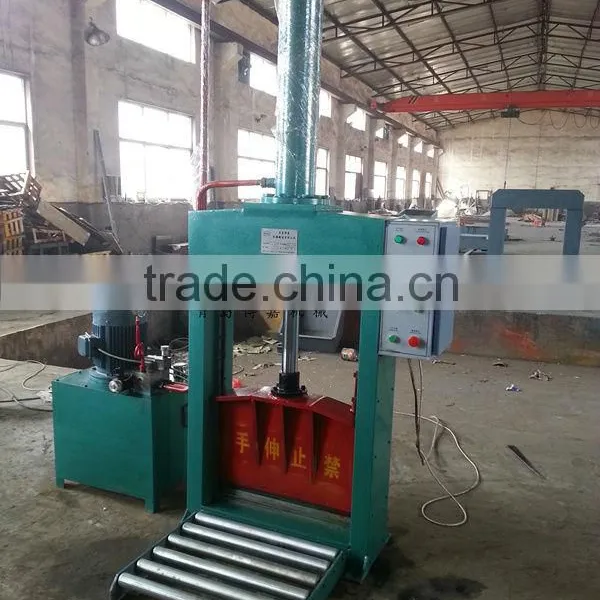

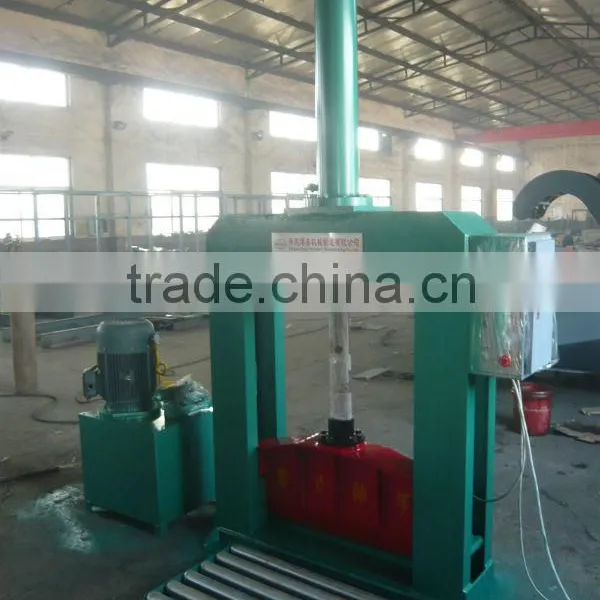

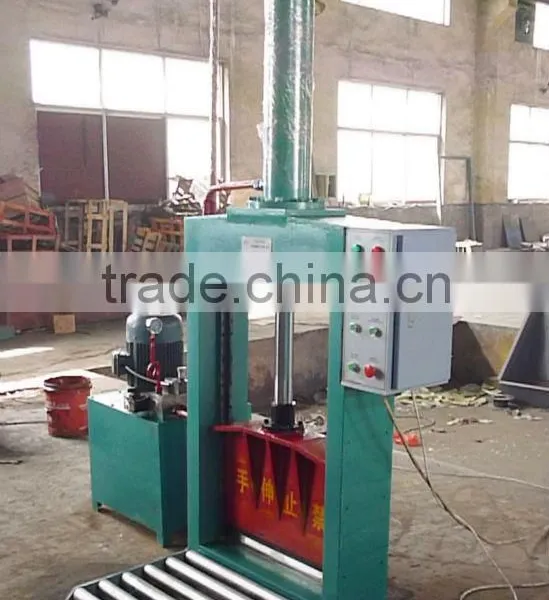

Vertical hydraulic single bale rubber cutter/rubber cutting
machine with the lowest and latest price
Usage
Rubber cutting machine is one of the most used equipments in raw materials processing.It mainly used to cut natural rubber,synthetic rubber,and other plastic materials into small pieces,which satisfy the requirments.Also,it is suitable to be installed near the rubber mixer.
Structure feathures
This rubber cutting machine is simple structure,reasonable design and convenient opration. It is mainly consisted of cutting knife,frame,cylinder,race of raw rubber and hydralic system.It adopts the unloading valve control to save the energy.
The lead protection mat is installed under the cutting knife to protect the edge of the cutting knife.When working,put the raw rubber under the cutting knife and cut it into small pieces suitable for rubber mixing by the presser of the hydraulic oil cylinder.
Technical parameters
Model |
XQL-80 |
XQL-125 |
XQL-160 |
XQL-240 |
XQL-400D |
XQL-50W |
Width(mm) |
660 |
760mm |
1500 |
860 |
860 |
660 |
Stroke(mm) |
660 |
660 |
1100 |
660 |
660 |
300 |
Cutter quantity |
1 |
1 |
1 |
2 |
2 |
1 |
Oil cylinder pressure(KN) |
80 |
125 |
160 |
240 |
400 |
50 |
Rubber cutting travel time(S) |
14-18 |
16-18 |
14-18 |
16-20 |
16-20 |
8-10 |
Motor power(KW) |
5.5 |
5.5 |
7.5 |
11 |
15. |
4 |
Overall dimensions(L*W*H) |
1800*500*2150 |
1800*500 *2150 |
2840*500 *3050 |
2000x700 x2400 |
2000x700 x2400 |
1600*1000* 1300 |
*Within 30 days after reciving the deposit.
*Standard export wooden packing container
1. The guarantee period is one year.
2. 24 hours technical support
3. Offer lifetime Service and spare parts
4. Technique training is free of charge.
Qingdao Bojia Machinery Manufacturing Co.,Ltd is one professional machinery manufacturer. Our company have one good and high quality design and manufacturing technology development group,often communicate with the customers and technology authority departments of rubber industry,constantly to improve and update our products which can meet the requirements of customers:Our company guarantee to provide you excellent pre-market sale and after sale service,timely technology information consulting,accessories and consumable parts supply etc,also can design and manufacture various non-standard products according to users requirements.
Our main products are:Conveying belt molding machine series:Batch off cooling machine series:Cushion cloth renovating machine series:open mixing mill series:Vulcanizing press series:Rubber cutting machine series:Rubber slitting machine series:Logitudinal cutting machine series:Conveyor belt machine series:Other rubber machines:Design and manufacturing of automatic production line.
Bojia machinery company always pursue”quality first,customer first”principle to offer high-quality products and excellent service,welcome new and old customers to visit our company.
