Home > Products > Rubber Cutter > High efficiency rubber sheet cutting machine with advanced quality
High efficiency rubber sheet cutting machine with advanced quality
- 50 Set / Sets per Month
- Qingdao Port
- T/T
Product Details
Condition: | New | Type: | Rubber Cutting Machine | Place of Origin: | Shandong, China |
Brand Name: | Bojia | Model Number: | XQL series | Voltage: | 380V or according to your requirement |
Power(W): | 5.5kw | Dimension(L*W*H): | as your requirement | Weight: | decide by the type |
Certification: | CE&SGS&ISO | Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specification
1.Superior quality and good price.
2.We are factory direct sale.
Packaging&Delivery
Packaging detailed:Standard export wooden packaging container
Delivery detailed:Within 30 days after receiving the deposit.

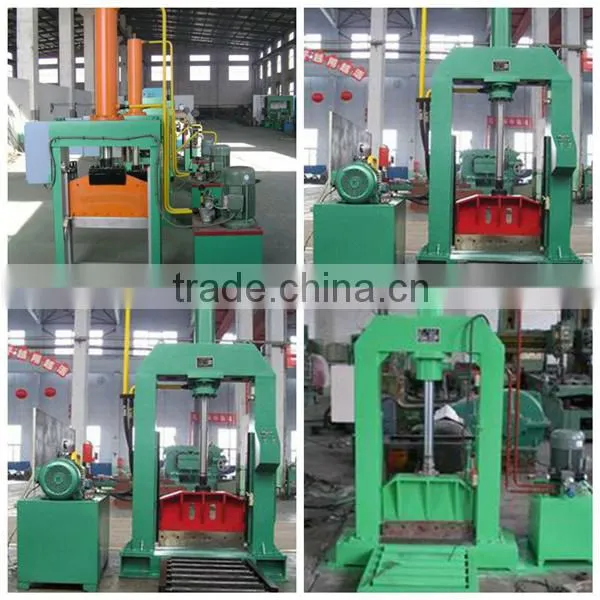

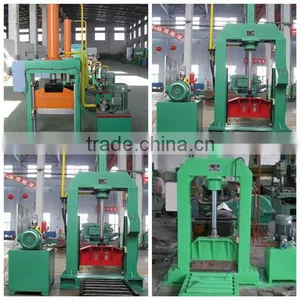

High efficiency rubber sheet cutting machine/
rubber sheet cutter with advanced quality
1.Usage
Rubber cutter is one of the most commonly used processing equipment in Rubber factory.It's usually used to cut the Nature rubber and Synthetic rubber block into small pieces to mix easily and meet the requirement of usage.
XQL series single blade rubber cutting machine have the feathure of compact structure,easy operation,less quick-wear parts and easy maintency.It is one of the necessary raw material processing equipments for rubber factory.
2.Main technical parameter
Model | XQL-80 | XQL-125 | XQL-160 | XQL-240 | XQL-50W |
Width of cutting blade(mm) | 660 | 760mm | 860 | 860 | 660 |
Stroke of cutting blade(mm) | 660 | 660 | 660 | 660 | 300 |
Number of cutting blade | 1 | 1 | 1 | 2 | 1 |
Oil cylinder pressure(KN) | 80 | 125 | 160 | 240 | 50 |
Time of cutting stroke(S) | 14-18 | 16-18 | 14-18 | 16-20 | 8-10 |
Motor power(KW) | 5.5 | 5.5 | 7.5 | 11 | 4 |
Overall dimension(L*W*H) | 1800*500*2150 | 1800*500 *2150 | 2200*500 *2150 | 2000*700 *2400 | 1600*1000* 1300 |
Note |
|
|
| Falling off with rubber block | Horizontal type |
3.Feathure
a.Cutting blade:uses good quality alloy 9CrSi,which is wear-resistance,sharp,and high hardness.
b.Oil cylinder:adopts the professional high pressure steamless steel pipe as cylinder block.The piston-rod uses 45# steel plated hard chromium after the refined grinding to be high wear-resistance degree and good toughness.Sealing ring is made of superior quality rubber with high wear-resistance,oil resistance and anti-aging,which has long life and good sealing.
c.Frame:It is welded of international channel steel with high tensile properties and non-deformation.There is a lead protector installed in the bottom of cutting blade to prevent the damage of the blade.It can be used repeatedly after heating.
d.We can design and manufacture non-standard special equipment according to your reuirement.
4.Our Service
- The guarantee period is one year;
- 24 hours technical support;
- Offer lifetime service and spare parts;
- Technique training is free of charge
5.Our advantages
- We are very near from Qingdao Port and the transportation cost can be greatly reduced.
- We can design and manufacture standard and non-standard machinery according to your demand.
- We have our own factory and you can visit our factory at any time.
- Our quotes are vrey objective and have no price difference.
6.Our company
Qingdao Bojia Machinery Manufacturing Co.,Ltd is one professional machinery manufacturer. Our company have one good and high quality design and manufacturing technology development group,often communicate with the customers and technology authority departments of rubber industry,constantly to improve and update our products which can meet the requirements of customers:Our company guarantee to provide you excellent pre-market sale and after sale service,timely technology information consulting,accessories and consumable parts supply etc,also can design and manufacture various non-standard products according to users requirements.
Our main products are:Conveying belt molding machine series:Batch off cooling machine series:Cushion cloth renovating machine series:open mixing mill series:Vulcanizing press series:Rubber cutting machine series:Rubber slitting machine series:Logitudinal cutting machine series:Conveyor belt machine series:Other rubber machines:Design and manufacturing of automatic production line.
Bojia machinery company always pursue”quality first,customer first”principle to offer high-quality products and excellent service,welcome new and old customers to visit our company.
If you have any questions,please contact me and welcome to visit our factory.
Telephone:18561911597;
Skype:live:alice_3407
