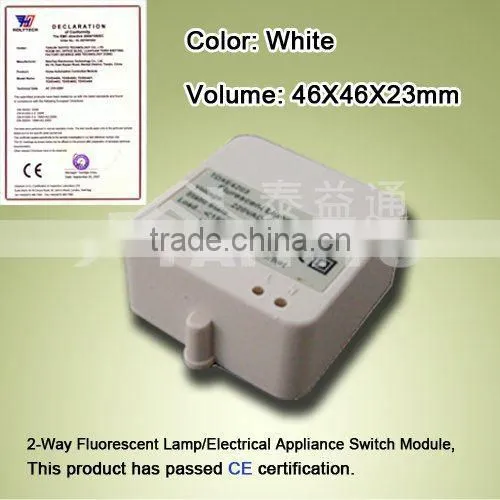

Help CenterTAIYITO TDXE4404 2-way Fluorescent Lamp Module /Appliance Module
Related Products
-
TAIYITO Home Automation System X10 Signal Touch Screen Switch/wall Mounted Switch/touch Switch/touch Panel SwitchUS$ 30 - 50MOQ: 1 Piece -
TDXE4404S Touch Screen Switch /accept X10 Signal/wall SwitchUS$ 30 - 50MOQ: 1 Piece
-
TAIYITO TDXE4404S Home Automation Two Way Touch Screen Switch /remote Control Switch/wall SwitchUS$ 30 - 50MOQ: 1 Piece
-
TAIYITO TDXE4404 Home Automation Two Gang Remote Control Lamp /appliance ModuleUS$ 15 - 20MOQ: 1 Piece
-
TAIYITO TDXE4401S Home Automation Remote Control Wireless Signal Dimmer Lamp SwitchUS$ 20 - 40MOQ: 1 Piece
Specifications
x10 bidiectional communication in PLCBidirectional communication by power line in high speed with the feedback function
Features:
l Bidirectional communication by power line in high speed with the feedback function
l Join with any type of switches, and plug-in panel.
l Ultra-slim design. Dimension:46X46X23mm
l Easy use and quick setup. Can finish learning within 6 seconds.
l Use noise filter circuit inside
l Commands ALL ON/OFF for lamps.
l Command ALL OFF for electronic appliances.
Technical Specification:
l Rated Voltage & Frequency: 220VAC±10%,50Hz
l Maximum Load Two loads≤600W
l Static Power<0.5W
l Operating Temperature: -10~50°C
l Response Time for bidirectional signals≤ 2s
Set up the address:
(Notice: Please refer to the specifications of the remote firstly…)
Connect with the traditional switch (Need neutral wire inside the switch box)
l It shows to connect with the traditional mechanical switch. (illus 1)
l Continuously press one circuit of the switch (up-down) rapidly 6 times. Electrify first load. It beeps ’Di’ three times. Now pressing the switch will be no use, which means to enter the address setting state.
l Send the relative signal by controller. (e.g. by TDXE6648 LCD Multi-Function Remote control)
Note: If want to set the electrical appliance module, press the key ‘ALL OFF’
If want to set the fluorescent lamp module, press the key ‘ALL ON’.
l Where hear beep ‘DI’ one time. Send the relative address code by remote immediately.
l After receiving the signal, the first load will cut off. It will beep long sound ’DI’ one time. Succeed in learning.
l Same way for setting the second load as the above.
Notice:
1. If not setup it, the devices will not responds to the command ‘ALL ON’.
2.The Micro Module will exit the Program Mode to factory setting if no action is taken after 30 seconds (Factory setting: the first circuit show P01, the second circuit show P02).
Operation:
After set up the address, you can control it through the methods as bellow:
1. Can realize local control same as any traditional switch.
2. Any bidirectional or X10 controllers, such as our wireless remote, wall-switch centralized controller, telephone controller and intelligent control center etc.
Installation:
