Conveyor belt making machine / Conveyor Belt Vulcanizing Machine
- 20 Set / Sets per Month
- Qngdao
- T/T Credit Card
Product Details
Condition: | New | Type: | Other, Vulcanizer, Vulcanizer | Place of Origin: | Shandong, China |
Brand Name: | BOJIA | Model Number: | XLB-1400x10000 | Voltage: | 380V |
Power(W): | As requirement | Dimension(L*W*H): | 1400x10000 | Weight: | As customers requirement |
Certification: | CE SGS | Warranty: | 2 YEARS | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Conveyor belt making machine / Conveyor Belt Vulcanizing Machine
Main Usage
Conveyer Belt Vulcanizing machine is mainly used for vulcanizing giant conveyer belt such as nylon conveyer belt, common conveyer belt, anti-fire conveyer belt, wire rope conveyer belt etc.
Product Description
Conveyor belt vulcanizing machine is applied to manufacturing of transmission rubber belt, conveyer rubber belt textile core conveyor belt hydraulic press is applied to manufacturing of transmission rubber belt, conveyer rubber belt.
1. Model:. Made according to customer requirements.
2. Performance introduction:.
1). It is controlled by plc and touch screen for manual control and auto control. The auto control can realize many auto works such as mould closing, air exhausting, temperature control, vulcanization timing, alarming and discharging load when mould opening etc; the touch screen will timely show the temperature of the heating platen at each heating zone.
2) .the hydraulic cylinder is made of zg270-500, the ram is made of close-grained chilled alloy cast iron by casting and fine grinding; the hydraulic cylinder is well sealed by yx shape sealing ring.
3).the guard edge of heating platen adopts hydraulic pressure automatic prop up iron, under the function of four oil cylinder, the iron cushion at two sides of the lower platen will advance and retreat at the same time; there are anti-superpose iron cushion device at the two sides of platen.
4) .there is a set of valve group of temperature adjuster on each heating area for the platen. Under the controlling of plc, it can guarantee the even temperature of each heating area.
5) .hydraulic pressure system: we adopt the famous brand hydraulic pressure station from the domestic and abroad, under the controlling of PLC.
Technical Parameters
Model | XLB-1100*5700 | XLB-1400*5700 | XLB-1400*10000 | XLB-1600*8500 | XLB-1600*10000 | XLB-2000*10000 |
Plate size | 1100*5700 | 1400*5700 | 1400*10000 | 1600*8500 | 1600*10000 | 2000*10000 |
Total pressure | 17.55MN | 25.00MN | 49.00MN | 47.60MN | 56.00MN | 70.00MN |
Plate pressure | 2.8 Mpa | 3.13 Mpa | 3.5 Mpa | 3.5 Mpa | 3.5 Mpa | 3.5 Mpa |
Diameter of piston | 500 mm | 360 mm | 450 mm | 500 mm | 450 mm | 600 mm |
Piston number | 5 | 10 | 20 | 14 | 18 | 16 |
Piston stroke | 520 mm | 400 mm | 300 mm | 300 mm | 400 mm | 300 mm |
Working layer | 2 | 2 | 1 | 1 | 2 | 1 |
Clamping force | 0.50 | 0.72 | 0.90 | 0.6 | 1.20 | 1.20 |
Drawing force | 0.40 | 0.60 | 0.80 | 0.5 | 1.10 | 1.00 |
Steam pressure | 0.63 Mpa | 0.63 Mpa | 0.63 Mpa | 0.63 Mpa | 0.63 Mpa | 0.63 Mpa |
Cooling pressure | 0.3 Mpa | 0.3 Mpa | 0.3 Mpa | 0.3 Mpa | 0.3 Mpa | 0.3 Mpa |
Operation system | PLC | PLC | PLC | PLC | PLC | PLC |
Application | nylon rope belt conveyor, PVG/fabric such as core parallel tape. |
We can also design and produce according to customer's demand

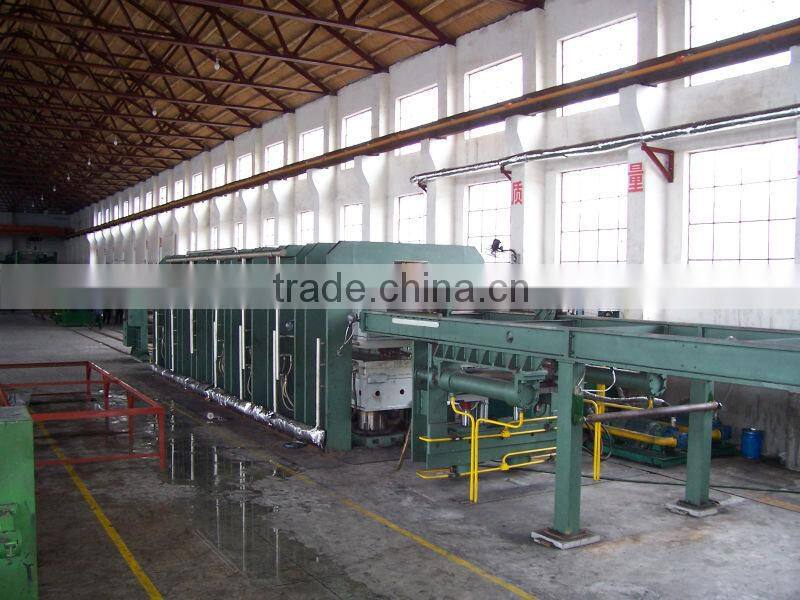

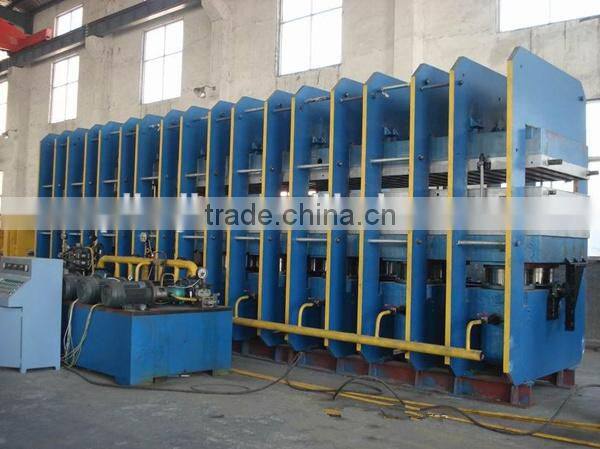

Picture Show
1. Professional for all kinds of rubber machines ;
vide two years quality guarantee and long-term technical support;
3.provide all kinds of rubber machine: Vulcanizing machine, hydraulic press, baling press, foaming press; conveyor belt production line, sidewall belt production line, conveyor belt forming line; Batch-off cooler (cooling line); rubber cutter etc;
ducts have been exported to all around the world, such as America, France, Canada, Australia, Southeast Asia, and the Middle East.
Pls send message to us if you are interesting our product or have any inquestion. Welcome to make a field inspection of our factory.
