Door Electronically Controlled Lock

Specifications

Feature

Model: L9206-M1

1. Stainless steel panel plus modern style sensor window(plastic)
2. Low consume,high sensitive RFID Technology PCB board.
3. PCB board built-in buzzer and self-detect light.
4. RFID Mifare 1K technology, contactless working
5. Low Battery Voltage warning(beep and red light)

6. 5 latch mortise model-K2S
7. Free-engage handle while locking
8. Powered by AA battery x 4PCS for 10-12 months' life

9. Mifare 1K S50 card required,100,000 times write life.
10. Audit trail records the latest 800 lock transactions.
11. Passage mode activate by passage card for meeting case
12. Our own Hotel lock system(free) required
13. 40mm-50mm thickness door

Parameters

1. Model:  L9206-M1

 2. Power: LR6 (AA)battery x 4pcs

3. Low power alarm voltage:4.8V

4. Communication: 13.56MHz RFID(with keycard)/infrared (with LMA or WDR)

5. Card support: MIFARE® S50 plus S70

6. Working Distance: 45mm Max

7. Working Tempreature: 0-60°C

8. Working Humidity: 15~85%RH

9. Static current: < 30uA

10.Working current: < 150mA

11.Memory: 800 Transactions include Time/Date/Card ID/Card type/Room ID

12.Software: Our own Hotel lock system™

13.Gross Weight: 3.3KG

14.Package: 10pcs/Carton at 74.0X42.0X32.0CM

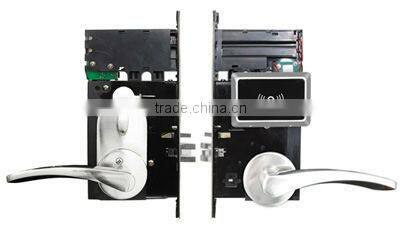

15.Content: Front/Back panel,mortise,cylinder,keyx2,battery-pack,manual/Strike
(no battery included, no card)

USEAGE

Guest card: Reception complete program Guest card by give a begin and expiry date for a room(rooms). Guest access room by read this card on lock

Master card:Hold by housekeeping to access to all rooms of hotels

Floor card: Hold by clean staff to enter the rooms in one floor.

Building card: Hold by manager to enter the rooms in one building

Passage card: Once this card been read on one door, this door could be acceess by without reading keycard

Emergency card: Enter the all rooms
