new gasoline outboard motor for fishing boat
(4-20hp) with CE
duct:

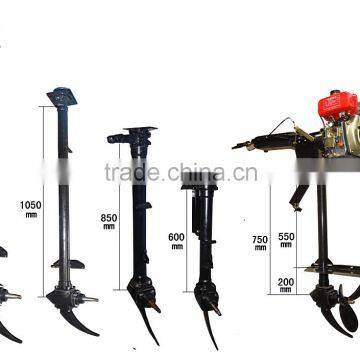

2.DEMO FIGURE
3.Technical Specifications
| MODELS | 7GX-4.4 Gasoline outboard engine | |
| ENGINE TYPE | SINGLE CYLINDER, HORIZONTAL TYPE, FOUR STROKE, AIR COOLED, OHV | |
| Bore x Stroke (mm x mm) | 70×55mm×mm | |
| Displacement (L) | 0.212L | |
| Rated Speed of Output Shaft | 1560r/min | |
| Max.torque(N•m/rpm) | 12.5N.m/2500r/min | |
| Fuel Consumption(g/kW•h) | ≤395 | |
| Power | Rated Output KW/Ps | 4.4KW (6P) |
| Direction of Output Rotation | Anticlockwise (from the output side) | |
| Valve Clearance (mm) | Intake valve :0.1-0.15mm Exhaust valve: 0.15-0.20mm | |
| Starting Way | Recoil Start/Electric Start | |
| Fuel | Fuel Capacity(L) | 3 L |
| Mark | 93# | |
| Engine Lubrication | Method of Lubrication | Pressure Splash Compound |
| Lubrication Oil | SAE10W-30, Level CC above | |
| Lubrication Oil Capacity(L) | 0.6L | |
| Engine Size (LxWxH) (mm) | 330×375×336 | |
| Engine Net Weight (Kg) | ≤16Kg | |
| Machinery Net Weight (Kg) | ≤52Kg | |
| Speed of Impeller | 1560r/min | |
| Diameter of Impeller | 350mm | |
| Transmission Fluid | Middle Duty Industrial Gear Oil HL-20 | |
| Transmission Capacity | 3L | |
| Applicable Scope | 4-6 Meters Ship,Maximum load 2 tons | |
4.Functions added

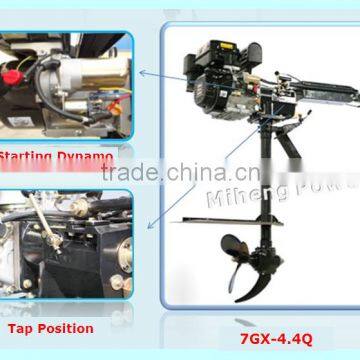

5.Product details
6.Modern workshop and new office.
7.Certificated
8.MIHENG outboard engine
9.Comparison between old and new type of outboard engines
10. Delivery
11.Made in china.
Q: Why choose MiHeng Outboard Engine?
No second company have same products with us, we specialized in fishing boats.
Products quality can be guaranteed.
We have certificates such as CE, EU, GS, EPA, CARB, CSA, UL, ROHS, ISO9001:2008 etc.
Are you the factory or trading company?
We are the manufacturer and exporter.
Q: Can we visit your factory?
A: Certainly. Welcome your visit.
Are all your products with 4-stroke?
Yes,at present, we all have 4-stroke outboard engines.
What's warranty period?
1 year for non-commerce users and 3 months for commerce users.
Can you supply spare parts?
Yes, as we are the original manufacturer.
Have you tested each piece before delivery?
Yes. At least 1 hour for each pc.
Q: Transportation?
Port of loading: Chongqing port / Shanghai / Shenzhen.
Shipping Services: as customers’ requirements, by sea / air /DHL etc.
Q: Do you have minimum order requirements?
A: No, according to client’s need.
Q: How to ensure the cargo quality?
A: We will provide bulk sample before shipping. They can represent the cargo quality
Q: What’s the payment method?
A: T/T is highly appreciated. Accept USD.
Western Union / Money Gram / PayPal: Quickly to the account, Priority in delivery
"Quality first, Client uppermost, Satisfaction of client's need" is our aim.
We look forward to serving you.
Please contact us:
Miheng Power Machinery Co., Ltd.
Annabelle wu-- Sales representative
Tel:8613983947926
Email:cqmihengpower1(AT)
Skype:Annabellewu19911113
Whats App:86139839479256
Facebook:annabellewu1113(AT)
Wechat:wj19911113
