Specifications
Rubber sheet cooling machine
1.CE,SGS,ISO cetification.
2.PLC controll.
3.Low noise high efficiency.
4.Two types of structure.
Packaging&Delivery
Packaging details:Standard export wooden packaging 20G/40G container or according to your request.
Delivery: Within 30 days after receiving the deposit.
Automatic Unfolding Pressing Rubber Sheet Cooling Machine/
Batch Off Cooler With Factory Direct Price
1.Usage
The Batch-off cooler is used for cooling,folding and depositing the rubber which comes from the opening mill or twin screw extruder.
2.Structure
1)It is mainly consisted of main engine and electrical control system.
2)The main engine is consisted of joint,printer,longitudinal cutting device,insulator cooling,lifting device,hanging sheet cooling,automatic swing device,weighing,the rail,platform and the supporting frame,etc.Electrical control system is made up of main-control box,which sets up emergency device at the key point.
3)Rubber sheet collection contains:rubber sheet folding and unfolding, rubber sheet cutting and automatic display,rubber winding type.
3.Advantage
Customer can choose high configuration or low configyration according to the actual needs.The high configuration rubber sheet cooling line is equiped with hydraulic automatic folding and unfolding device,whose the rubber stack is tidy and the tidy rate ≤
100mm.The material tray can automatically
input and output three working device,automatic rubber picking,automatic measuring and cutting device and automatic measuring and winding device.Unmanned operation can be realized and it is a high degree of automation.
4.Our Service
1)Two years warranty.
2)24 hours technical support;
3)Offer lifetime service and spare parts;
4)Technique training is free of charge
5.About Batch-off Cooler Unit Price
The price basis on the following factors
1)Type:Overhead or floor-standing.
2)Length:the suitable length for your plant.
3)Fan's quantity:the suitable quantity of fans you need.
4)Automatic device:suitable selection of automatic device.
6.Technical Parameter
Model Main Parameter |
XPG-600~700 |
XPG-800~1000 |
Suitable sheet specification | (4-12)x600~700 | (4-12)x 800~1000 |
Max linear speed(front conveyor belt) | 40m/min | 40m/min |
Hanging rail moving speed | 0.117-2.2m/min | 0.117-2.2m/min |
Axial flow fan | 0.37KW 5760m3/h | 0.37KW 5760m3/h |
Amplitude and frequency of the rubber | 1.3m 10-16times/min | 1.3m 10-16times/min |
Rubber temperature after cooling | ≤Room temperature+5℃ | ≤Room temperature+5℃ |
Variable motor of lifting device | XWD1.5-3-1/11 | XWD7.5-7-1/43 |
Variable motor of folding device | XWD1.1-5-1/87 | XWD1.1-5-1/87 |
Hanging rubber rail distance | 160 or 101.6 | 160 or 101.6 |
Max height of rubber hanging | 1400mm | 1400mm |
- We can design and manufacture all kinds of Standard and Non-satandard rubber machine according to your demand.

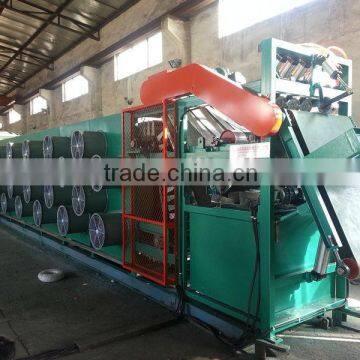

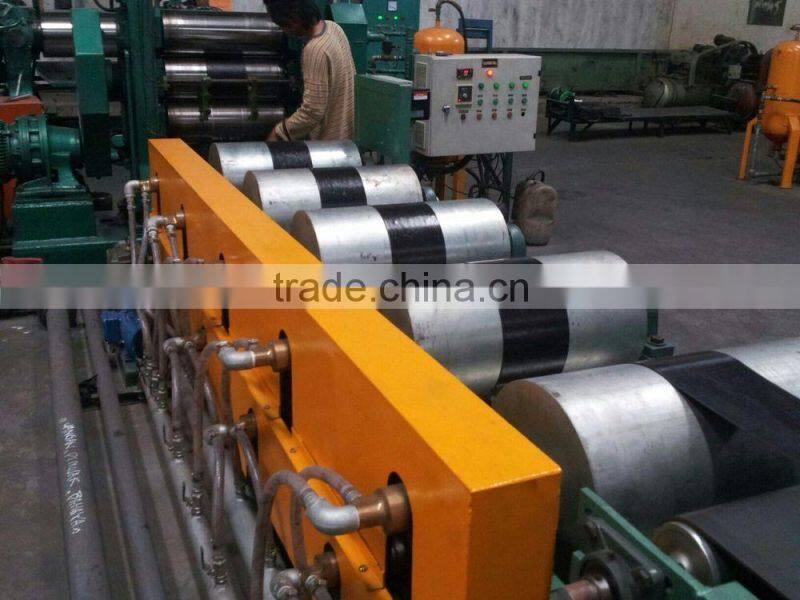

7.Picture Show
Qingdao Bojia Machinery Manufacturing Co.,Ltd is one professional machinery manufacturer. Our company have one good and high quality design and manufacturing technology development group,often communicate with the customers and technology authority departments of rubber industry,constantly to improve and update our products which can meet the requirements of customers:Our company guarantee to provide you excellent pre-market sale and after sale service,timely technology information consulting,accessories and consumable parts supply etc,also can design and manufacture various non-standard products according to users requirements.
Our main products are:Conveying belt molding machine series:Batch off cooling machine series:Cushion cloth renovating machine series:open mixing mill series:Vulcanizing press series:Rubber cutting machine series:Rubber slitting machine series:Logitudinal cutting machine series:Conveyor belt machine series:Other rubber machines:Design and manufacturing of automatic production line.
Bojia machinery company always pursue”quality first,customer first”principle to offer high-quality products and excellent service,welcome new and old customers to visit our company.
If you have any questions,please contact me.
Telephone:185 6191 1597;
Skype:live:alice_3407
