Top quality weld on hinges in the worldmore than 20 years production experinece
200000pcs production ability per month
Weld On Hinge is our company main product, we have more than 20 years production experience, all products for exporting market.
Base on so many years production experience,we can make the best quality weld on hinges in China, and best service to customers.
Weld-on hinges have specially designed leaves for welding installation. These heavy duty weld-on hinges have the same function as a slip joint hinge, but with a higher load rating and faster mounting. All weld-on hinges come with a bushing between the two leaves for easier mobility, with optional grease fitting for easier lubrication. A mill finish is standard on this type of hinge.
Please check the detail information about our weld on hinges as follows
FSP steel body with steel pin, brass washer without grease
FSP G/F steel body with steel pin, brass washer with grease
FBP steel body with brass pin, brass washer without grease
FBP G/F steel body with brass pin, brass washer with grease
FSS stainless steel body with stainless steel pin, stainless steel washer
AFSSP Aluminum body with stainless steel pin, stainless steel washer

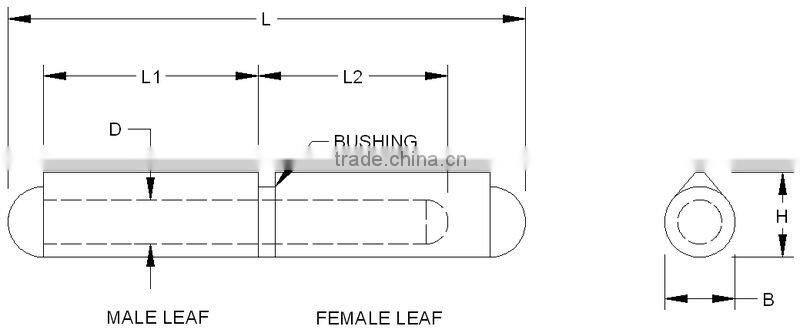

| Specification | Length | L1 | b | B | D | a |
| φ8×40 | 40 | 19.25 | 1.5 | 8 | 5 | 0.5 |
| φ8×50 | 50 | 24.25 | 1.5 | 8 | 5 | 0.5 |
| φ10×60 | 60 | 29 | 2 | 10 | 6 | 0.7 |
| φ11.5×70 | 70 | 34 | 2 | 11.5 | 6 | 1.0 |
| φ13×80 | 80 | 39 | 2 | 13 | 8 | 1.5 |
| φ13×90 | 90 | 44 | 2 | 13 | 8 | 1.5 |
| φ16×100 | 100 | 49 | 2 | 16 | 10 | 2.0 |
| φ16×120 | 120 | 59 | 2 | 16 | 10 | 2.0 |
| φ18×135 | 135 | 66.5 | 2 | 18 | 12.6 | 2.0 |
| φ20×150 | 150 | 74 | 2 | 20 | 13 | 2.5 |
| φ20×180 | 180 | 89 | 2 | 20 | 13 | 2.5 |
| φ23×200 | 200 | 98.5 | 3 | 23 | 16 | 2.5 |
| φ28×260 | 260 | 128.5 | 3 | 28 | 19 | 4.0 |
