Waterproof IP66 HD 1.0mp 720p ip ptz camera cctv camera cctv
with P2P plug and play
Product Model: TDXWS7833
-
Technical Term:
HD: high definition, 720P(1280*720)
P2P: PNP, plug-and-play, a progress of interface technique, plug and play, no need people operate.

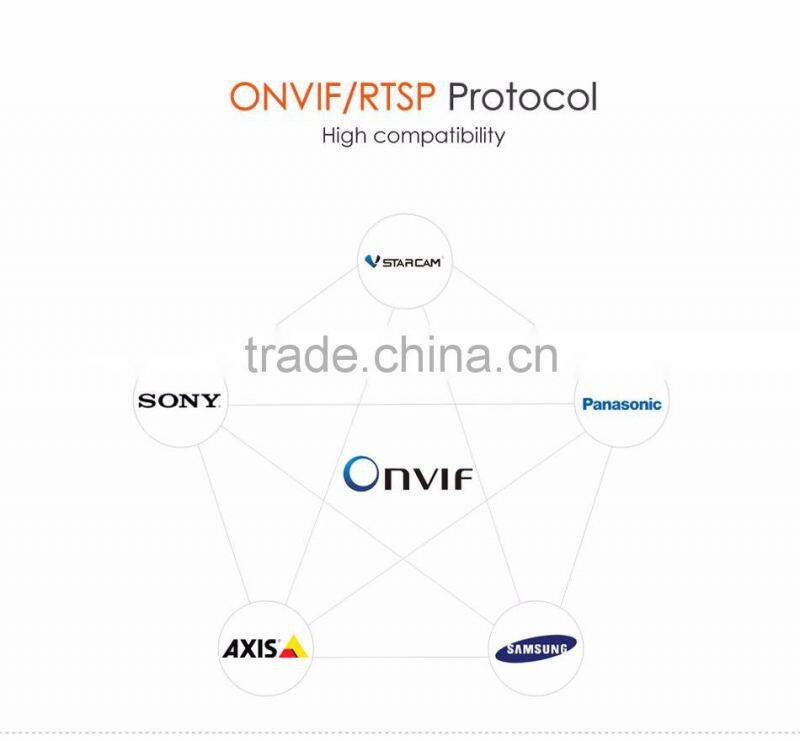

ONVIF: Open Network Video Interface Forum, The ONVIF specification will ensure interoperability between products regardless of manufacturer.
WIFI: Wireless Fidelity, wireless local area network, WLAN. Wireless local area network based on IEEE 802.11b/g/n.
Character:
1) Solution: Hisilicon 3507, OV10633
2) dual stream encoding(H.264/MJPEG)
3) 1/4inch 1.0 megapixel CMOS sensor

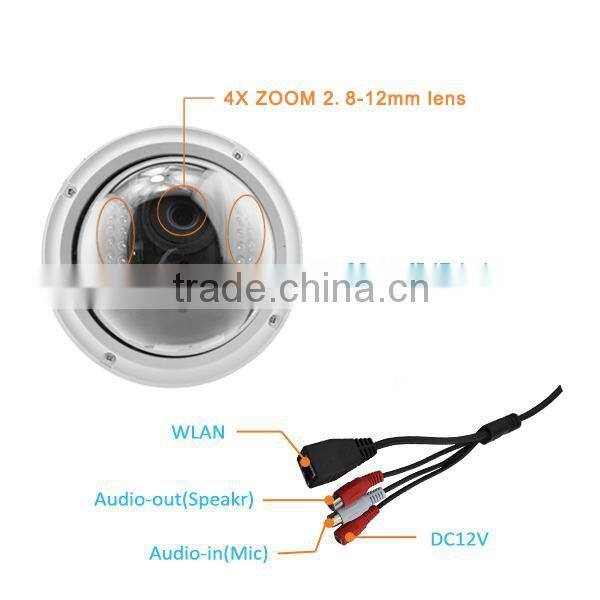

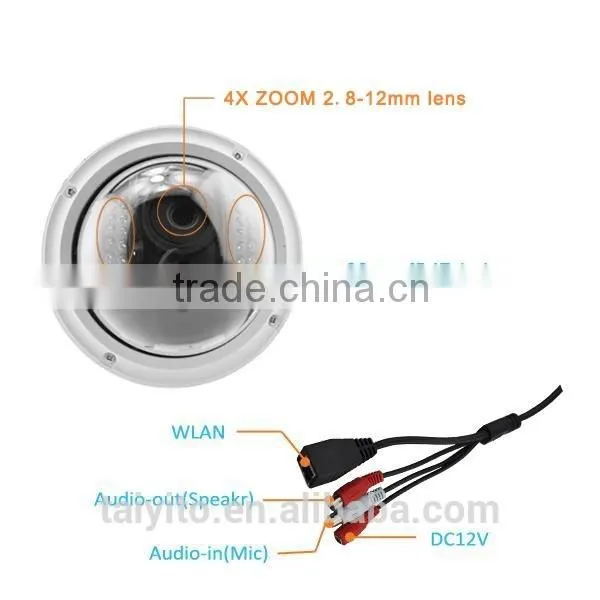

4) 4X Zoom MP lens 2.8-12MM
5) 15m ir distance for night vision
6) 720P(1280*720), full HD, 30fps
7) Multi-screen software and CMS
8) Supporting protocol: TCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,RTSP,P2P

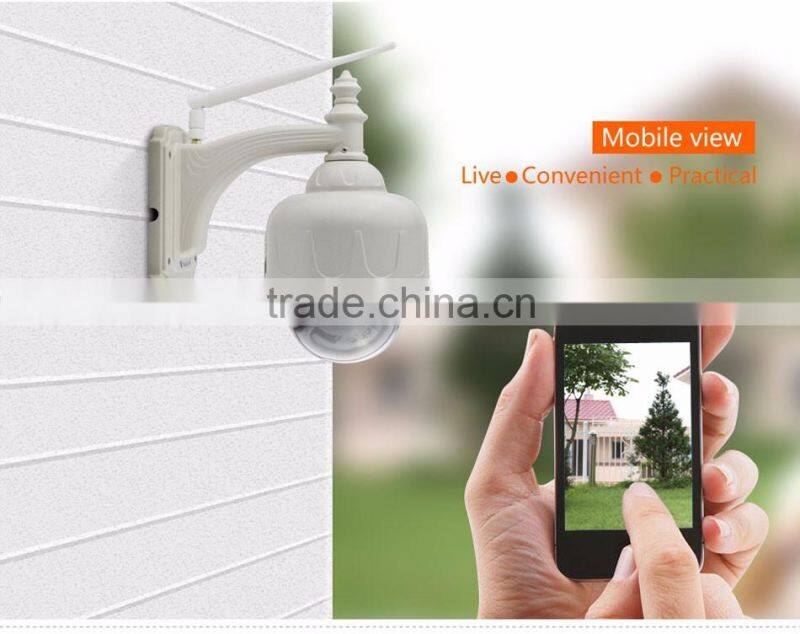

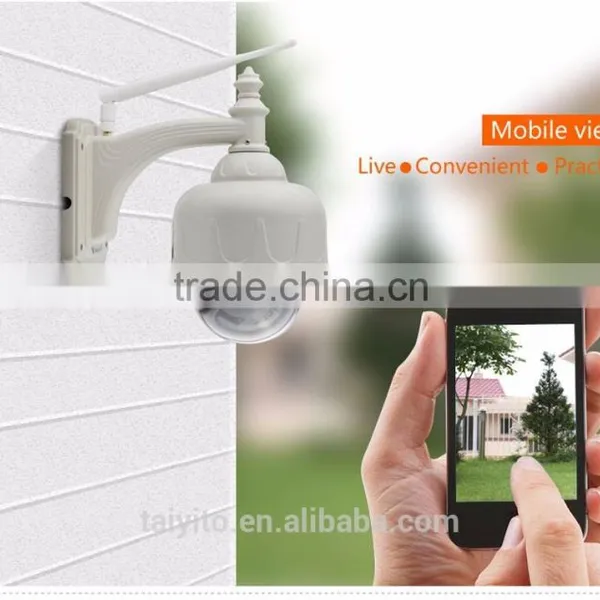

9) Motion detection trigger alarm, support two way audio, support visit by cell phone
10) Support P2P, ONVIF

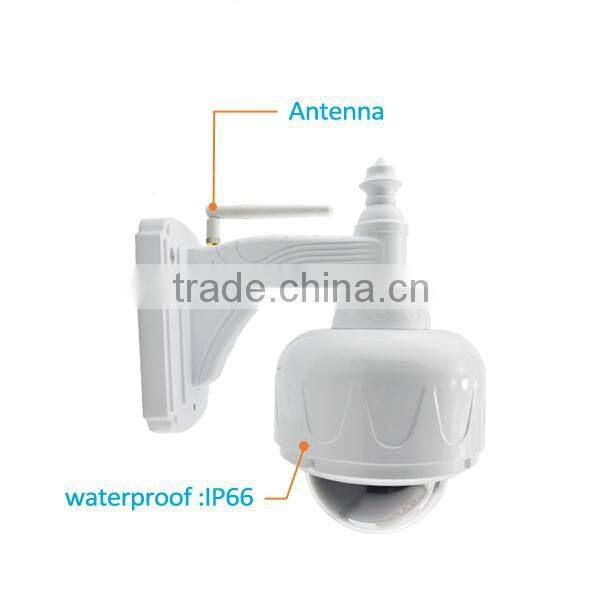

11) Waterproof: IP66
12) Color: whiteTechnical Parameters:
Name: zoom lens CCTV Camera/Dome PTZ HD CCTV Camera Feature
Feature
Auto focusing
System
OS
Linux Built in Linux
System security
Three level user authority management
Online user
4 user view simultaneously
DDNS
Free DDNS
Protocol
ONVIF 2.4protocol
Processor
Hisilicon processor,built in ARM926 @Max. 440MHz and high-speed video co-processor
Collect
Image sensor
1/4inch 720p Progressive Scan CMOS
Sensor performance
Support AWB, AGC, AE
Sensor size
3.84mm×2.16mm
SNR
≥39dB
Mini lumination
0.8Lux/F1.4(color mode),0.3Lux/F1.(B&W mode)
Lens/viewing angel
Night vision
Dual IR-Cut filter auto switch,22pcs 850nmΦ5mm LED,15m night vision
IR control
IR turned on: night vision view enabled, infrared ray, ICR auto detect.
IR turned off: night vision disabled, infrared ray off, ICR stay in day view mode.Video
Compression
H.264 Main Profile/H.264 Baseline Profile/MJPEG/JPEG Baseline
Video coding
720P@24fps+VGA@30fps+QVGA@30fps+720P @1fsJPEG snapshot
Resolution
720p/VGA/QVGA
Bit rate
CBR/VBR output bit rate range:128~4096kbps
Max frame rate
30fps/24fps(720p)
Image adjust
Brightness, Contrast, Saturation, Sharpness are adjustable
Network
Interface
10Mbps/100Mbps self-adaptable/RJ45 port
Protocol
TCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,RTSP,P2P
WiFi
WiFi802.11b/g/n
WiFi configuration
Software setup
Storage
Storage mode

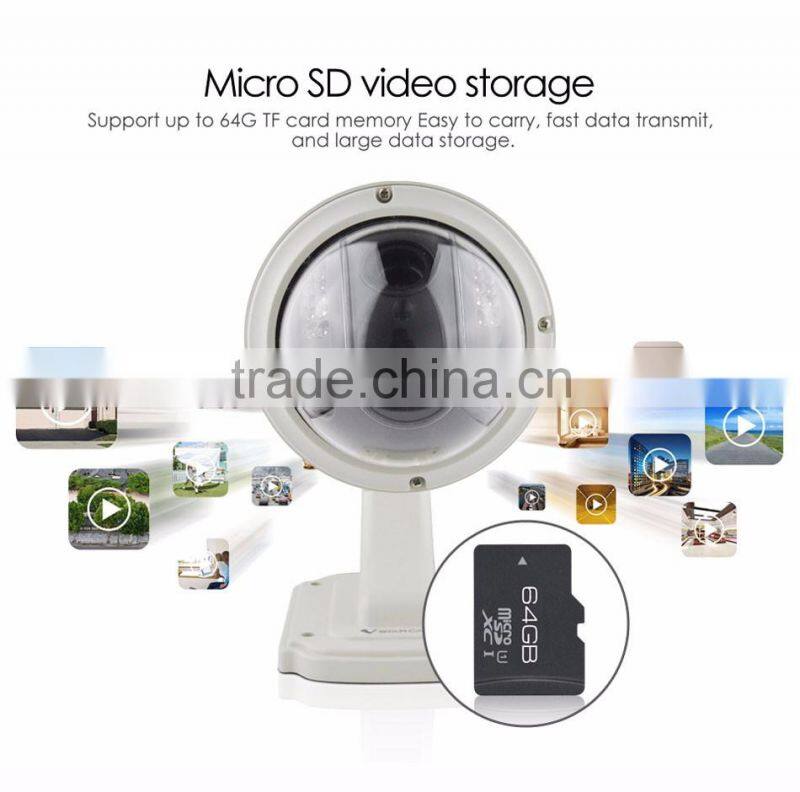

Local/client storage,up to 64GTF card.
Interface
Micro SD
PT
Rotate angel

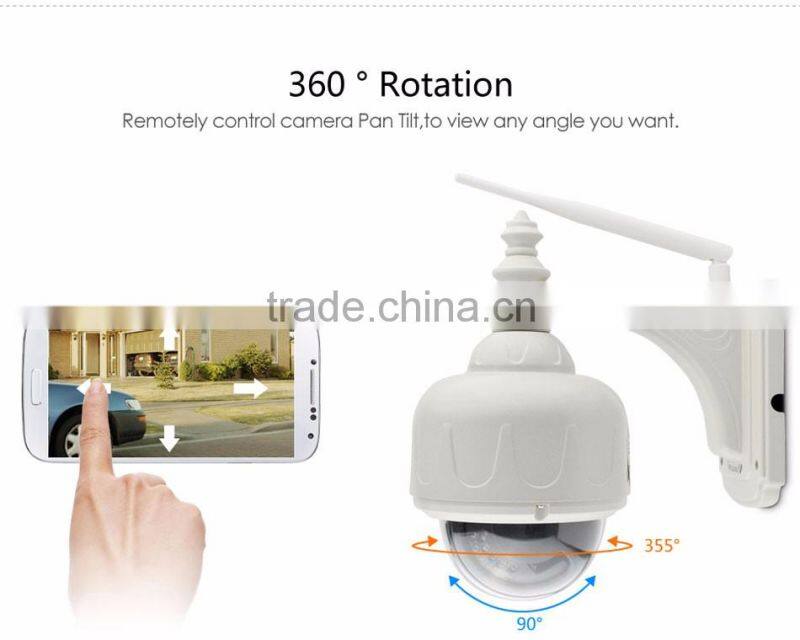

Tilt:85°,Pan:355°
Preset position
16 preset positions
Alarm
Alarm detection
Motion detection
Alarm action
image E-mail/FTP upload/smartphone push
Physical index
Rated voltage
DC5V2A±03V
Power comsumption
Rated voltage:3.5W(IR turned on)/Max power consumption:7W(PT turned on)
Working environment
Working temperature:-10~50℃,working humidity<90%
Weight
Gross weight:1200g (only for reference)

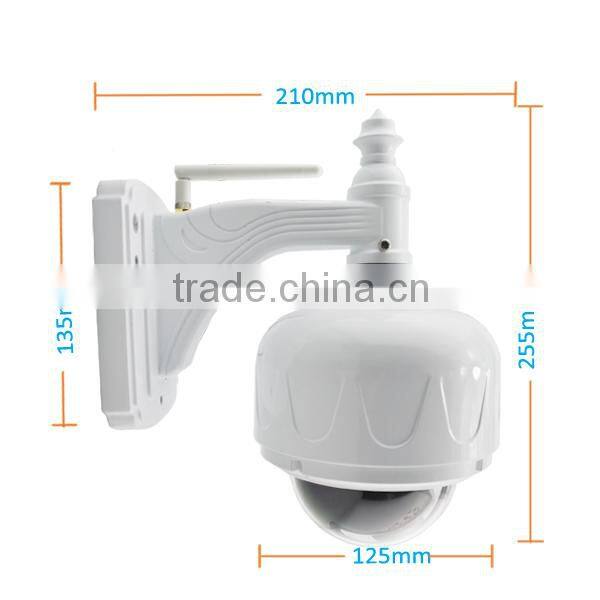

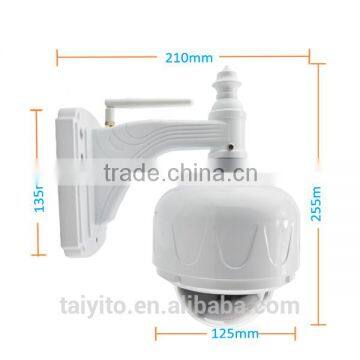

Packing size
250x170x260mm (LxWxH)
Note: Only for reference
| Certificate | ISO FCC CE RoHS |
Packing:
| Single Standard Carton package | 250x170x260mm (LxWxH) |
| Weight | Gross weight 1200g (only for reference) |
| Accessories | Power adapter, user manual, warranty card,mounting bracket,screws. |
Shipping:
Payment Way:
T/T, West Union, Ali Assurance, L/C, etc
Delivery Time:
Goods in Stock needs 6 working days, not in stock and for bulk order needs 7-20 working days.
OEM Service:
We could offer OEM and ODM services for our clients.
Quality Warranty:
1 years hardware warranty, whole life technical service for continue cooperating customers.
Why Choose Us:
Leading and professional manufacturer in CCTV industry
11 years R&D experience
Top-grade Quality
Competitive and reasonable price
Trustworthy service, Best pre-sale and after-sale service
Reliable warranty and lifetime maintenance
OEM ODM
ISO FCC CE RoHS certification
Our company TYT Smart Home was founded in 2006 as a hardware and software
design house specializing in specializing in wireless communication and
embedded systems apply to smart home technology field.
In recent years TYT has become a supplier of industrial networking solutions
nowadays focusing on developing and manufacturing innovative home and building
automation for energy-conscious customers and companies. Smart home not only
meet the needs of comfort security, but also the energy saving.
The smart system controlled by apps for IOS and Andriod system are
developed against the background of the future development of an
intelligent power network (“Smart Grid”).
