Product Application

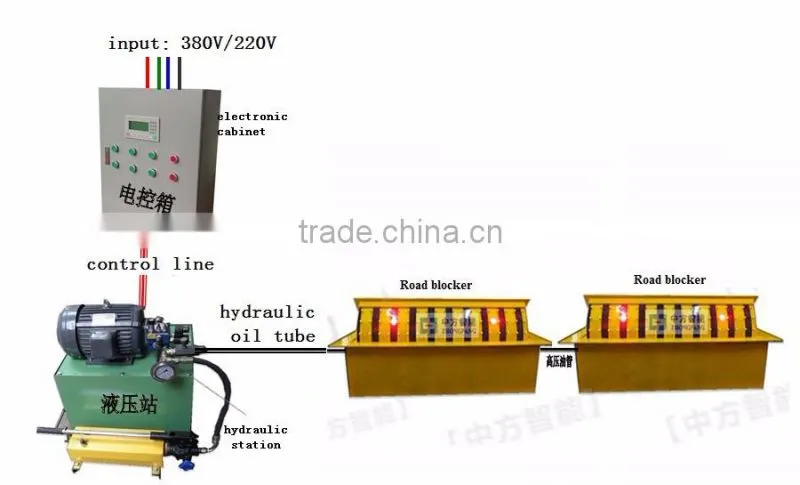

The whole length of road block (Tip and LED light optional)1000~6000mm, rising intercepted surface: 1000~6000mm, rising height : 350~800mm It is the rotary hydraulic road block machine which used to 1000mm~9000mm road vehicle access port. It can be linked with gate control system or used separately . The whole system is made up of main machine case , hydraulic transmission station and electronic control . We can offer custom made service to meet client ‘s requirement 。It is a special design used to prevent unauthorized vehicle from breaking into sensitive areas; practicability, reliability and high safety
Product Features:：
1 Solid and endurable structure
2. The system is safe, reliable and stable
3 Perform exactly and operate steadily, making the barrier low noise
4 The working environment is -20°C to 50°C
5 Low-pressure hydraulic driving mode making the barrier Low trouble rate, high reliability, long life cycle,
6 Easy maintenance, and the rate is low
7 Can combine with other control equipment making the barrier auto control
8 In case of electric failure or trouble, the movable barrier can be manually operated to return to the horizontal position, making the cars pass smooth
Main Technical Parameters :
1)System control ：electronic hydraulic
2)the largest traffic capacity is up to 80t。
3)Power supply ：220V/380（control voltage 24V）。
4)System Power (w)：1.5KW/2.2KW/3.7KW。
5)Rising time：≤3S（adjustable）。
6)Falling time：≤3S （adjustable）。
7)Working temperature：-25℃~75℃。
8)Storage environment：10℃~45℃, waterproof, moistureproof, dustproof
9)Material：A3 steel ，rust –proof paint。
10)Color：Multicolor optional
11)Machine size ：Length 4000×wide 1000×heigh 760 (mm) rising height：500mm(custom made)
12)weight：1.5ton
1 Solid and endurable structure
2. The system is safe, reliable and stable
3 Perform exactly and operate steadily, making the barrier low noise
4 The working environment is -20°C to 50°C
5 Low-pressure hydraulic driving mode making the barrier Low trouble rate, high reliability, long life cycle,
6 Easy maintenance, and the rate is low
7 Can combine with other control equipment making the barrier auto control
8 In case of electric failure or trouble, the movable barrier can be manually operated to return to the horizontal position, making the cars pass smooth
