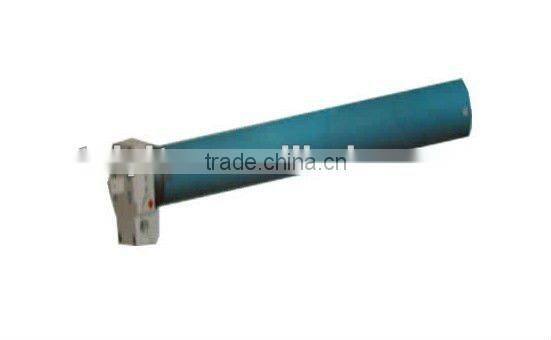

TDX4468(35N) Roller Blind Electric and Manual Curtain Motor

TDX4468(35N) Roller blind electric & manual curtain Motor(35N)

Major Features and Functions:
It is controlled product, and suitable for up and down-open curtain or drapery.

Installation:
Normally install it on the window left or right, with the track fix on the roof, need the standard socket for power supply. From the roof to ground 20-30cm need a socket A, inside the socket need 220V Naught wire, live wire, motor wire; from the ground 1.3-1.5m keep a standard socket as a local switch. The socket from A, B connect with three wires as a control wires.

1. In PLC system the bellowed products are all can work with it together:Use TDXE6648+ 48 Key LCD remote controller or TDXE6671 TFT Touch-screen remote controller and TDXE6438+ the transceiver together to realize the remote control of the curtain, if use the telephone controller or web controller can realize the function of long distance control etc.
2. In ZigBee system (leave out)
3. Independently remote control products:
You can use TDX4465 Curtain independently 3-way remote controller and TDX4464 Curtain independent controller can realize the function of independently remote control...

Function description:
after install the curtain motor and related products, you can realize the bellowed functions:
(1)     You can use remote controller to turn on/off the curtain in any direction of your home, and after your operation you will have the feedback.
(2)     If you are on the way home, you can make a call first to turn off the curtain.
(3)     If you travel for business, you can control your home other lamps and appliance by web controller.
(4)     This curtain motor module also can accept Scene control: for example, you only touch one key you can open the TV, water heater, and close the curtain in the same time.
(5)     Can accept the timing control.
And also no need to choose above big function, just use a mini remote controller to control this curtain.
