Specifications
electric curtain motor with remote controluniversal use for stage, home, office and so on
CE
1 Year Warranty
Quiet
Flat-open electric curtain system

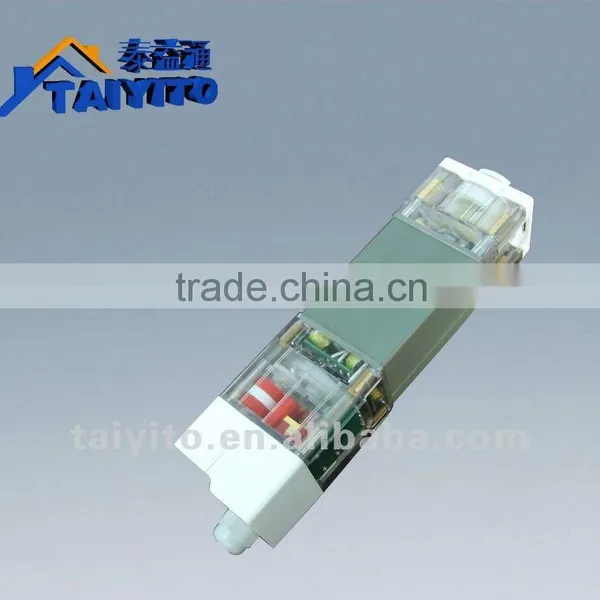

Electric curtain motor
Curtain track (1):
Curtain track(2):

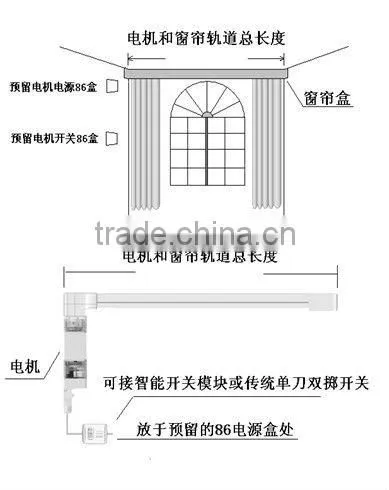

Construction of flat-open electric curtainL:

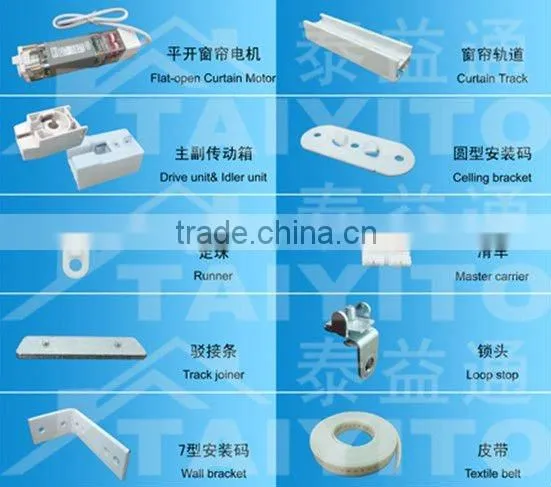

The electric curtain motor, track, and accessories:
Motor Specification
Working voltage: |
AC220V-240V 50Hz |
revolving speed: |
88.6r/min |
Work method: |
S3 |
Rated power: |
45W |
Insulation class: |
E |
Track length: |
15meter max |
Torque: |
1.2N.m |
Protection class: |
IP41 |
parts |
Main motor& Secondary motor |
Notice: the secondary motor need not setting the travel, but it should be used with the main motor
Features:
Can be protected while over-temperature.
Work voice: less than 43dB
Stability: In-phase transmission and speed invariable.
Application scope: drapery and canopy.
Matched track: straight and curve track.
Materials: transmission belt: Poly-aluminum
Track: Aluminum alloy
Attention Please:The length of Curtain drapery should be under 15m, and the weight of it should be less than 40kg; When the length of curtain track is over 6 meters, an extra motor is needed.
Installation: According to the user manual
Function description:
Can work independently, or simple remote controller, or use in intelligent system.
Independently:
1. After installed according to the user manual, the electric curtain motor can work as others
2. If you plan to control the curtain with remote, you only need a TDX4464 Independent switch controller, and a TDX4465 3-way mini curtain remote.
Working in the intelligent system (Smart home controlling):
1. Timing function:
A TDXE6438 Wireless timing transceiver can help you realize this function. And one of the following three remote controls is needed; they are TDXE6606 mini remote control, TDXE6648 48 keys universal remote, TDXE6671 LCD touch remote. Among this combination, you can time
Your curtains open or close at any time you want. It will save a lot of time and energy for you.
2. Telephone control function
You can open or close your curtain only by a phone call. After you install a TDX6626+ Long-distance telephone controller, you can control your curtains only with a dial to your phone in your house. What' more, you can check curtains’ status by this call.
3. Scene control
If you want to open or close all or part of your curtains at the same time only by pressing a button, you need a TDX6640 wall-mount centralized controller. Or you can turn on the TV, water heater and close the curtains in the meantime with the above wall-mount centralized controller.
