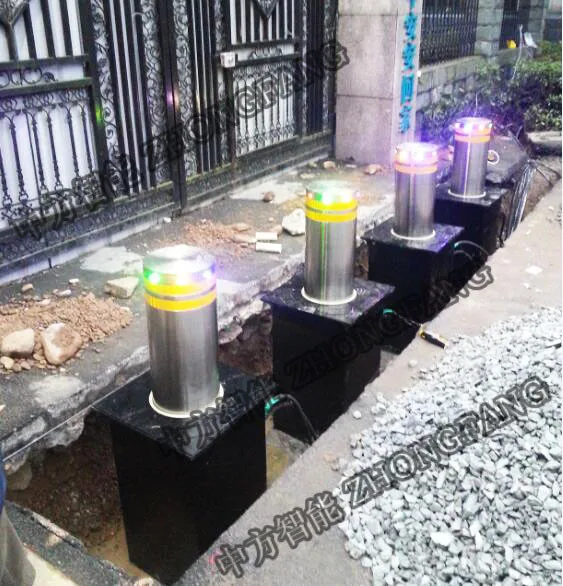

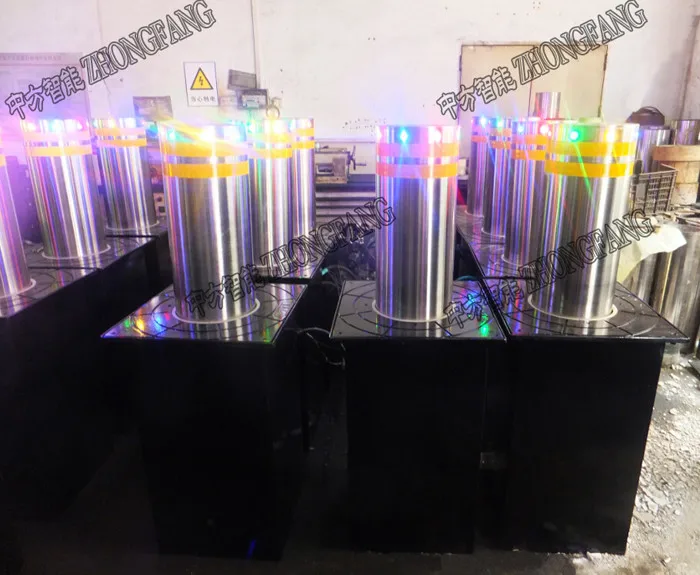

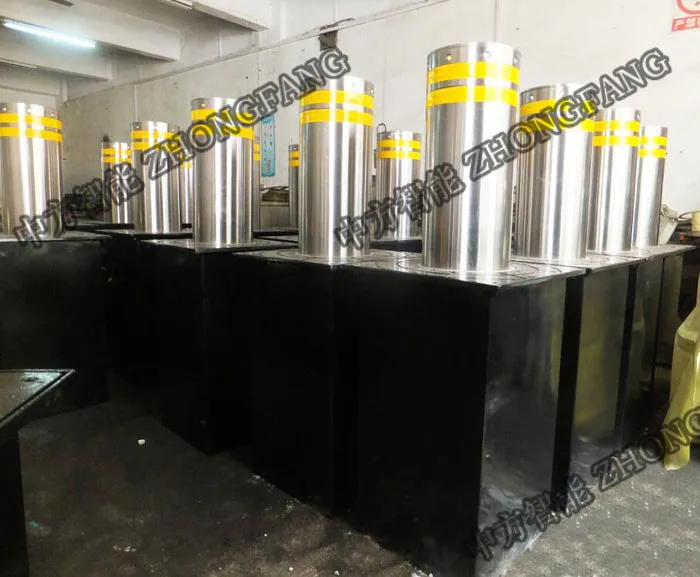

automatic rising bollard with bollard light

Product Application

      The automatic Bollard is an electric-hydraulic-mechanically operated retractable bollard system.
The system can be quickly and easily operated. It is suitable for both security and access control applications.
The system is designed to bring desired environmental and aesthetic enhancements to perimeter security, securing perimeter access without providing a sense of social disorder and active alarm measures. The system is designed to withstand impacts and still operate, giving high security levels to all sites. It is ideal for university campuses, pedestrian walkways, parking lots, government buildings, sports stadiums, amusement parks, airports, shopping centers, hospitals, and apartment complexes.

  Product parameters
1) System control :Electronic hydraulic
2) Power supply :220V
3) System Power (w):370,550,750W
4) Rising time :3-6s (Adjustable)
5) Fallowing time : 3-6s (Adjustable)
6) Working Temperature: -25℃~75℃
7)Storage environment：10℃~65℃, waterproof, moistureproof, dustproof

8)Color : Different color and grade of reflective film is available
9)Material :304 stainless steel ,A3 carbon steel
10)Bollard size(mm) :L500XW500XH870, rising height 600mm (custom made )
11)Diameter of bollard :219mm , thickness of bollard 6mm (8mm, 10mm,12 mm custom made )
12)weight :180 kg

Product Features:：
1 Solid and endurable structure
2. The system is safe, reliable and stable
3 Perform exactly and operate steadily, making the barrier low noise
4 The working environment is -20°C to 50°C
5 Low-pressure hydraulic driving mode making the barrier Low trouble rate, high reliability, long life cycle,
6 Easy maintenance, and the rate is low
7 Can combine with other control equipment making the barrier auto control
8 In case of electric failure or trouble, the movable barrier can be manually operated to return to the horizontal position, making the cars pass smooth

Electronic Control  Parts

Name: Electronic control cabibet

Brand: Zhongfang

Original: China

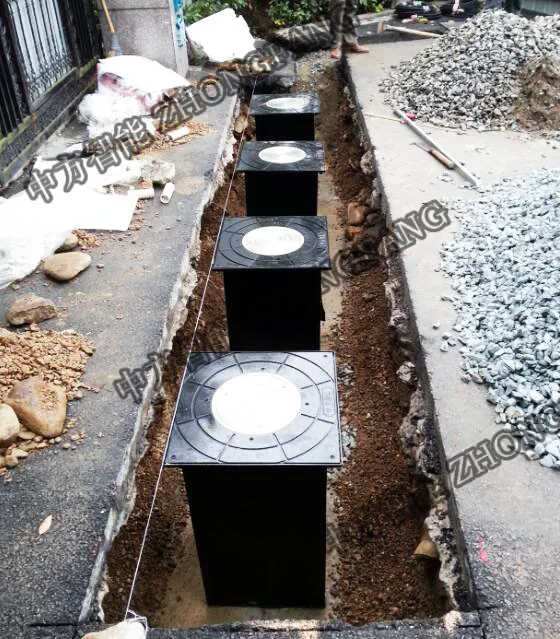

Bollard system connection
Brand:zhongfang
Original: China

Motor
