Specifications
new laser welding machine1.welding spot energy distribution
2.arbitrary trajectory of the automatic welding
3.OEM

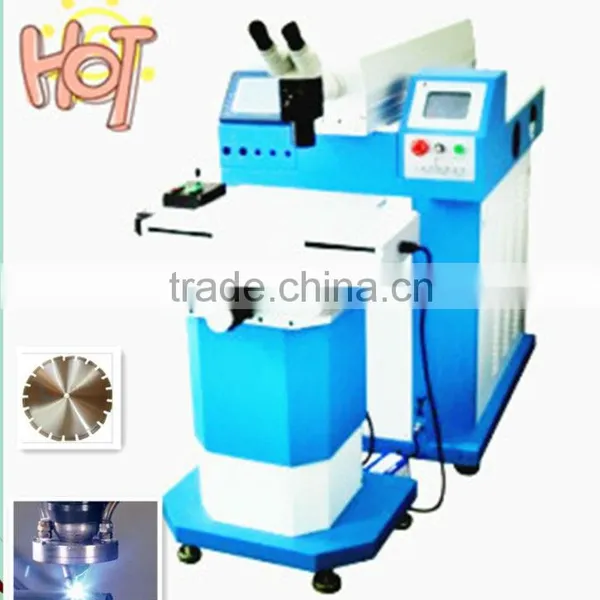

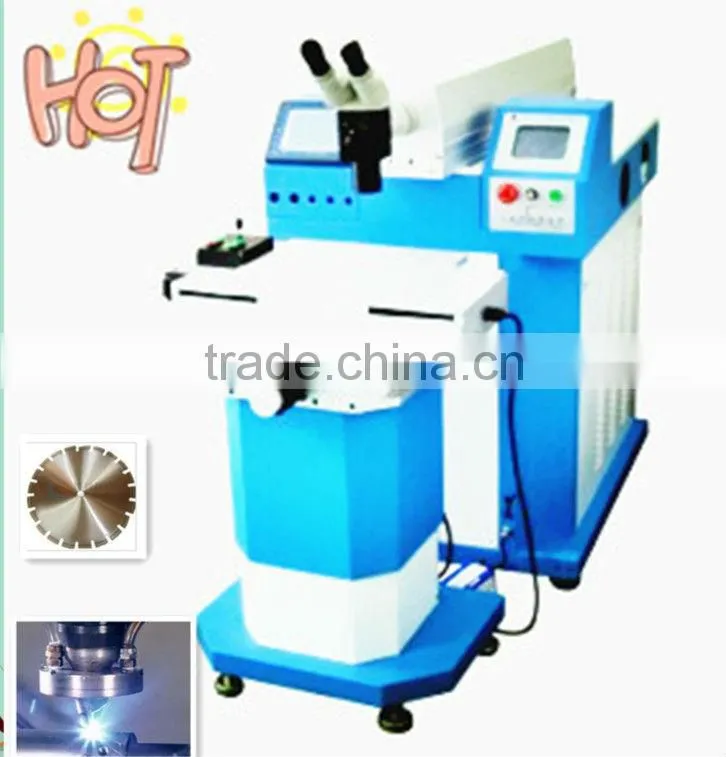

new laser welding machine
Machinery Description:
1.LB - W series laser welding machine adopts imported ceramic reflection cavity, using pulse xenon lamp incentives, current waveform controlled system switching power supply, power strong, pulse programmable and intelligent management. Industrial motion controller control, can be arbitrary trajectory of the automatic welding.
Performance Characteristics:
2.Based on design view of human engineering, Fine, beautiful, stable performance, suitable for long time continuous working, wider application r
Welding spot energy distribution uniformity,has the best welding spot.
3.Adopts the imported ceramic light-gathering cavity from the UK, corrosion resistance, high temperature resistant, long service life.
4.Welding of high efficiency, good effect, simple and convenient operation, applicable to any welding trajectory.
5. High power laser power, high power cooling system satisfies the 24 hours of mass production.
6. As well as manual welding, also can realize automation product batch production.
Technical Parameter
Model |
LB-W-180V |
LB-W-300V |
Laser Wavelength |
1064nm |
1064nm |
Light-gathering Cavity |
UK ceramic cavity |
UK ceramic cavity |
|
Max. Laser Power |
180W |
300W |
|
Pulse Length |
0.1-20ms |
0.1-20ms |
|
Laser Frequency |
0.1-30Hz |
0.1-30Hz |
|
Size Scope For Laser Dot |
0.3-2MM |
0.3-2MM |
|
Aiming Device |
Cross cursor and red dot preview(Optional part:camera system) |
Cross cursor and red dot preview(Optional part:camera system) |
|
Power Of Chiller |
1.5P |
3P |
|
Average Power Consumption |
6KW 6KW Single/3 phase |
12KW 6KW Single/3 phase |
|
Input Power |
Single phase 220V±5% /50HZ /30A |
3 phase 380V±5% /50HZ /40A |
|
Dimensions |
Host:700×1600×1300mm |
Host:700×1600×1300mm |
Application field
Laser welding can be used in titanium, nickel, tin, zinc, copper, aluminum, chromium, niobium, gold, silver and other metals and their alloys, and steel, kovar alloy, alloy welding between the same material.
Widely used in mobile communications, electronics, clocks and watches, glasses, jewelry accessories, metal products, precision instruments, medical equipment, auto parts, process gifts, etc.
New laser welding machine:
Welding Sample:
workshop appearance
