Help CenterAutomatic Co2 Laser SFP Wire Stripper
Related Products
-
SATA Co2 Laser Manual Wire StrippersUS$ 4,800 - 5,200MOQ: 1 Set -
HDMI Co2 Laser Copper Wire StrippersUS$ 4,800 - 5,200MOQ: 1 Set
-
HDMI Co2 Laser Electric Wire PeelerUS$ 4,800 - 5,200MOQ: 1 Set
-
USB Co2 Laser Mechanical Wire PeelerUS$ 4,800 - 5,200MOQ: 1 Set
-
Co2 Laser Mechanical DVI Cable Wire PeelerUS$ 4,800 - 5,200MOQ: 1 Set
Specifications
Automatic Co2 Laser SFP Wire stripperDurable 2 Co2 laser glass tubes
High precision and speed
Easy for operation
In stock

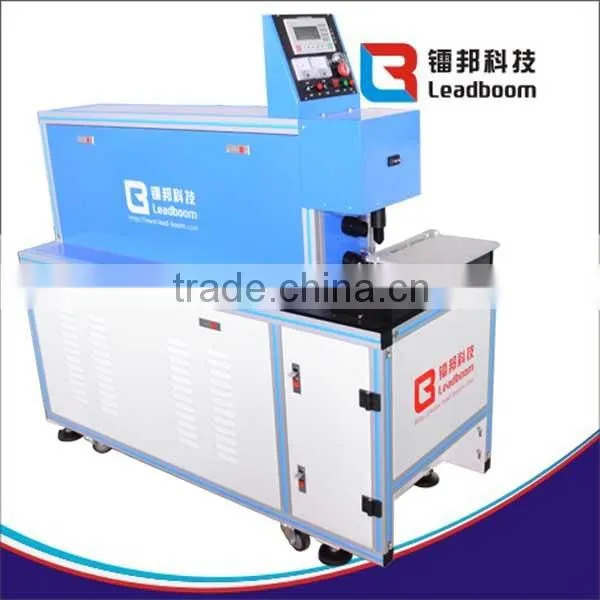

Automatic Co2 Laser SFP Wire stripper
| Working Line Width | 300m |
| Laser media | Co2 Laser Glass Tube |
| Laser Power | 60w x 2 |
| Location Accuracy | ±0.02mm |
| Max Wire Stripping Speed | 6000mm/min |
| Power Supply | Single phase AC220V/5HZ |
| Working table | Module transmission Platform |
| Power consumption | ≤1.5kw |
| Water way | Water cooling |
| Control System | PLC (Programmable Logic Controller) |
| Dynamic Focusing Device | Yes |
| Machine weight | 140kg |
| Machine dimension | 1700x600x1320mm |
Standard Accessories
Manufacturing process
|
| Inside of the laser stripping machine |
|
| Overlook of the inside of the laser stripping machine |
|
| Laser stripping line |
Laser stripping machine application:
non-mental materials, such as Polyvinyl Chloride, Glass Fiber, Polyester, Polyester Film, Nylon, Polyethylene,
Fluoride, Silicon Resin, and etc. It is especially used to cutting off the Aluminum Foil, Mylar and plastic foil on HDMI, USB, DVI, DP, SATA, and SFP.
|
| Laser stripping machine can cut off the AL foil, Mylar and PE insulation without causing any harm to the metal |
|
|
Laser stripping machine sample:
|
| Our laser stripping machine can strip 10000 pcs of this wire per hour |
|
Our Factory
|
|
| laser stripping machine | Laser cutting machine |
|
|
| Co2 Laser marking machine | Fiber laser marking machine |
Our Commitment
1.Online service.If any technical questions or problems,our engineers will
help to give you solutions by email or some online way.
2. Minimal one year for free warranty (include whole machine and spare parts)
3.Spare parts supplying on time or help fix the old parts.
4.Faster delivery,most of our products have stock and guarantee delivery within short time.
5.Free design and guide for customer6.Free software update
If you have any other question or need please ask me .I am always online for you.
