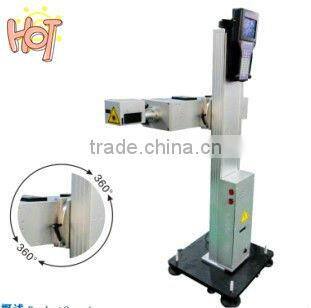

Help Center360 Degree Rotary Co2 Laser Marking Machine for Nonmetal
Related Products
-
LB-F Can Adjustable Lift Range Co2 Laser Marking Machine for SaleUS$ 8,200 - 10,000MOQ: 1 Set -
LB-F20 20W Co2 Laser Marking Machine on JeansUS$ 8,200 - 10,000MOQ: 1 Set
-
Fiber Optic Laser Marking System,fiber Machine for Marking,colour Laser Marking MachineUS$ 8,200 - 10,000MOQ: 1 Set
-
Fiber Laser Marker,end Pump Laser Marker,ytterbium Fiber Laser MarkerUS$ 13,200 - 18,200MOQ: 1 Set
-
2013 Perfect Effect Flying Online CO2 Laser Marking Machinery Floor Mats CarUS$ 5,000 - 10,000MOQ: 1 Set
Specifications
co2 laser marker for nonmetal1laser jet process fully automated
2various materials for ink-jet
3marking terminal choose PDA
CO2 laser marker for nonmetal
LB-F series laser marking machine (online flying marker), adopted imported CO2 laser equipped with imported high-speed galvanometer scanning system, triggered by the electro-optical sensors to signal laser marking job, using professional online flight marking control software, enables to mark product line. Laser code spraying machine can be directly with
factory assembly line work, 24-hour continuous operation,
ensure production efficiency greatly, without supplies, low power consumption.
Technical Advantage:
l Laser-Jet process is fully automated, high speed, high efficiency
2 Electro-optical conversion efficiency, low running costs, without consumable, no need for maintenance
3 Equipment performance stable, light systems and vertical position adjustment before and after, can be equipped with red light positioning indicating device.
4 Easy to operate, broad application area, suitable for various materials for ink-jet
5 Professional laser printing handle operation, easy to learn, completely work without the computer.
6 Control software supports automatic encoding, variable text, date, serial number, lot number, bar code and two-dimensional code printing, and can be modified according to customers ' different needs of production line flexibly.
7 compact configuration, can be installed easily and securely in almost all production lines, only need minor changes to meet the requirements of current production line
8 Marking the terminal also can choose a PDA.
Products Parameter
Model |
LB-F10 |
LB-F30 |
LB-F50 |
LB-F100 |
|
Laser Power |
10W |
30W |
50W |
100W |
|
Laser wavelength |
10640nm |
10640nm |
10640nm |
10640nm |
|
Highest produce speed |
300m/min |
300m/min |
300m/min |
300m/min |
|
Highest scratch speed |
1,000 w/se |
1,000 w/se |
1,000 w/se |
1,000 w/se |
Mark |
Can be marked on stationary or moving objects |
Can be marked on stationary or moving objects |
Can be marked on stationary or moving objects |
Can be marked on stationary or moving objects |
Printing ability |
unlimited |
unlimited |
unlimited |
unlimited |
|
Font |
Unlimited within the print range |
Unlimited within the print range |
Unlimited within the print range |
Unlimited within the print range |
|
Adjustable lift range |
0~1000mm |
0~1000mm |
0~1000mm |
0~1000mm |
|
Power consumption |
≤600W |
≤800W |
≤2KW |
≤3KW |
Power supply requirement |
220v/50HZ |
220v/50HZ |
220v/50HZ |
220v/50HZ |
Products Aplication:
This machine can be applied in beverage brewing, pharmaceutical care, food, chemical, electronic and electrical appliances etc.
CO2 online flying marking machine:
Sample pic:
workshop appearance
