Specifications
CO2 laser marker price1.USA RF metal laser tube
2.BMP,JPG,DXF,PLT,AI
3. rotary marking ,XY platform segment
CO2 laser marker price
LB-MC series laser marking machine with advanced CO2 RF laser and high stability
of laser power, with high quality optical device, automatic control system driver high-speed scanning galvanometer system.
Technical Advantage
1.Adopt With USA RF metal laser tube which is characterized by excellent beam quality, stable performance and long using lifetime(2 million hours ), running lifetime can reach to 2—3 million hours .
2.high accuracy and speed of engraving , the performance is extremely stable, support long time continuous work.
3.no consumables, cost low , is the first choice to replace the traditional inkjet printer .
4.Laser power utilization rate is good, and can be applied to a variety of nonmetal products in sculpture, and cutting.
5.Mark clear, not easy to wear, can engrave and cut effectively , protect environment and save energy.
Software Function
1.Support BMP,JPG, DXF,PLT, AI and other documents.
2.Can form serial number, production date, bar code and two dimension code automatically .
3.Support the flight marking.
4.Support the rotary marking.
5.Support large area XY platform segmentation marking automatically .
Technical Parameters
|
Type |
LB-MC10 |
LB-MC30 |
|
Laser Power |
0~10w 0~10w serially adjustable |
0~30w 0~30w serially adjustable |
|
Laser wavelength |
10.64μm |
10.64μm |
|
Pulse frequency |
≤50kHZ |
≤50kHZ |
|
Working area |
70×70mm 110×110mm 70X70mm,110×110mm (optional) |
110×110mm 140×140mm 110X110mm,140×140mm (optional) |
|
Marking speed |
≤7000mm/s |
≤7000mm/s |
|
minimum line width |
0.05mm |
0.05mm |
|
Repeated precision |
±0.003mm |
±0.003mm |
|
Cooling system |
air-cooled |
air-cooled |
|
Power supply |
AC220V/50HZ |
AC220V/50HZ |
|
power consumption |
0.5KW |
0.8KW |
Dimension |
1000mm×620mm×1360mm |
1000mm×620mm×1360mm |
Materials: wood products, paper, cloth, leather, organic glass, acrylic, epoxy resin, unsaturated polyester resin and other non-metallic materials
Industry: gifts, furniture, leather ,cloth, advertising signs, model making, food packaging, electronic components, pharmaceutical packaging, printing plate, nameplate, shell. etc.

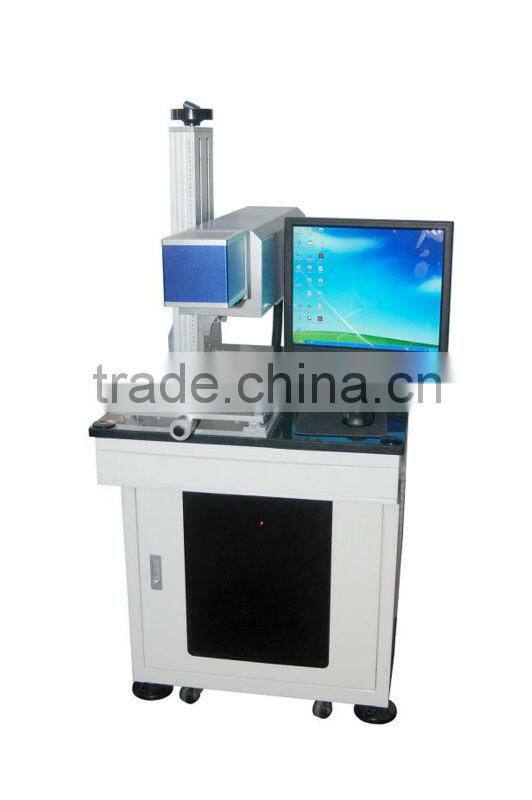

CO2 laser marking machine:

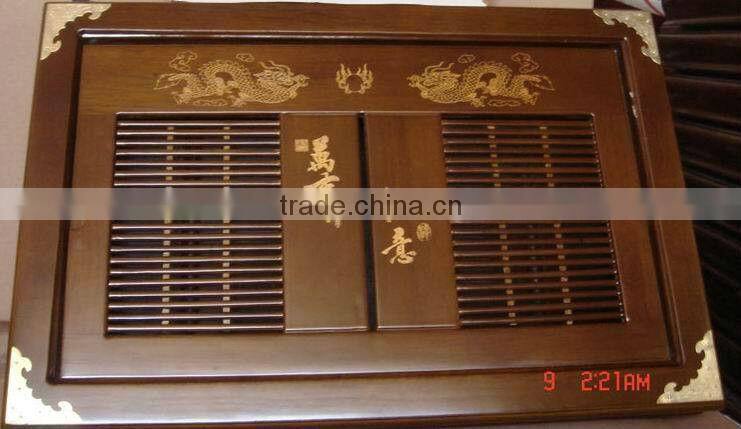

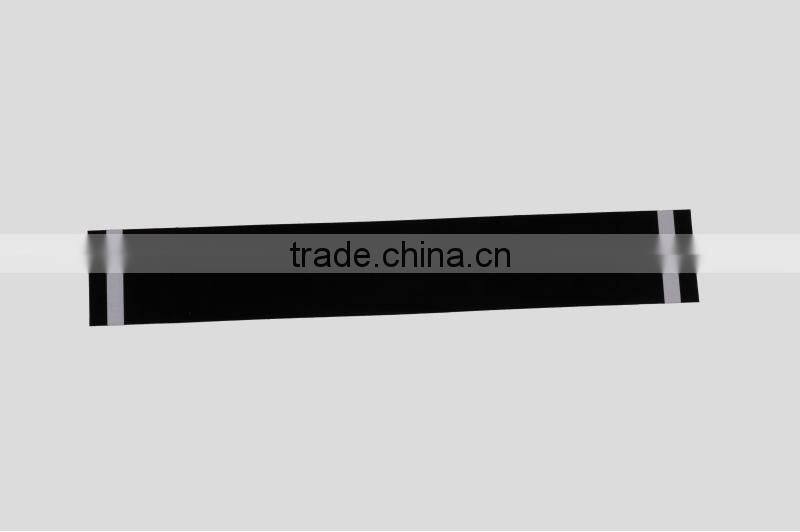

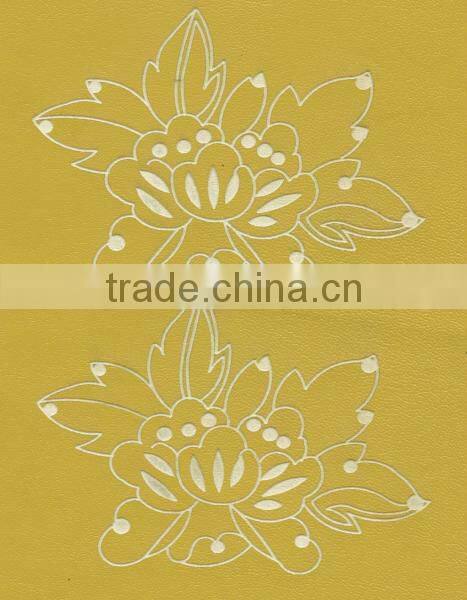

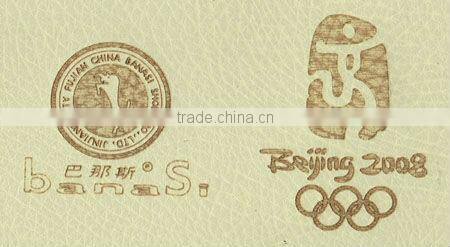

Marking Sample:
