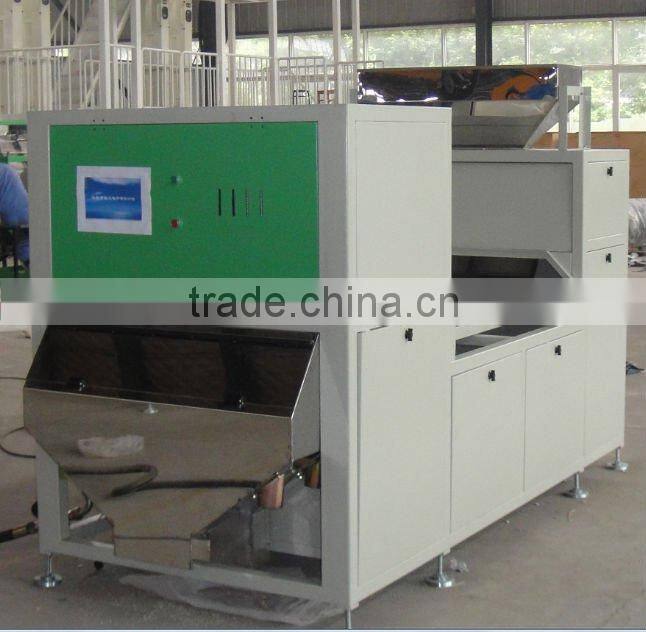

Home > Products > Seafood material color sorter > shrimp color sorting machine Shimp Color Sorting Machinary Shimp Processing Machines
shrimp color sorting machine Shimp Color Sorting Machinary Shimp Processing Machines
- 50 Case / Cases per Month
- Shanghai port
- T/T PayPal
Product Details
Condition: | New | Type: | Other, Sorting machine, Belt-type, unique double layers design | Automatic Grade: | Automatic |
Production Capacity: | 50sets per month | Place of Origin: | Anhui, China | Brand Name: | AJL |
Model Number: | AL2K1C8-256 | Voltage: | 220V/50Hz, 220V | Power(W): | 2.0KW |
Dimension(L*W*H): | 3080*1820*2150MM | Weight: | 1350KG | Certification: | CE |
Warranty: | 1 year, 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Product Advantage
- Adopt higher-resolution chromatic CCD sensor, separate red, green, blue, gray and many different colors respectively.
- Belt type, avoid the jumping in traditional chute-type color sorter, and increase the output.
- With world-class optics, high-definition within 0.07 mm2, could identify subtle color and minimal defects.
- Unique double layer belt-type design, increase the accuracy and could finish all the processing procedure at the same time.
- High-speed parallel data processing chip, real-time and efficient image acquisition and processing system, greatly improving the efficiency of color sorters.
- Convenient computer operating system could save many different sorting mode for clients in order to suit different materials.
Product Features
- High-Definition and high-sensitivity chromatic CCD image sensor, together with industrial wide-angle lens for accurate recognition;
- Adopt the international first-class optical lens; the articulation up within 0.07 mm2 can recognise a subtle chromatism and tiny flaws.
- By using high-speed parallel data processing chip, real-time efficient image acquisition and processing system, greatly improving the color separator working efficiency.High quality image processing algorithm:
- Adopt international advanced image processing technology, can effectively identify small to 0.1 mm of tiny impurities, color choose higher accuracy, color choose than lower brought out.
- Convenient computer operating system, could save many different sorting mode for clients in order to suit different materials.
- Unique LED lighting system, Equipped with LED light source, and to ensure the high-definition image quality, can meet 1000 kinds of color separation, identify color changes.
- Fan self-adaptive working temperature, ensure color separator in the high temperature environment also can work normally.
- The incomparable eliminate accuracy, more perfectly sorting out finished with a defective; high resolution, big material nozzle; High frequency, long durability and long service life.
- Easy for clients to install in factory. Unique double layer belt-type design could finish all the processing procedure at one time, and only need one elevator.
Product Show
Product Reference
Type | A421C8-256 |
Channels | 256 |
Output(t/h) | 1.0-2.0 |
Sorting accuracy (%) | >99.98 |
Optimized carryover(bad :good) | >8:1 |
Voltage (V) | ~220(50Hz) |
Power of main machine (kW) | 2.0 |
Air Pressure (MPa) | 0.6~0.8 |
Dimension(L*W*H)(mm) | 3080*1820*2150 |
Weight (kg) | 1350 |

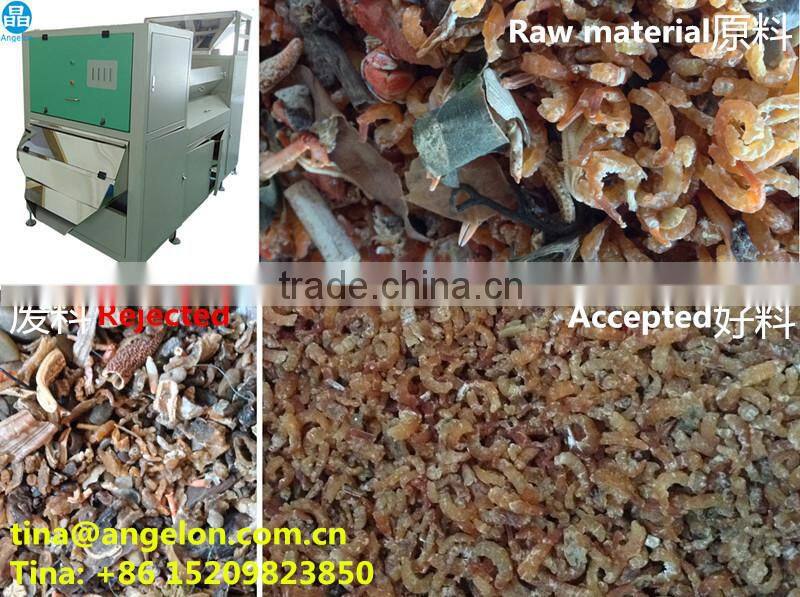

Shimp Color Sorting Showcase
Comparison of Raw Material&Accepted&Rejected
Comparison of Accepted&Rejected
Raw Material
Accepted
Rejected
