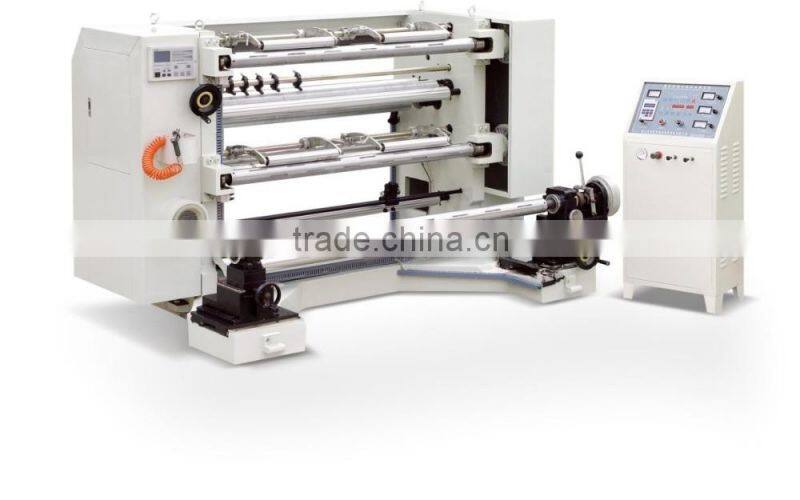

Help CenterHigh Speed Slitting & Rewinding Machine
Related Products
-
Series Vertical Automatic Slitting&rewinding MachineNegotiableMOQ: 1 Set -
Self Adhesive Paper Slitting MachineNegotiableMOQ: 1 Set
-
Roll Paper Slitting & Rewinding MachineNegotiableMOQ: 1 Set
-
High-precise Fully Automatic Slitting MachineNegotiableMOQ: 1 Set
-
Automatic Plastic Bag Cutting Machine For Shopping Bag & Garbage BagUS$ 1,000 - 20,000MOQ: 1 Set
Specifications
1: Suitable for converting industry
2: Automatic
3: High speed : 230m/ min
APPLICATION:
This machine is suitable for BOPP, PET, PVC. PE, A luminum foil and paper material etc.slitting and rewinding. It integrates advanced mechanical, electric, optical and pneumatic technology and components. This machine has been proved to be of high performance such as high speed, high stability, easy operation and high slitting meatness. It is a kind of idea machine for slitting.
PERFORMANCE AND FEATURES:
1)The whole machine is controlled by PLC system. It can set working parameters via touch screen as per the slitting requirement. LCD screen disply and moniter the working status. The control system has the function such as start buffer, loose proof and meter counter etc, and it is very easy for operation.
2: Introduce automatice tension control system for unwinding , keep the unwinding tension constant. It is also can controlled by taper control according to slitting requirement system for Edge position control, track edge or track line,automatically ensures the correct position of the runing material.
3:Shaft less pneumatic clutch for unwinding roll loading and hydraulic pressure lift utility.
4: Main drive and rewinding section is driven by two vector control motor separately.Rewinding tension is controlled by PLC system according to the preset parameters and rewinding diameter as per slitting requirement. The control method is automatic digital taper.
5: The rewinding roller is air differential shaft, slip force can be adjusted automatically to accommodate thickness variety of the material for multi-roller slitting.
SPECIFICATION:
| Type | G1300B |
| Thickness of material | 0.012-0.15mm |
| Max.unwinding width | 1300MM |
| Max.unwinding diameter | Φ700MM |
| Width of final roll | 50-700MM |
| Max.rewinding diameter | Φ480MM |
| Internal core diameter | Φ76MM OR 152MM |
| Max.Mechanical speed | 400M/MIN |
| Max. slitting & rewinding speed | 350M/MIN |
| Total power | 12KW |
| weight of machine | 3600KG |
| overall dimension (L*W*H) | 2000*3200*1700MM |
If you are interested in our machine .Pls feel free to contact with me :
Zhejiang Fangya Machinery Co.,Ltd
Add : xindong road.Dongshan Town.Ruian City .Zhejiang
M.T:+86-13958840603
Whatsapp:+86-13958840603
Direct Line: +86-577-65881657
Wechat : windbell-
Website:
