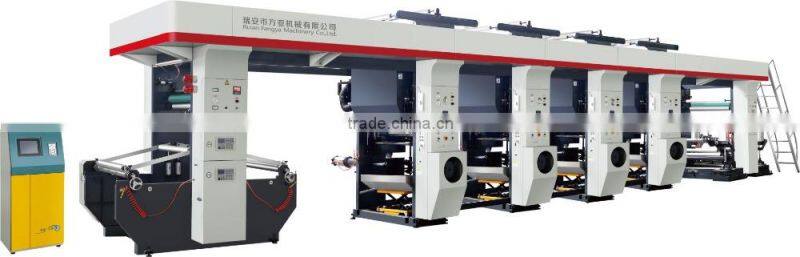

High-speed Rotogravure Printing Machine (seven Vector Motor)

Characteristics:

This is kind of machinery is suitable for multi-color gravure printing of various roll material, plastics films and paper sheets. No shaft-mounted version, especially heavy pneumatic scraper, external heating, heat drying cycle, air-cooled cooling until , centralized waste discharge, two single stasionfor unwinding and rewinding, main motor frequency speed regulating device that it ensure stable tension, accuracy register, high efficiency , reasonable operation are available

Note:

The extra option to match according to the clients’ demand: three-motor or seven-motor tension synchronous contro system, obverse and inverse double-side  computerized register mechanism can be added and can increase drying heat source including electricity, steam heat transfer oil, natural  gas , etc.

Technical Specification

Feature :

1.       Unwinding two single station, air shaft, dual automaticdischarge tension, optical correction.

2.       Rewinding two single station, air shaft, rolling torque motor. Dual automatic rewinding tension

3.       With shaft hand cap type plate, oil-immersed sealing highprecision gear box transmission.

4.       Dual axle three party a adjustable super-heavy pneumatic scarper, string of momentum ±6mm

5.       Guide rail type double cylinder embossing.

6.       Ink to be automatic cycle

7.       Drying equipment is circular hot air chamber.

8.       Air cooling device .

9.       Concentrated exhaust device.

10.   Computer register system can be added.

11.   Still image system can be added

12.   Obverse and inverse double-side printing device can be added.

13.   The printing group number can be fixed according to clients’ requirements.

 14.The rewinding and unwinding diameter size and obverse and inverse.
