Specifications
1.Factory Price2.The Width of Laminating film: 1150mm
3.The Speed of Laminating Film:1-30m/min
Name: Laminating Machine

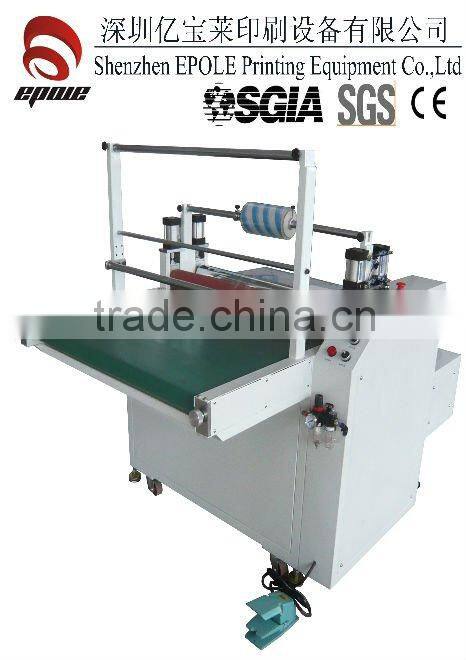

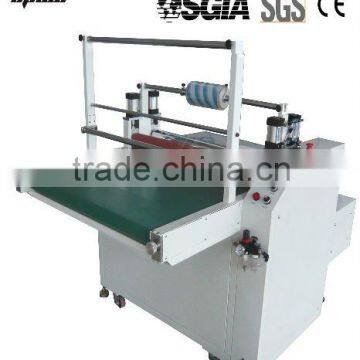

Introduction of FM-C Series Laminating Machine
FM-C Series Roll to Roll Laminating Machine is designed for roll materials; it has these characters of beautiful appearance, less floor area, light weight, simple operation and quick speed. It adjusts the speed with frequency converter; it is equipped with temperature controller and the function of feeding material. You can choose single-side or double-side laminating functions and double deck laminating membrane one time. It is widely used in touch screen, food box, metal plate, circuit board, Optical film, glass and high-tech electronics industry; After laminating, the products is waterproof, durable, clear and has a strong stereo sense;
Application:
It is widely used in touch screen, food box, metal plate, circuit board, Optical film, glass and high-tech electronics industry;
Main Features of FM-C Series Laminating Machine:
1. Use big rubber roller, press evenly, the top roller is made from chromium;
2. Control temperature automatically, you can set the temperature separately;
3. Adopting frequency converter to adjust the speed stably and quickly;
4. You can choose coiled material or sheet-fed laminating function;
5. It has the function of moving forward and backward. You can make the product reverse when it is needed;
6. Adjust pneumatically and freely;
7. It has these functions of dividing and collecting release paper and winding the products;
Technical Parameters:
Model |
FM-C900-90A |
FM-C1000-100A |
FM-C1200-100A |
The Diameter of Rubber Roller(mm) |
90 |
100 |
100 |
The length of Rubber Roller(mm) |
900 |
1000 |
1200 |
The Width of Laminating Film (mm) |
850 |
950 |
1150 |
The Speed of Laminating Film(m/min) |
0-28 |
1-30 |
1-30 |
Power(V) |
220/380 |
220/380 |
220/380 |
Motor Power(V) |
750+60 |
750+90 |
1100+120 |
Electric Heating Power (W) |
1200 |
1200 |
1500 |
The Thickness of Laminating Film(mm) |
2 |
2 |
2 |
Weight(KG) |
275 |
340 |
420 |
Size(mm) (L*W*H) |
1750*1310*1370 |
1750*1420*1400 |
1950*1620*1400 |
