Raisins Color Sorter Getting Rid of Bad Raisins by Color Differences +0086 18010879708

Raisins Color Sorter Getting Rid of Bad Raisins by Color Differences +0086 18010879708 thumbnail-1
Raisins Color Sorter Getting Rid of Bad Raisins by Color Differences +0086 18010879708 photo-1
US$ 20,000 - 48,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
AJL
Contact Supplier Request Quote Chat Now
Hefei Angelon Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Anhui, China
Brand Name AJL
Model Number AL1K2C8-128
Type Other, Sorter, belt-type
Voltage 220V/50Hz, 220V
Power(W) 3.0KW
Weight 950KG
Dimension(L*W*H) 2730*1820*1580mm
Certification CE ISO
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

                                  Raisins Color Sorter Getting Rid of Bad Raisins by Color Differences +0086 18010879708              Raisins Color Sorter Getting Rid of Bad Raisins by Color Differences +0086 18010879708







  1. Adopt higher-resolution chromatic CCD sensor, separate red, green, blue, gray and many different colors respectively.
  2. Belt –type design avoid the material jumping in traditional chute-type color sorter, and increase the output.
  3. With world-class optics, high-definition within 0.07 mm2 could identify subtle color and minimal defects.
  4. Unique double layer belt-type design, increase the accuracy and could finish all the processing procedure at the same time.
  5. High-speed parallel data processing chip, real-time and efficient image acquisition and processing system, greatly improving the efficiency of color sorters.
  6. Convenient computer operating system could save many different sorting mode for clients in order to suit different materials.

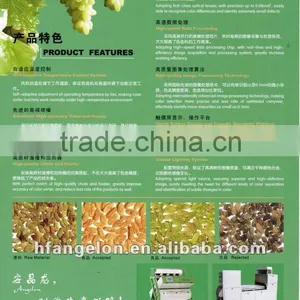

Product features:

  • High-Definition and high-sensitivity chromatic CCD image sensor, together with industrial wide-angle lens for accurate recognition;
  • Adopt the international first-class optical lens; the articulation up within 0.07 mm2 can recognize a subtle chromatic and tiny flaws.
  • By using high-speed parallel data processing chip, real-time efficient image acquisition and processing system, greatly improving the color separator working efficiency. High quality image processing algorithm:
  • Adopt international advanced image processing technology, can effectively identify small to 0.1 mm of tiny impurities, color choose higher accuracy, color choose than lower brought out.
  • Convenient computer operating system, could save many different sorting mode for clients in order to suit different materials.
  • Unique LED lighting system, Equipped with LED light source, and to ensure the high-definition image quality, can meet 1000 kinds of color separation, identify color changes.
  • Fan self-adaptive working temperature, ensure color separator in the high temperature environment also can work normally.
  • The incomparable eliminate accuracy, more perfectly sorting out finished with a defective; high resolution, big material nozzle; High frequency, long durability and long service life.
  • Easy for clients to install in factory. Unique double layer belt-type design could finish all the processing procedure at one time, and only need one elevator.

Type



AL1K2C8-128/256

Channels



128/256

Output(t/h)



2-4

Sorting accuracy (%)



>99.98

Optimized carryover(bad :good)



>8/1

Voltage (V)



~220(50Hz)

Power of main machine (kW)



2.0

Air Pressure (MPa)



0.6~0.8

Dimension(L*W*H)(mm)



2730*1820*1580

Weight (kg)



950



Note: The above properties of color sorting of peanuts (2% impurity), for example, specific indicators for material, size, impurity content varies.
