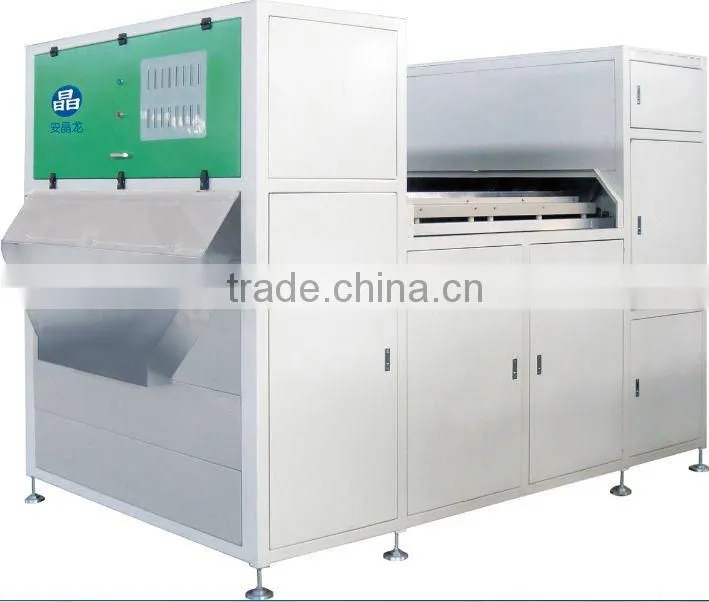

Coffee Bean Color Sorter Coffee Beans Sorting Machines Coffee Beans Sorting Machinary

US$ 20,000 - 40,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Anhui, China

Brand Name:

AJL

Model Number:

AL1K2C4-64

Hefei Angelon Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Anhui, China

Brand Name AJL

Model Number AL1K2C4-64

Type Other, Coffee Beans, belt-type, double layers design

Voltage 220V/50Hz, 220V

Power(W) 2.0KW

Weight 950KG

Dimension(L*W*H) 2730*1820*2150mm

Certification CE

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Adopt higher-resolution chromatic CCD sensor, separate red, green, blue, gray and many different colors respectively.
Belt type, avoid the jumping in traditional chute-type color sorter, and increase the output.
With world-class optics, high-definition within 0.07 mm2, could identify subtle color and minimal defects.
Unique double layer belt-type design, increase the accuracy and could finish all the processing procedure at the same time.
High-speed parallel data processing chip, real-time and efficient image acquisition and processing system, greatly improving the efficiency of color sorters.
Convenient computer operating system could save many different sorting mode for clients in order to suit different materials.

Product features:

High-Definition and high-sensitivity chromatic CCD image sensor, together with industrial wide-angle lens for accurate recognition;
Adopt the international first-class optical lens; the articulation up within 0.07 mm2 can recognise a subtle chromatism and tiny flaws.
By using high-speed parallel data processing chip, real-time efficient image acquisition and processing system, greatly improving the color separator working efficiency.High quality image processing algorithm:
Adopt international advanced image processing technology, can effectively identify small to 0.1 mm of tiny impurities, color choose higher accuracy, color choose than lower brought out.
Convenient computer operating system, could save many different sorting mode for clients in order to suit different materials.
Unique LED lighting system, Equipped with LED light source, and to ensure the high-definition image quality, can meet 1000 kinds of color separation, identify color changes.
Fan self-adaptive working temperature, ensure color separator in the high temperature environment also can work normally.
The incomparable eliminate accuracy, more perfectly sorting out finished with a defective; high resolution, big material nozzle; High frequency, long durability and long service life.
Easy for clients to install in factory. Unique double layer belt-type design could finish all the processing procedure at one time, and only need one elevator.

*Type*		*AL1K1C2-256*
*Channels*		64
*Output(t/h)*		*1-3*
*Sorting accuracy (%)*		*>99.98*
*Optimized carryover(bad :good)*		*>8/1*
*Voltage (V)*		*~220(50Hz)*
*Power of main machine (kW)*		*2.0*
*Air Pressure (MPa)*		*0.6~0.8*
**Dimension(LWH)(mm)**		**273018201800**
*Weight (kg)*		*700*
