Factory Direct Sales Aluminum Waterproof Distribution Enclosures
Product Pictures
Product Description
* 12gauge steel with solid steel, fully welded corners
* External sides, covers and doors are 16 or 14 gauge steel
* Standard door bars increase strength and rigidity and allow for an extra mounting surface
* PU gasket provides a water-tight, dust-tight seal against moisture and contaminants
* Galvanized full subpanel
* Ral7030 7032 or 7035 powder paint inside and out
*Ip65 & NEMA 4X
* We can modifying and customizing products to your specifications

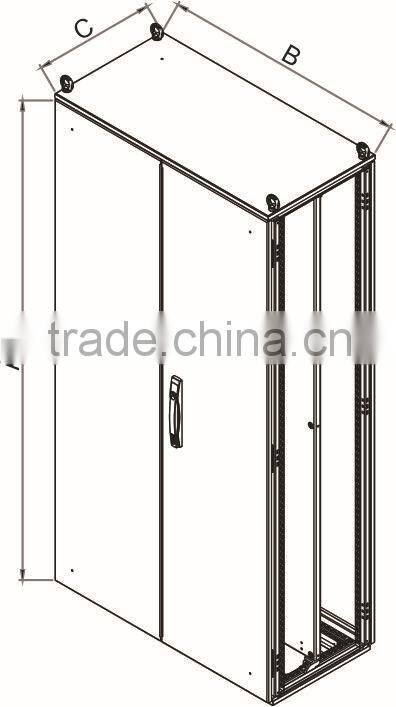

SN | A | B | C | A | B | C |
| mm | mm | mm | inch | inch | inch | |
| EB1466 | 1400 | 600 | 600 | 55.12 | 23.62 | 23.62 |
| EB1485 | 1400 | 800 | 500 | 55.12 | 31.5 | 19.69 |
| EB16126 | 1600 | 1200 | 600 | 62.99 | 47.24 | 23.62 |
| EB1666 | 1600 | 600 | 600 | 62.99 | 23.62 | 23.62 |
| EB1668 | 1600 | 600 | 800 | 62.99 | 23.62 | 31.5 |
| EB1686 | 1600 | 800 | 600 | 62.99 | 31.5 | 23.62 |
| EB1688 | 1600 | 800 | 800 | 62.99 | 31.5 | 31.5 |
| EB18105 | 1800 | 1000 | 500 | 70.87 | 39.37 | 19.69 |
| EB18106 | 1800 | 1000 | 600 | 70.88 | 39.37 | 23.62 |
| EB18108 | 1800 | 1000 | 800 | 70.87 | 39.37 | 31.5 |
| EB18124 | 1800 | 1200 | 400 | 70.87 | 47.24 | 15.75 |
| EB18125 | 1800 | 1200 | 500 | 70.87 | 47.24 | 19.69 |
| EB18126 | 1800 | 1200 | 600 | 70.87 | 47.24 | 23.62 |
| EB18128 | 1800 | 1200 | 800 | 70.87 | 47.24 | 31.5 |
| EB20105 | 2000 | 1000 | 500 | 78.75 | 39.37 | 19.69 |
| EB20106 | 2000 | 1000 | 600 | 70.88 | 39.37 | 23.62 |
| EB20108 | 2000 | 1000 | 800 | 78.75 | 39.37 | 31.5 |
| EB20124 | 2000 | 1200 | 400 | 78.75 | 47.24 | 15.75 |
| EB20125 | 2000 | 1200 | 500 | 78.75 | 47.24 | 19.69 |
| EB20126 | 2000 | 1200 | 600 | 78.75 | 47.24 | 23.62 |
| EB20128 | 2000 | 1200 | 800 | 78.75 | 47.24 | 31.5 |
| EB20105 | 2200 | 1000 | 500 | 86.61 | 39.37 | 19.69 |
| EB20106 | 2200 | 1000 | 600 | 70.88 | 39.37 | 23.62 |
| EB20108 | 2200 | 1000 | 800 | 86.61 | 39.37 | 31.5 |
| EB20124 | 2200 | 1200 | 400 | 86.61 | 47.24 | 15.75 |
| EB20125 | 2200 | 1200 | 500 | 86.61 | 47.24 | 19.69 |
| EB20126 | 2200 | 1200 | 600 | 86.61 | 47.24 | 23.62 |
| EB20128 | 2200 | 1200 | 800 | 86.61 | 47.24 | 31.5 |
Can be customized following your specifications.
SQUAREBOX ELECTRICAL EQUIPMENT LIMITED
Packing & Shipping
Packing way:
Unit set packaged by carton box or raw packaged by pallet.
Or you can provide us your requirements.
Shipping:
We can do with you by FOB, CIF, C&F, DAP, DDU etc. we have our forwarder and it is acceptable with your defined forwarder.
