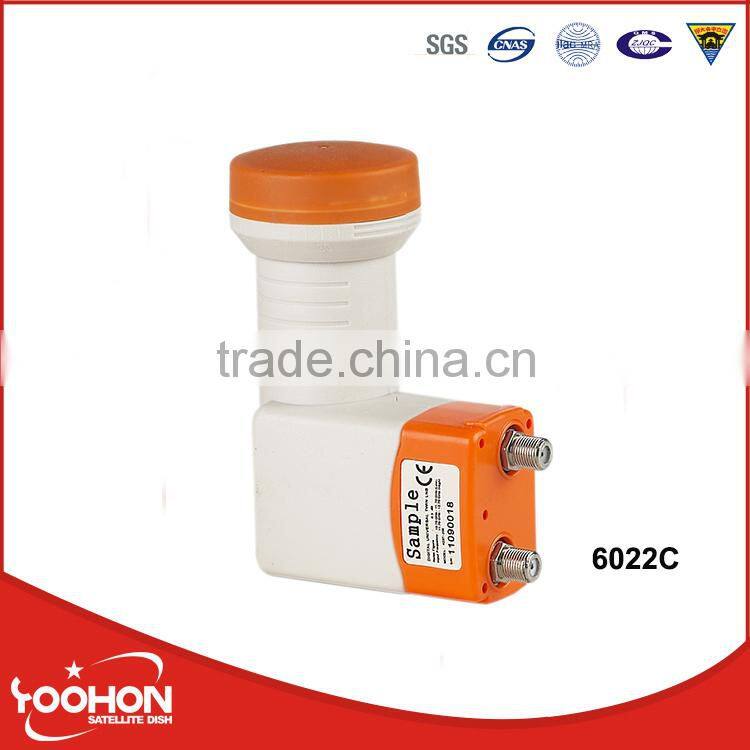

Help CenterUniversal KU Band Twin LNB With CE Certificate
Related Products
-
Universal KU Band LNB Single With CE CertificateUS$ 1 - 2MOQ: 1000 Units -
Universal KU Band Single LNBUS$ 1 - 2MOQ: 1000 Units
-
Universal KU Band Quad LNB With CE CertificateUS$ 1 - 2MOQ: 1000 Units
-
Ku Band Twin Output LNB 6022CUS$ 1 - 3MOQ: 1000 Pieces
-
Ku Band Single Output LNB 6012BUS$ 1 - 3MOQ: 1000 Pieces
General Specifications:
Input freq. Range:
Low band: 10.70 to 11.80GHz
High band: 11.70 to 12.75GHz
L. O. Frequency:
Low band: 9.75GHz (1MHz @ 25 degree Celsius)
High band: 10.60GHz (1MHz @ 25 degree Celsius)
L. O. Stability:
Low band: 2MHz (-40 to +70 degree Celsius)
High band: 2MHz (-40 to +70 degree Celsius)
Output freq. Range:
Low band: 950 to 2050MHz
High band: 1100 to 2150MHz
Control signals:
Low band: Ca or Cb (see below)
High band: Ca and CC or Cb
Noise figure: 0.5dB typ.
Conversion gain: 58dB typ.
Input VSWR: 2.5: 1
Output VSWR: 2.0: 1 (max. )
Output connector: F-female connector
Output impedance: 75 ohms typ.
Cross polar isolation: 20dB (min. )
Image rejection: 45dB
Phase noise:
-50dBc @ 1KHz
-75dBc @ 10KHz
-95dBc @ 100KHz
Supply voltage:
Ca: 11.5 to 14.0V (vertical polarization)
13 VDC typ. Cb: 16.0 to 19.0V (horizontal polarization)
18 VDC typ.
CC: Continuous 22KHz
Operating temperature: -40 to +70 degree Celsius
Storage temperature: -40 to +80 degree Celsius
Relative humidity: 0% to 95%
OEM/ODM Service
(1) OEM/ODM project is welcome
(2) The MOQ for customized products is 1000 units or even more.
(3) We always respect our customers'copyright or business secrets
Other Details:
1. Samples policy
For Samll quantity samples,we offer without charges, But shipping and taxes paid by the buyer.
2. Our main market
Latin America, Africa, Mid East, Asia.
3. About payment
T/T,L/C,and other Payment can be discussed.
