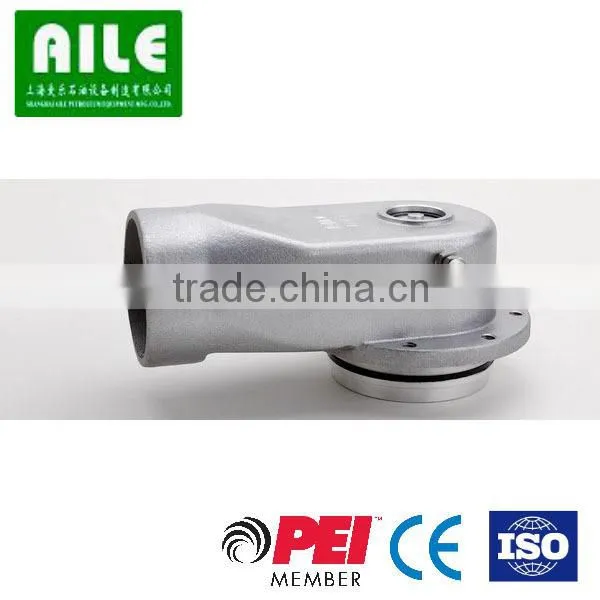

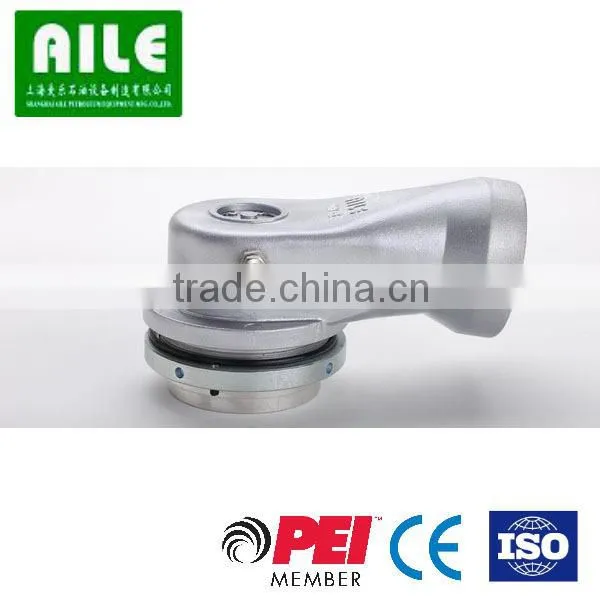

Vapor Recovery Valve

Specifications

Vapor Recovery Valve: 3' high-capacity design provides superior flow for faster loading and unloading.

 Vapor Recovery Valve:

1)      Air operated vapor vents are used to connect tank compartments to the rollover rail vapor recovery system, effectively sealing the tank compartments when transporting, then opening to allow vapor flow during loading and unloading.

2)      Handle fuel vapors safely and efficiently with this lightweight aluminum vapor valve. The air-operated valve allows fast vapor flow during loading and unloading.

3)      The poppet is designed to open into the tank, preventing accidental leakage from product surges or from a tank truck rollover.

4)      Easy-to-use air line connections are located outside the compartment for convenient installation and maintenance.



5)      Features:

a.  4high-capacity design provides superior flow for faster loading and unloading

b.  Multiple mounting options, stainless steel spring, 1/4NPT air lineholes

c.  Minimum operating pressure, 60 PSI; units begin to sequence at 50 PSI and    begin to exhaust at 40PSI

d.  For use with 16 manhole,4TTMA bolt pattern mounting

e.  For use with16manhole, threaded ring mounting

f.  Safe inward opening valve, easy maintenance of  viton ORing seals

g.  Built in sequencing feature allows control of emergency valve if desired
