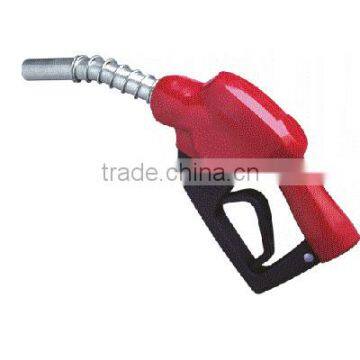

Fueling Nozzle A2111-15AL
USD $1 - $25
/ Piece
90 Pieces(Min.Order)
- 1000 Piece / Pieces per Month
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | AILE | |
| Model Number | A2111-15AL |
Product Description
Specifications
A2111-15AL Fueling Nozzle(Series of Automatic Nozzle)Helps improve efficiency
Offers long life and reliable service
A2111-15AL Fueling Nozzle( Series of Automatic Nozzle)
1) Helps improve efficiency
2) Offers long life and reliable service3) Materials:
a) Body: cast aluminum
b) Seals: buna-N, biton
c) Main stem seals: viton cased oil seal
d) Main stem: stainless steel
4) Ordering specifications:
a) A2111-15A:
i) Inlet size: BSP1", NPT1"
ii) Outlet diameter: 1"
iii) Flow rate: 0-45L/m (13/16")
b) A2111-15AP:
i) Inlet size: BSP1", NPT1"
ii) Outlet diameter: 13/16"
iii) Flow rate: 0-60L/m (15/16")
c) A2111-15AL:
i) Inlet size: BSP1", NPT1"
ii) Outlet diameter: 15/16"
iii) Flow rate: 0-90L/m (1")
5) Working pressure: 0.18MPa
6) For diesel, kerosene and all kinds of gasoline sevice
7) Dual poppet valve- easy to open nozzles against high inlet pressure
8) Accurate flow control allows customer to top off their tank to the exact amount they want and it's easy to stop gasoline flow precisely
9) Low profile aluminum body: light weight, easier to handle, provides an attractive, image enhancing appearance
10) High pressure casting technique reduces foaming and static electricity
11) Easily replaced spout: simply removes two screws
12) Spout kits available
13) Concealed hold-open rack gives easy setting of flow rate
14) Full hand insulator protects both nozzle and vehicle, and insulates users' hands
15) Available colors: color chart on inside back cover
16) Selective splash guard
17) 100% factory tested
18) Warnings:
a) Using foreign objects to hold open
b) Automatic nozzles could result in
c) Failure to shut-off and personal injury
19) Weight: 1.50kg/pc
20) Replacement parts:
a) Key 1: spout 13/16", 15/16", 1"
b) Key 2: full hand insulator
c) Key 3: lever guard
d) Key 4: lever
e) Key 5: gear plate
f) Key 6: diaphragm assembly
g) Key 7: main valve assembly
