Spiral Plate Heat Exchanger

Spiral Plate Heat Exchanger thumbnail-1
Spiral Plate Heat Exchanger thumbnail-2
Spiral Plate Heat Exchanger thumbnail-3
Spiral Plate Heat Exchanger thumbnail-4
Spiral Plate Heat Exchanger photo-1
Spiral Plate Heat Exchanger photo-2
Spiral Plate Heat Exchanger photo-3
Spiral Plate Heat Exchanger photo-4
US$ 1 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
SY
Contact Supplier Request Quote Chat Now
Jiangsu Shuo Yun Petrochemical Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name SY
Model Number As per design
Structure Tube Heat Exchanger
Liquid Flow Rate As per design
Maximum Working Pressure 50 bars
Voltage As per design
Weight As per design
Dimension(L*W*H) As per design
Power(W) As per design
Certification CE, Other, CE, ASME
Warranty 2 years
After-sales Service Provided Engineers available to service machinery overseas
spiral plate heat exchanger
The heat exchangers can be designed and manufactured all as per Customers' drawings or requirement.



Product overview

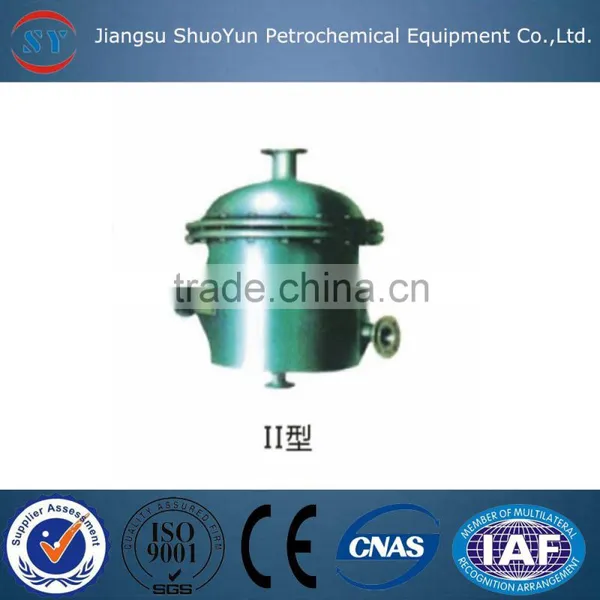

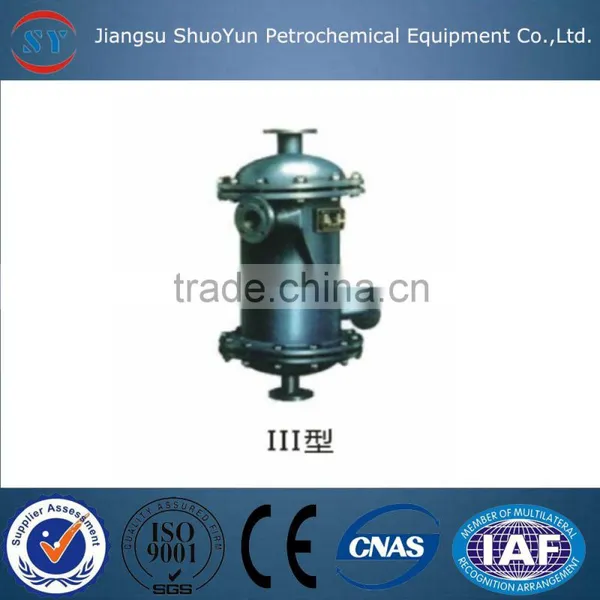

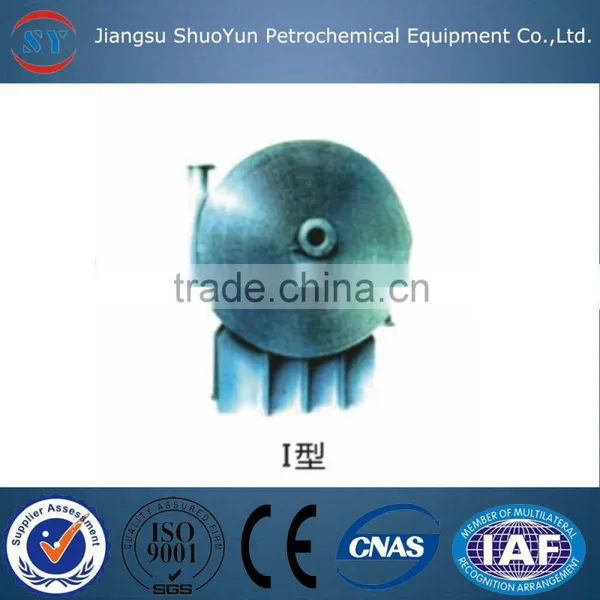

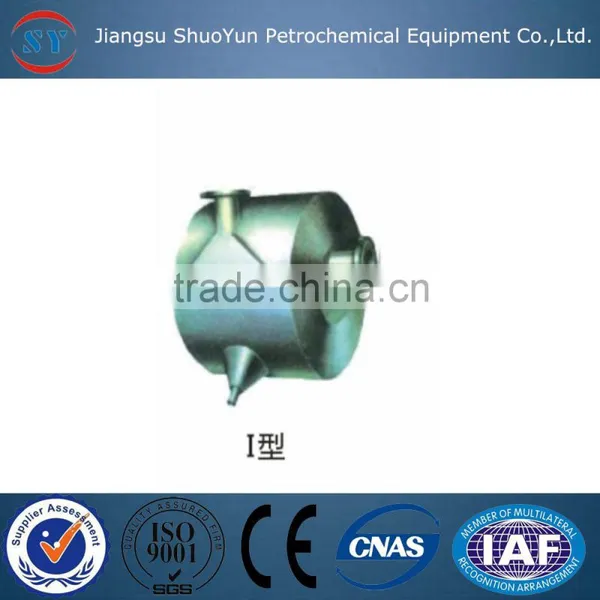

Spiral plate heat exchanger is a highly efficient heat transfer equipment for steam-steam, gas-liquid, liquid-liquid heat exchanger. It is suitable for chemical, petroleum, pharmaceutical, food, light industry, textile, metallurgy, steel rolling, coking and other industries. Form of the structure can be divided into non-removable(Ⅰtype) spiral plate and removable (Ⅱtype, Ⅲ type) spiral plate heat exchanger.

spiral plate heat exchanger

spiral plate heat exchanger

The main technical parameters of the reference table

nominal heat transfer area(m2)

channel spacing(mm)

calculate the heat transfer area(m2)

handling capacity(m3/h)

takeover nominal diameter(Dg)

model

weight(kg)



Ⅰ6B



Ⅰ16B

1

6

1.0

3.89

40

Ⅰ6,Ⅰ16B1-0.2/300-6

44

50

2

6

2.1

3.89

40

Ⅰ6,Ⅰ16B2-0.2/400-6

78

85

4

6

4.4

8.2

50

Ⅰ6,Ⅰ16B4-0.4/400-6

131

135

10

4.5

17.3

80

Ⅰ6,Ⅰ16B4-0.5/500-10

129

133

10

4.8

13.7

70

Ⅰ6,Ⅰ16B4-0.4/500-10

161

205

8

6

7.3

8.21

50

Ⅰ6,Ⅰ16B8-0.4/500-6

212

215

10

7.85

17.3

80

Ⅰ6,Ⅰ16B8-0.5/550-6

235

273

10

7.3

20.90

80

Ⅰ6,Ⅰ16B8-0.5/500-10

237

275

10

6

11.1

8.21

50

Ⅰ6,Ⅰ16B10-0.5/550-6

295

355

10

11.5

17.3

80

Ⅰ6,Ⅰ16B10-0.5/650-10

237

275

10

11.2

20.90

80

Ⅰ6,Ⅰ16B10-0.6/600-10

305

395

15

6

16.9

12.54

70

Ⅰ6,Ⅰ16B15-0.6/600-6

415

490

10

14.72

17.3

80

Ⅰ6,Ⅰ16B15-0.5/760-10

405

575

10

15

28.1

80

Ⅰ6,Ⅰ16B15-0.75/650-10

400

570

14

15.6

39.3

100

Ⅰ6,Ⅰ16B15-0.75/750-14

505

680

20

6

21.7

8.21

50

Ⅰ6,Ⅰ16B20-0.6/700-6

540

710

10

21.0

20.90

80

Ⅰ6,Ⅰ16B20-0.6/800-10

555

735

14

20.9

39.30

100

Ⅰ6,Ⅰ16B20-0.75/850-14

660

830

25

10

26.6

29.90

80

Ⅰ6,Ⅰ16B25-0.6/900-10

610

950

14

26.9

39.20

100

Ⅰ6,Ⅰ16B25-1.0/850-14

720

1060

30

10

28.2

28.10

100

Ⅰ6,Ⅰ16B30-1.0/800-10

750

1180

14

32.2

39.20

100

Ⅰ6,Ⅰ16B30-1.0/900-14

980

1370

40

10

45.4

35.30

100

Ⅰ6,Ⅰ16B40-1.0/900-10

1130

1515

14

40.2

19.4

125

Ⅰ6,Ⅰ16B40-1.0/1000-14

1200

1630

50

10

53.9

35.3

100

Ⅰ6,Ⅰ16B50-1.0/1000-14

1360

1755

60

10

61.05

35.3

100

Ⅰ6,Ⅰ16B60-1.0/1100-10

1920

2112

14

60.08

49.40

125

Ⅰ6,Ⅰ16B60-1.0/1200-14

1200

1630

80

10

81.83

35.3

100

Ⅰ6,Ⅰ16B80-1.0/1200-10

2560

2816

14

80.9

49.40

125

Ⅰ6,Ⅰ16B80-1.0/1400-14

2667

1934

100

10

101.9

35.3

100

Ⅰ6,Ⅰ16B100-1.0/1300-10

3200

3520

14

100.06

49.40

125

Ⅰ6,Ⅰ16B100-1.0/1500-14

3333

3666

120

10

115.5

35.3

100

Ⅰ6,Ⅰ16B120-1.0/1500-10

3870

4257

14

119.0

49.40

125

Ⅰ6,Ⅰ16B120-1.0/1700-14

4020

4422

130

14

128.8

49.4

125

Ⅰ6,Ⅰ16B130-1.5/1500-14

4241

4665

18

129.09

63.5

150

Ⅰ6,Ⅰ16B130-1.5/1630-18

4462

4908
