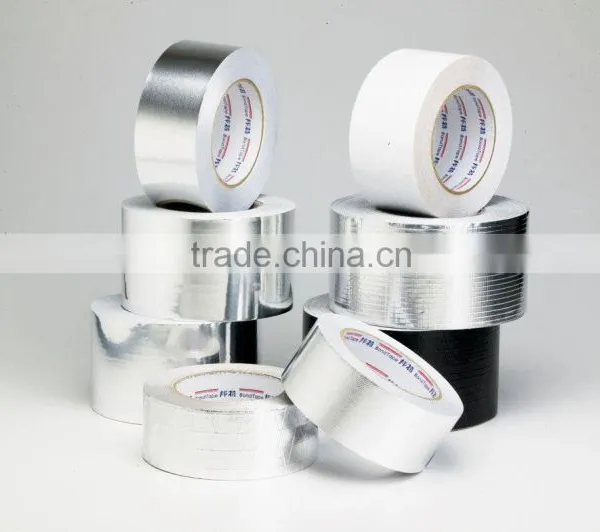

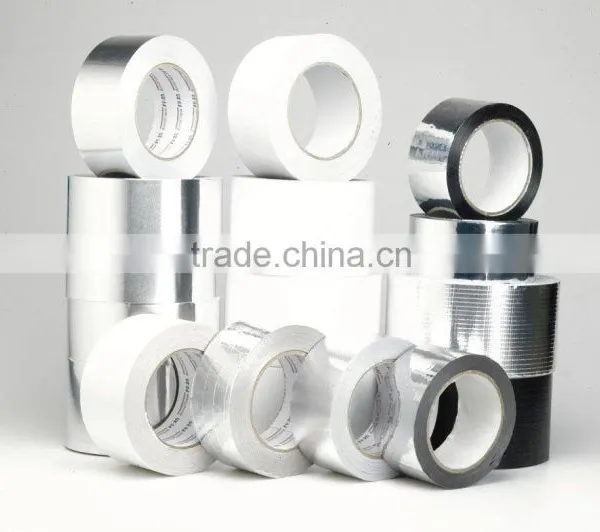

BondTape AF3025R
FR Grade Class O Aluminum Foil Tape
PRODUCT DESCRIPTION
A 30 micron (1.2 mil) high tensile strength aluminum foil backing, combined with a high performance flame -retardant solvent acrylic adhesive, protected by an easy-release silicone release paper.
FEATURES
• Aluminum backing provides excellent reflection of both heat and light.
• High quality adhesive with super strong adhesion and holding power offers reliable and durable Foil-Scrim-Kraft Facing joints and seams sealing in HVAC ductwork application.
• Low moisture vapor transmission rate makes BondTape AF3025R an excellent vapor barrier.
• Service Temperature range from -30° to +120°C (-22° to +248°F).
TYPICAL PHYSICAL PROPERTIES
PROPERTIES |
METRIC |
ENGLISH |
TEST METHOD |
Backing Thickness |
30 Micron |
1.2 Mil |
PSTC-133 / ASTM D 3652 |
Total Thickness |
70 Micron |
2.8 Mil |
PSTC-133 / ASTM D 3652 |
Adhesion to Steel |
20 N/25mm |
72 Oz./In. |
PSTC-101 / ASTM D 3330 |
Tack Rolling Ball |
15 cm |
6.0 In. |
PSTC-6 / ASTM D 3121 |
Tensile Strength |
45 N/25mm |
10.2 Lb/In |
PSTC-131 / ASTM D 3759 |
Elongation |
%. |
3.0 |
PSTC-131 / ASTM D 3759 |
Service Temperature |
-30 ~ +120 °C |
-22 ~ +248 °F |
------------ |
Fire Rating |
25 / 50 & Class O |
25 / 50 & Class O |
UL 723 & BS476 Pt. 6 & 7 |
TYPICAL APPLICATIONS: HVAC industry for joining and sealing Foil-Scrim-Kraft Facing laminated fiberglass blanket / duct board joints and seams; joining and sealing flexible air duct seams and connections. May also be used for other industrial uses requiring a tape with these characteristics and benefits.
PRODUCT FORM & SIZE AVAILABLE
Cut Roll: 48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4").
Log Roll: 1200mm x 45 / 50m Jumbo Roll: 1200mm x 1200m / 1350m
STORAGE & SHELF LIFE: 12 months when stored at 21°C (70°F) / 50% relative humidity out of direct sunlight.
SURFACE PREPARATION: It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied must be clean, dry, free of grease, oil or other contaminants.
PRODUCT USE: It is essential that the user evaluate the BondTape product to determine whether it is fit for a particular purpose and user’s method of application. Good results will be obtained when applied to a clean, dry surface with a suitable pressure on BondTape product between +10 ~ +40°C (+50 ~ +105 °F).
LIMITED WARRANTY & LIMITED REMEDY: Your exclusive remedy & BondTape obligation shall be, at BondTape’s option, to replace or repair the BondTape product or refund the purchase price of the BondTape product.
