NMRV040 Wrom Gear Box Speed Reducer Machine
US$ 21.2 - 22.2
/ Set
1 Set(Min. Order)
- Ningbo or Shanghai
- T/T Credit Card
You May Like
-
NMRV110 Motovario Like RV Series Aluminium Alloy Worm Speed Reducer Screw Worm
-
NMRV110 Motovario Like RV Series Aluminium Alloy Worm Speed Reducer Screw Worm
-
NMRV090 Motovario Like RV Series Aluminium Alloy Worm Speed Reducer Screw Worm
-
NMRV075 Motovario Like RV Series Aluminium Alloy Worm Speed Reducer Screw Worm
-
NMRV063 Motovario Like RV Series Aluminium Alloy Worm Speed Reducer Screw Worm
-
NMRV063 Motovario Like RV Series Aluminium Alloy Worm Speed Reducer
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Chenxin | |
| Model Number | NMRV040 | Gearing Arrangement | Worm | |
| Output Torque | 8~~54NM | Rated Power | 0.06kw~~0.37kw | |
| Input Speed | 1400rpm | Output Speed | 14~~280rpm |
Product Description

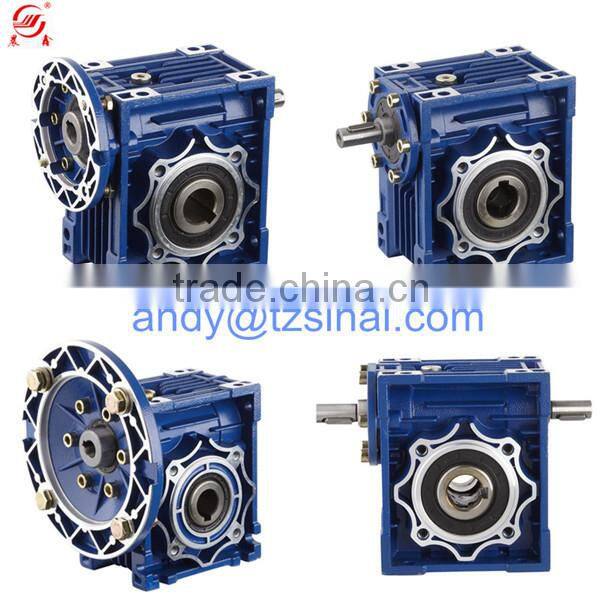

MNRV040 Worm Gearbox Speed Reducer Machine
Features
1.Wide transmission rate, strong output torque
2.Compact mechanical structure, light weight, small volume&Good heat-dissipating
3.Smooth operation with lower noise or vibration
4.Easy mounting, free linking, high efficiency
5. PERFECT SUBSTITUDE FOR MOTOVARIO AND BONFIGLIOLI PRODUCTS
Applications
Wide range of application,including light industry of food &beverage, Cement,
package,construction material,chemicals and etc.
Performance parameter for RV series worm gear speed reducer
Performance parameter for RV series worm gear speed reducer
| Motor power | Model | speed ratio | output speed | output toruqe |
0.55kw 1400rpm | NMRV090 | 40 | 35rpm | 114.0N.M |
| NMRV090 | 50 | 28rpm | 137.0N.M | |
| NMRV090 | 60 | 24rpm | 158.0N.M | |
| NMRV090 | 80 | 18rpm | 189.0N.M | |
| NMRV090 | 100 | 14rpm | 221.0N.M | |
0.75kw 1400rpm | NMRV090 | 40 | 35rpm | 156.0N.M |
| NMRV090 | 50 | 28rpm | 182.0N.M | |
| NMRV090 | 60 | 24rpm | 209.0N.M | |
| NMRV090 | 80 | 18rpm | 258.0N.M | |
| NMRV090 | 100 | 14rpm | 302.0N.M | |
1.1kw 1400rpm | NMRV090 | 20 | 70rpm | 128.0N.M |
| NMRV090 | 25 | 56rpm | 156.0N.M | |
| NMRV090 | 30 | 47rpm | 178.0N.M | |
| NMRV090 | 40 | 35rpm | 222.0N.M | |
| NMRV090 | 50 | 28rpm | 266.0N.M | |
| NMRV090 | 60 | 24rpm | 306.0N.M | |
| NMRV090 | 80 | 18rpm | 384.0N.M | |
2.2kw 1400rpm | NMRV090 | 7.5 | 186rpm | 100.0N.M |
| NMRV090 | 10 | 140rpm | 132.0N.M | |
| NMRV090 | 15 | 94rpm | 191.0N.M | |
| NMRV090 | 20 | 70rpm | 249.0N.M | |
| NMRV090 | 25 | 56rpm | 304.0N.M | |
| NMRV090 | 30 | 47rpm | 351.0N.M | |
| NMRV090 | 40 | 35rpm | 456.0N.M | |
3.0kw 1400rpm | NMRV090 | 7.5 | 186rpm | 137.0N.M |
| NMRV090 | 10 | 140rpm | 180.0N.M | |
| NMRV090 | 15 | 94rpm | 261.0N.M | |
| NMRV090 | 20 | 70rpm | 340.0N.M | |
| NMRV090 | 25 | 56rpm | 414.0N.M | |
| NMRV090 | 30 | 47rpm | 497.0N.M | |
4.0kw 1400rpm | NMRV090 | 7.5 | 186rpm | 182.0N.M |
| NMRV090 | 10 | 140rpm | 240.0N.M | |
| NMRV090 | 15 | 94rpm | 348.0N.M | |
| NMRV090 | 20 | 70rpm | 453.0N.M |
Technical data:
| Model | RV025 030 040 050 063 075 090 110 130 150 |
| Single unit versions | NMRV - fitted for motor flanged coupling, NRV - with input shaft, NMRV-E motor flanged coupling with worm extension shaft, NRV-E with double extension worm shaft, |
| Power | 0.06----15KW |
| Single unit reduction ratio | 1:5 7.5 10 15 20 25 30 40 50 60 80 100 |
| Output torque | 2.6---1195N.M |
| Worm shaft | 20CrMnTi with carburizing and quenching.The hardness of surface is 56-62HRC with carbonized layer 0.5-0.8mm |
| Worm wheel | worm mandrel is HT250,and worm ring gear,ZQSn10-1 |
