Product Description

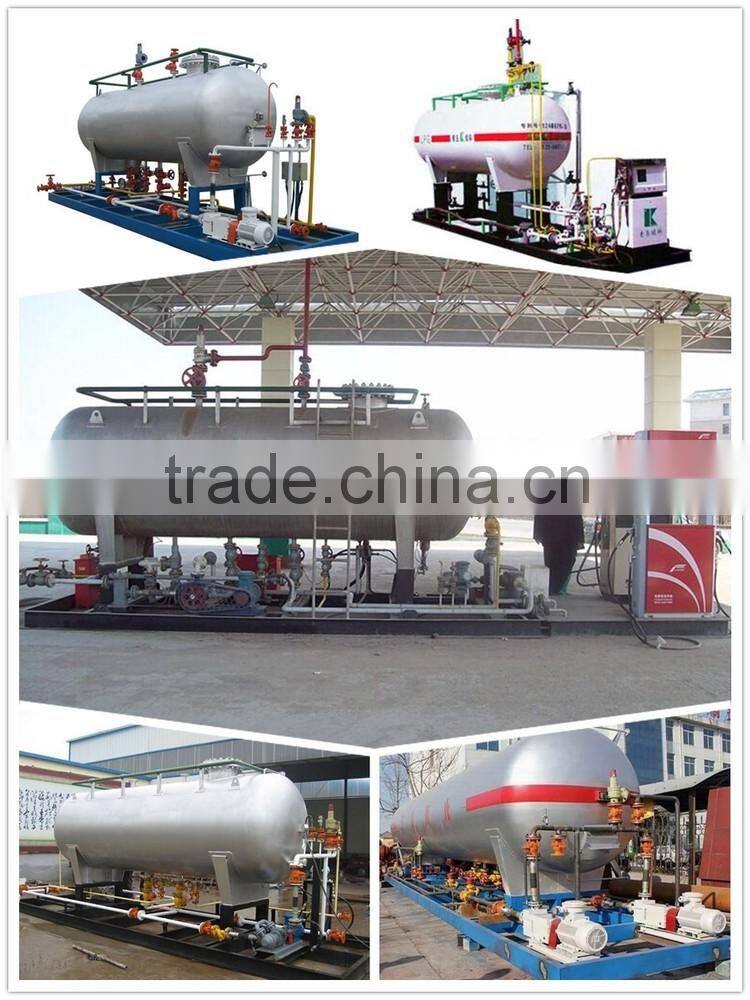

I .LPG SKID STATION
Specification
II . LPG SKID STATION SPECIFICATION
LPG Skid Station 5T / 10 CBM | |||
Volume of Tank |
10 CBM |
||
Filling Weight |
5000 kg |
||
Tank Weight |
2950 kg |
||
Thickness of Shell (mm) |
10 mm |
||
Thickness of Endplate (mm) |
10 mm |
||
Tank Diameter (mm) |
1600 mm |
||
Tank Dimensions (mm) |
5260 x 1620 x 2210 mm |
||
Material of Tank and Main Pressure Parts |
Carbon Steel Q345R |
||
Filling Medium |
Liquefied Petroleum Gas ( Propane) |
||
Design Pressure |
1.77 MPa, 17.7 Bar |
||
Corrosion Allowance |
1 mm |
||
Medium Density |
500-570 kg/ cbm |
||
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
Main parts of LPG Tank | |||
Item |
Specification |
Quantity |
|
Discharge Pipe |
DN80 |
1 |
|
Inflow Pipe |
DN80 |
1 |
|
Outlet |
DN50 |
1 |
|
Gas phase balance pipes |
DN50 |
2 |
|
Manhole |
DN500 |
1 |
|
Drain Hole |
DN50 |
1 |
|
|
Main accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge.
Filling System:
1. LPG Filling Machine for 5kg to 150kg cylinders, can printing receipt after filling.
2. 380V Filling Pump with Motor.
3. Valves for Safety: Safety Valve, Safety Reverse Valve, Pipe Safety Valve, Shock -absorbing Pipe, | |||

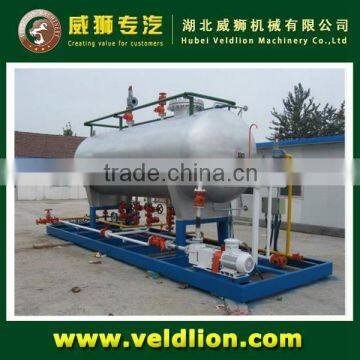

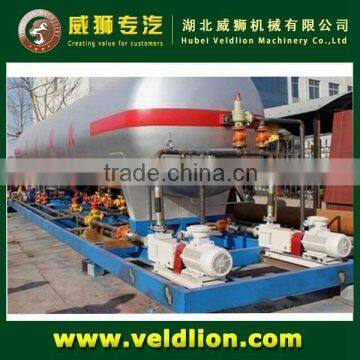

III . PRODUCT DETAILS
Company Introduce
IV. COMPANY INTRODUCE
HUBEI VELDLION MACHINERY CO., Ltd is a leading MANUFACTURER of special purpose vehicles and spare parts. Locating in the ‘Special purpose vehicles city of the world’
We specialised in produce LPG trailer for several years,we can provide all kinds of tanker trailers, like 2 axles or 3 axles, carbon steel, aluminum alloy, stainless steel material liquid tanker trailer, bulk cement tanker trailer, full trailer, tank container etc.if you want to know more about our cargo semi trailer please do not hestiate to contact me.any questions about semi trailer will be highly apperciated.
Factory View
V. FACTORY VIEW
Contact us
VI. CONTACT INFORMATION
HUBEI VELDLION MACHINERY CO., Ltd
ATTN: Eric Ke
Mobile phone: +86 18961715558
Skype: jeewins
Email: eric(at)veldlion (dot) com
Website:
