Home > Industrial Equipment & Components > Power Transmission Parts > Gearbox > UD Series Planetary Speed Variator

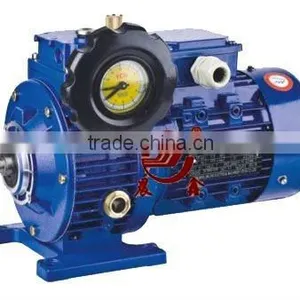

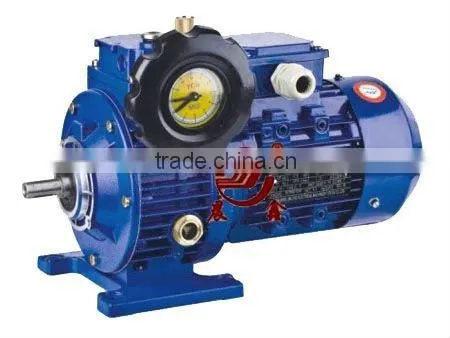

UD Series Planetary Speed Variator

Name: UD Series Planetary Speed Variator
Brand: Chen Xin
SKU: 104130655
Availability: InStock

UD Series Planetary Speed Variator thumbnail-1

UD Series Planetary Speed Variator photo-1

US$ 78 - 230 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Chen Xin

Model Number:

UDL0.18---UD7.5

Contact Supplier Request Quote Chat Now

Taizhou Sihai Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Chen Xin

Model Number UDL0.18---UD7.5

Gearing Arrangement Planetary

Output Torque 1.5---118 N.M

Rated Power 0.18---7.5kw

Input Speed 1400rpm

Output Speed 1000---200rpm

Specifications

1.Planetary mechanical speed variator
2.Body material,aluminium alloy & cast iron
3.Convenient to be mounted with gear,motor

UDLseries planetary speed variators are widely used for foodstuffs, ceramics, packing, chemicals, pharmacy, lastics, paper-making, machine-tools, communications, and all kinds of automatic lines, pipelines and assembly lines which need speed regulation, It is a good companion for your production.

Technical data
Gear unit reduction ratio	[i]	1.4 to 7.0
Output torque	[Nm]	≤118
Motor power range	[kW]	0.18 to 7.5

The design of UDL series stepless speed variator compromises the advanced technology both at home and abroad. The products include the following main characteristics:

1. High speed-regulating precision: up to 0.5-1 rotation.

2. Large speed –changing range: The speed ratio ranges from 1:1.4 to 1:7 freely.

3. High in strength and long in service life.

4. Convenient to regulate the speed.

5. Continuous in running, front-to-back in running direction, smooth in driving, stable in performance and low in noise.

6. Full in sealing and suitable for any environment.

7. Compact in structure and small in volume.

8. Made of high-quality aluminium alloy die cast into forming, good-looking in appearance, light in weight and it never gets rusty.

9. Good in adaptation: UDL series stepless speed variators can be combined with all kinds of speed reducers, as to achieve low stepless speed changing.

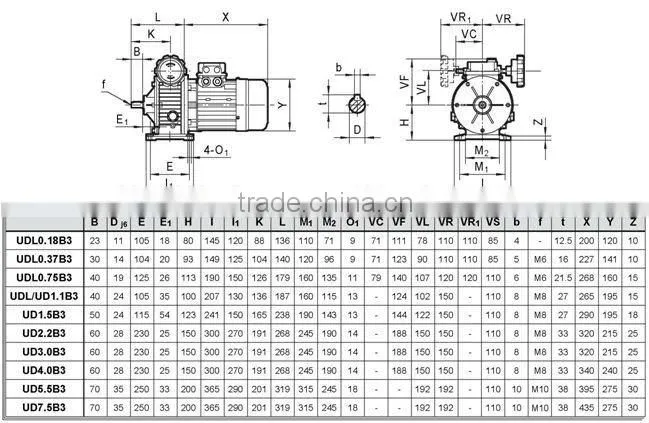

Outline Dimension
