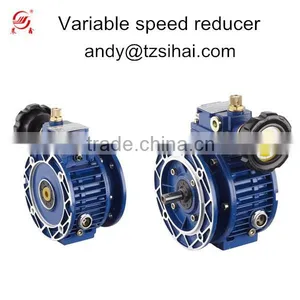

Help CenterUD(L) Variable Speed Reducer
Related Products
-
Variable Speed Reduction Gearbox With MotorUS$ 132 - 142MOQ: 1 Piece -
Mechanical Speed Variator With Variable Ratio Gear BoxUS$ 22 - 100MOQ: 1 Set
-
UDL0.18 Variable Gearbox Planetary Gear Reduction dc MotorUS$ 75 - 100MOQ: 1 Set
-
Variable Gearbox Speed Variator Planetary GearboxUS$ 97 - 107MOQ: 1 Set
-
Variable Speed Reducer UD Combined Worm Gearbox With Electric Motor Quality ChoiceUS$ 140 - 150MOQ: 1 Piece
Specifications
The design of UDL series planet cone-disk step-less speed variator compromises the advanced technology both at home and abroad.
The products include the following main characteristics:
1) High speed regulating precision,up to 0.5-1 rotation
2) Large speed changing range:the speed ratio ranges from 1:4 to 1:7 freely
3) High in strength and long in service life
4) Convenient to regulate the speed
5) Continuous in running, front to back in running direction,smooth in driving,stable in performance and low in noise
6) Full in sealing and suitable for any environment
7) Compact in structure and small in volume
8) Made of high-quality aluminium alloy diecast into forming,good surface,light in weight and it never gets rusty
9) Good in adaptation: UDL series planet cone-disk stepless speed variators can be combined with all kinds of speed reducers as to achieve low stepless speed changing
UDL series planet cone disk stepless speed variators are widely used for foodstuffs,ceramics,packing,chemicals,pharmacy,plastics,paper making, mchine-tools, transportation,and all kinds of automatic production lines,pipelines and assembly lines which need speed-regulation.it is a good companion for your production.
Basic model: UD0.18 B5
UD |
Code of planetary cone-disk stepless variator |
L |
Aluminium alloy casing,and no mark means castiron casing |
0.18 |
Relevant motor power |
B5 |
Installation position code |
Combination of gear speed reducer and basic model
UDL |
Code of planetary cone-disk stepless variator with aluminium alloy casing |
0.18 |
Relevant motor power |
2 |
Second gear speed reducer,no mark means first gear speed reducer |
C |
Code of gear speed reducer |
5 |
Speed ratio of gear speed reducer |
B5 |
Installation position code |
Speed variator Structure & principle
speed variator operation & maintenance
Parameter for UD(L) Planetary cone-disk stepless speed variator
N1=1400r/min
|
Model |
i |
N2 r/min |
M2 N.M |
0.18kw |
UDL0.18 |
1.6-8.2 |
880-170 |
1.5~3 |
Outline surface for basic model-B5
Planrtary stepless speed variator Structure and mounting position
Planrtary stepless speed variator Installation diagram for output flange
Planrtary stepless speed variator Installation diagram for torque arm
Planrtary stepless speed variator Installation diagram for output shafts AZ,GZ
Planrtary stepless speed variator Endless transmission view & name of part
