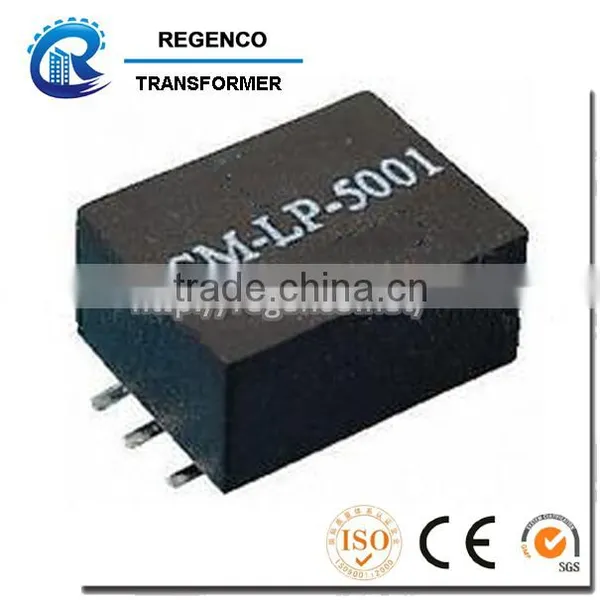

Help CenterSurface Mount Line Matching Transformers SM-LP-5001 Series
Related Products
Features
l Subminiature in SMT
l 7.36mm seated height
l Tested at 4600 Vrms, 1 minute
l Distortion of only 0.015%
l Vacuum encapsulated
l UL60950 certified
l RoHS compliant*
*For use with recommended circuit (BS6305 impedance Class A non-Speech or Class B speech)
Options
l Tape and reel is standard (500 pcs, per reel)
l Bulk packaging available for smaller quantities
l Custom design available
l Tolerance: 5% is standard, tighter tolerance available
Common Applications
l Modems (V32)
l Laptop Computer
l Telecommunications
l Instrumentation
l PCMCIA
Electrical Characteristics
Nominal Impedance: 600Ω
Turns Ratio: 1:1
Insertion Loss: 2.0dB max. at 2kHz
Frequency Response; ±0.25dB max. 200-4kHz
Return Loss: 24dB min. 200-4kHz*
Balance: 80dB min.
Distortion: -76dB max, @600Hz, -10dBm
Dielectric Strength: 4600 Vrms for 1 min.
Insulation Resistance: 100MΩ @500V
DC Resistance**
Primary: 115Ω ± 15%
Secondary: 115Ω ± 15%
Shunt Inductance: 3.8H min.
Shunt: 7500Ω min.
Leakage Inductance: 6mH type. @1kHz
Power Level: 10dBm
Operating Temperature: -20℃~+85℃
Storage Temperature: -40℃~+85℃
Terminal Plating Material: AgSn
*For use with recommended circuit (BS6305 impedance Class A non-Speech or Class B speech)
**SM-LP-5001 is symmetrical, meaning there is no real primary nor secondary winding.

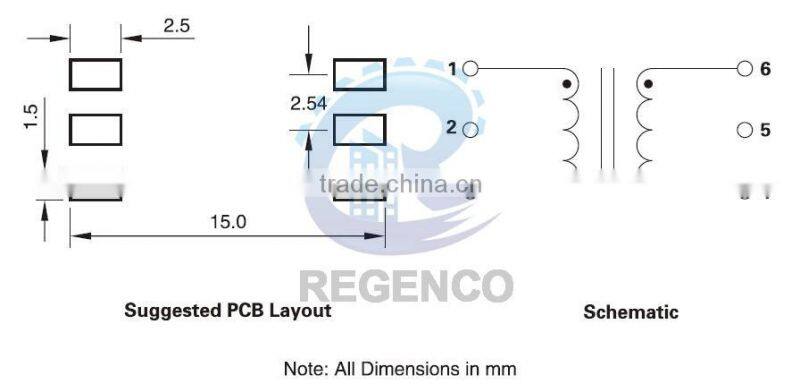

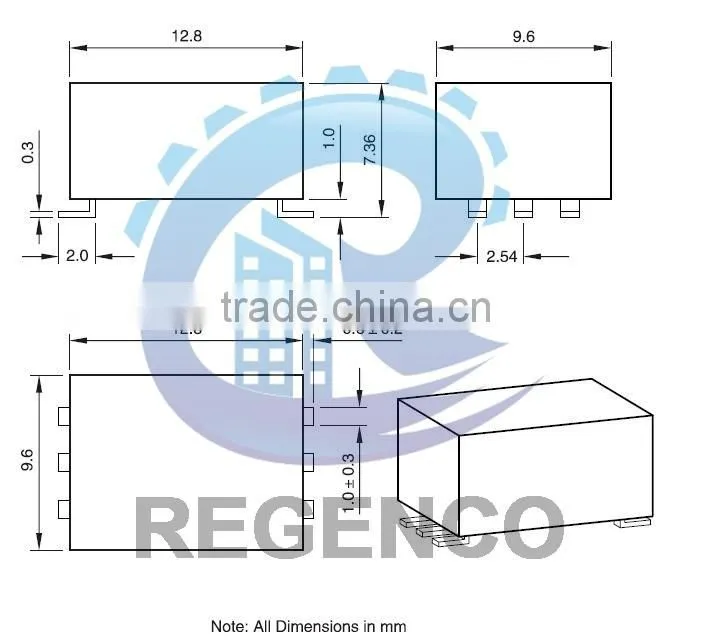

Physical Characteristics
Technical Information
Note:
- MOQ:1000PCS
- Delivery time:10-12 days or as per customer’s quantity
- Payment terms:50% deposit of total amount in advance and the rest after seeing B/L , T/T.
- Samples is free, but the fee of freight must be paid by recipient
- Port: Qingdao
- Package: As per customer’s requirements
- We will feel appreciated if you can provide the parameters of the product or the photo of the item.
- All products of the size,electrical performance can be designedaccording to customer requirement in R&D.
>>Main Products:
1. Current transformer
2. Planar Transformer
3. Encapsulated transformer
4. Toroidal transformer
5. High frequency transformer
6. Low frequency transformer
7. Other transformers, inductors etc.
<<<< The information and details of the products>>>>
>>Working
>>Application:
Switching power supplies, chargers, alarm system, TV and CRT monitor displays, UPS, VCD/DVD players, audio and visual equipment, OA machines, inverter.
>>Package
>>Mode of Transportation
Why Choose US ?
1. Professional supplier
2. Quality control
3. OEM/ODM ability
4. Professional service team, rapidly react to customers' demands, 24 hours service on line.
5. Supply ability
6. Delivery in time
7. Partners all over the world:
8. Small order acceptalbe
9. Best After-Service
