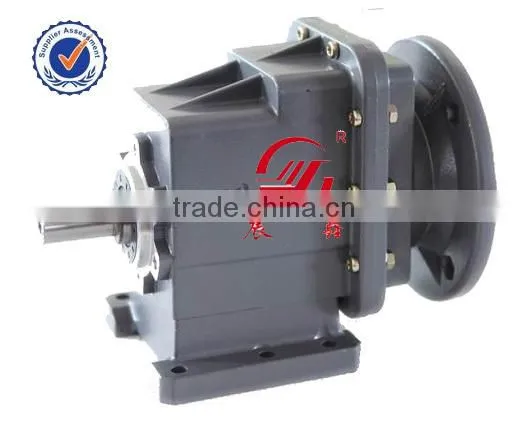

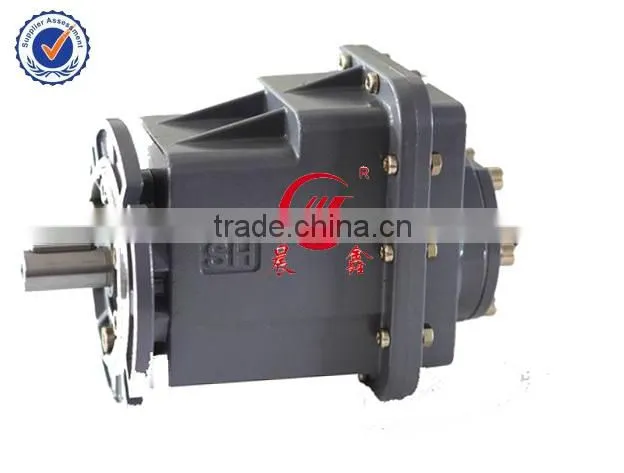

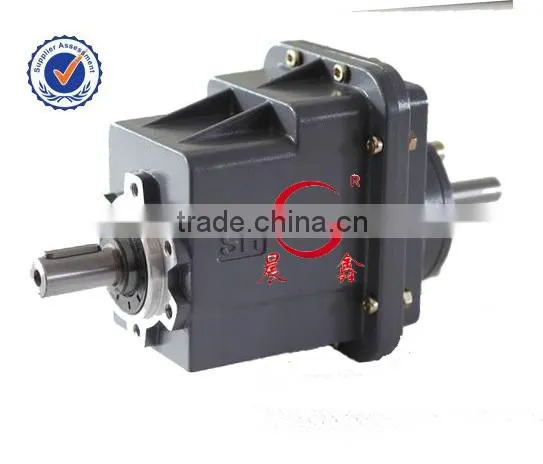

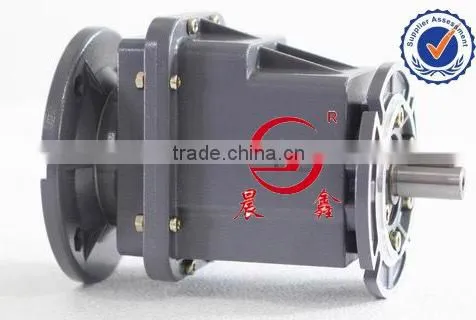

SRC01 Shaft Input Flange Mounted Helical Gears Gearbox

Name: SRC01 Shaft Input Flange Mounted Helical Gears Gearbox
Brand: Chenxin
SKU: 104129555
Availability: InStock

US$ 92 - 100 MOQ: 1 Set

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Chenxin

Model Number:

SRCF01

Taizhou Sihai Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NingBo port / Shanghai port / UPS / DHL

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Chenxin

Model Number SRCF01

Gearing Arrangement Helical

Output Torque 63N.M

Rated Power 0.18kw

Input Speed 1400rpm

Output Speed 16.9rpm

Features for SRC helical gearboxes reducers,

1.Larger output torque,stable transmission with lower noise,

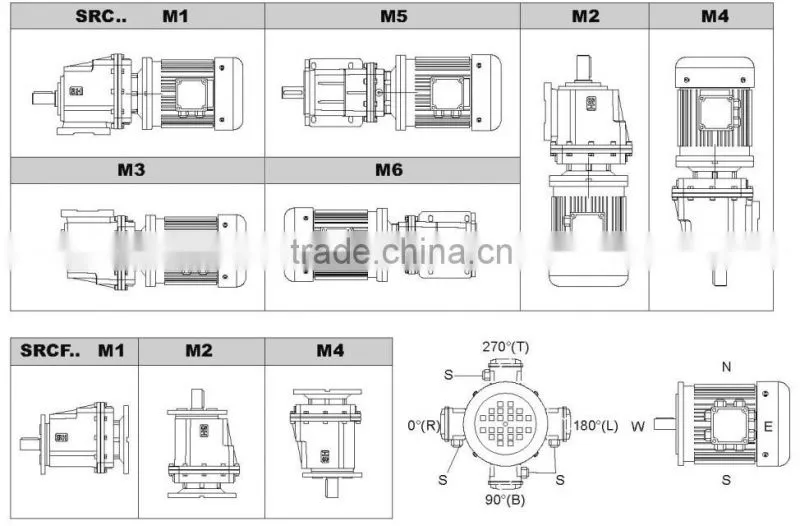

2.Ommibearing installation available,

3.Aluminium alloy diecast,

4.Customising available for flange or shaft

Important information for SRC helical gear speed reducers,

Input coupling	Flange and shaft
Output coupling	Flange and shaft
Foot mounted	Available for Motovario and Bonfiglioli foot mounted specs. The letter,B in the data sheet of foot code is for Bonfiglioli and M for Motovario
Range of reduction ratios	3.74---51.30
Motor power coupled	0.12---4KW

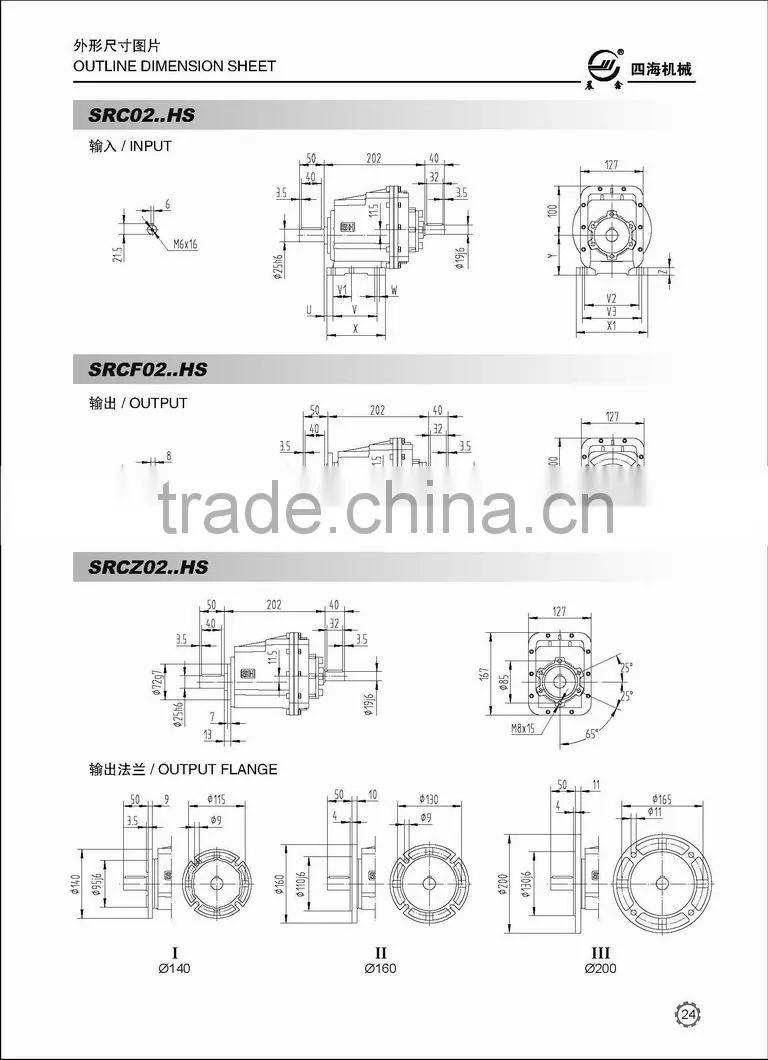

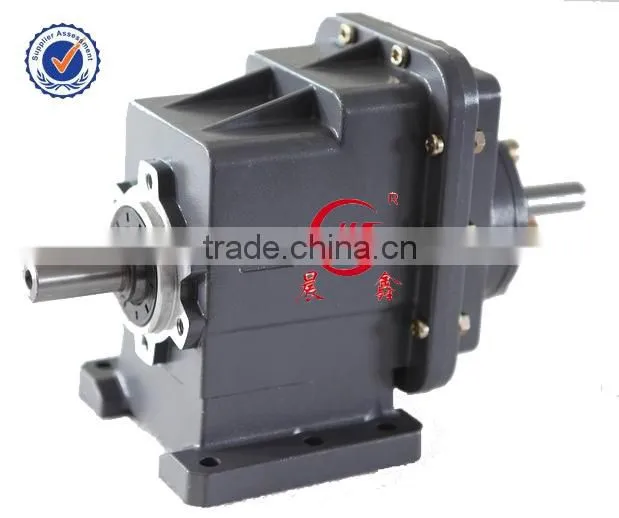

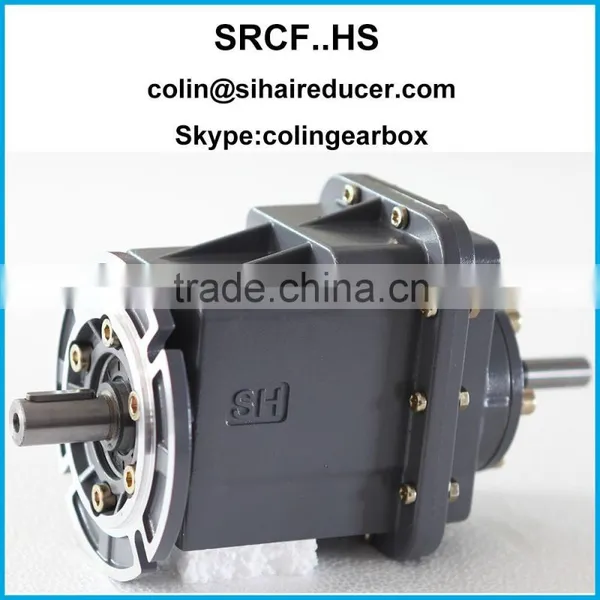

Version	1.Flange coupled,shaft output,with foot mounted,marked as SRC...P 2.Shaft coupled and output,with foot mounted,marked as SRC...HS 3.Flange coupled,shaft output,no foot mounted,marked as SRCZ...P 4.Shaft coupled and output,no foot mounted,marked as SRCZ...HS 5.Flange coupled and output,no foot mounted,marked as SRCF...P 6.Shaft coupled,flange output,no foot mounted,marked as SRCF...HS
